Summary of Contents for Modus DAP-01

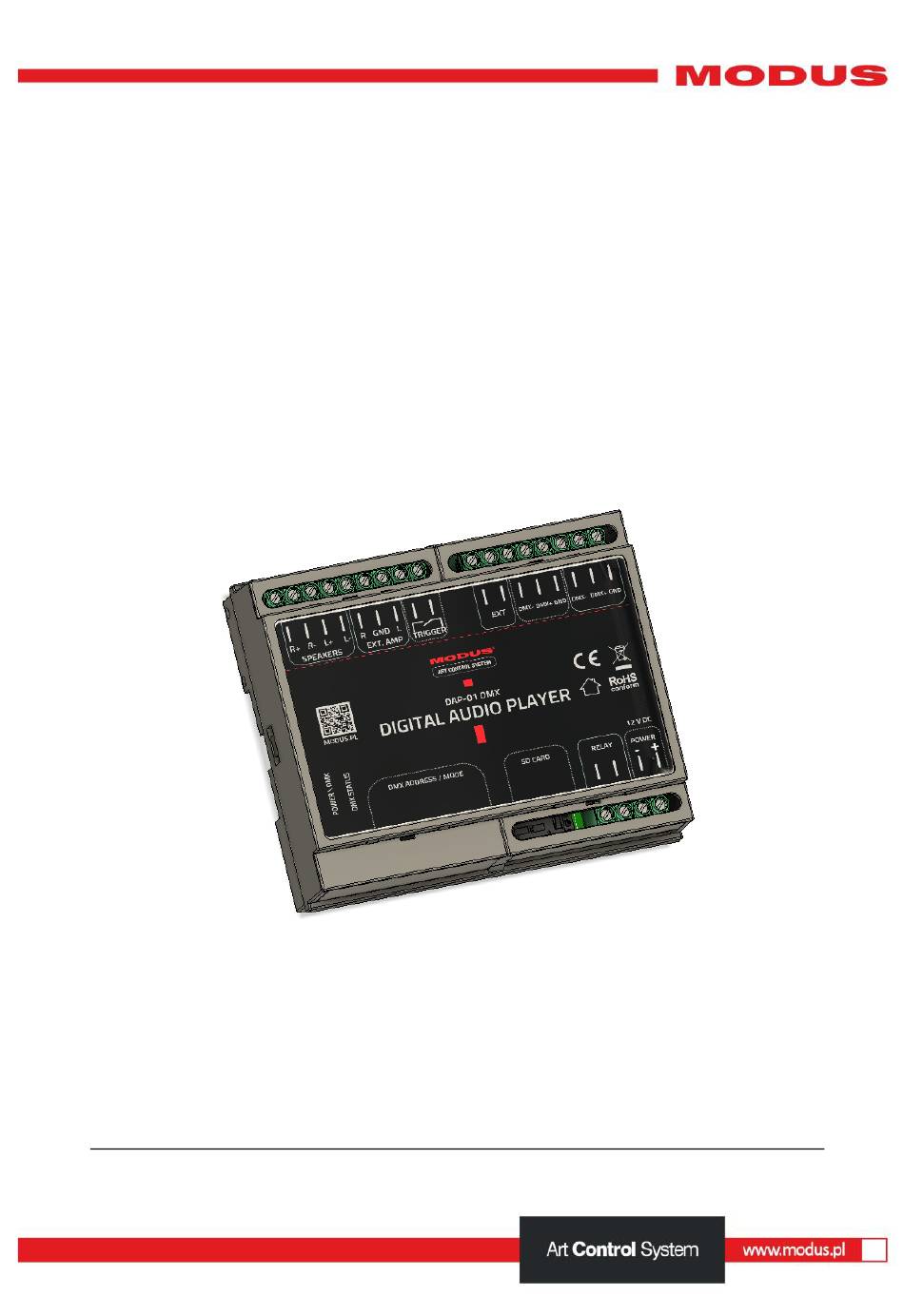

- Page 1 DAP-01 User manual DMX AUDIO PLAYER HDL: v.1.3 FW: v.1.0 DMX AUDIO PLAYER 01...
- Page 2 Thank you for purchasing our device. We make every effort to ensure the best quality of our products designed to meet your expectations. If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs.
-
Page 3: Table Of Contents
List of contents General description ..............4 Basic safety conditions ..............5 Connecting external devices ............8 Output description ..............9 Output layout................10 Catalogue and audio file structure ..........10 Relay mode selection ..............11 Device mode selection............... 12 8.1. -
Page 4: General Description
1. General description MODUS DMX Audio Player can be used to play music, voice communicates, sound effects, etc. in MP3 and WAV formats. It can play up to 255 files stored in 99 catalogues. The device is equipped with a stereophonic D-class 2x15 W... -
Page 5: Basic Safety Conditions
• player for signals with specified frequency, saved from an audio file generator. 2. Basic safety conditions MODUS DMX Audio Player has to be powered with safe 12-24 VDC voltage from dedicated power supplies, however, during installation and usage, it is essential to observe the following... - Page 6 • The controller should be installed by a person having relevant qualifications, according to the information in the manual. • The device can be connected only to stabilized voltage with loadability matching the technical parameters. • It is essential to observe and not to exceed the maximum current and voltage values for peripheral devices and receivers connected to the player.
- Page 7 The module should be powered only with the dedicated power supply offered by the manufacturer. If this is the last device in a DMX line, 120 Ohm terminator should be used. The manufacturer reserves the right to introduce modifications to the functioning and using of the device for the purpose of improving the product.
-
Page 8: Connecting External Devices
3. Connecting external devices DMX AUDIO PLAYER 01... -
Page 9: Output Description
4. Output description 1. Power connector (GND, +12-24*VDC) 2. Relay connector 3. Mini SD card slot 4. Configuration switches 5. Boot/Error indicator 6. Power/DMX indicator 7. DMX signal input/output 8. EXTERNAL OUT 9. TRIGGER input 10. External amplifier output 11. Speaker output DMX AUDIO PLAYER 01... -
Page 10: Output Layout
5. Output layout 6. Catalogue and audio file structure The SD card needs to be formatted as FAT16 or FAT32. There need to be created catalogues, in which MP3 or wav audio files will be stored. Maximum number of catalogues: 99 DMX AUDIO PLAYER 01... -
Page 11: Relay Mode Selection
Maximum number of files in a catalogue: 255 Catalogue names need to be in a two-digit format: e.g.: 01, 02, 03 … 99 File names need to start with a number and may consist of numbers only, e.g.: 001.mp3, 002.mp3, 003.wav … 255.mp3 It is also possible to maintain the original file name, then the extension should be added in the following manner: 001File name.mp3,... -
Page 12: Device Mode Selection
DIP SWITCH 12 – NO or NC relay setting Position 0: NO Switching the relay on causes shorting the contacts Position 1: NC Switching the relay on causes opening the contacts 8. Device mode selection DMX Audio Player can work in three modes: DMX, MANUAL and AUTO. - Page 13 Stop 001:127 Pause 128:191 Play 192:255 Relay switched off 000:127 DMX Relay mode Relay switched on 128:255 selection External output 000:127 switched off External output 128:255 switched on DIPSWITCH function table in DMX mode DIP SWITCH FUNCTION DMX address: 1 DMX address: 2 DMX address: 4 DMX address: 8...
-
Page 14: Connection Layout In Dmx Mode
8.1.1. Connection layout in DMX mode DMX AUDIO PLAYER 01... -
Page 15: Manual Mode
8.2. MANUAL mode In this mode, the device works as a standalone audio player. Playback is triggered with TRIGGER button in this mode. There are two playback modes to choose. Track playback without a possibility to stop Shorting the TRIGGER input will start track playback. -
Page 16: Connection Layout In Manual Mode
8.2.1. Connection layout in MANUAL mode Additional stereo amplifier Short circuit triggering input, button or motion detector Speakers 2 X 15 W PWM output for 8 ohm connecting e.g. LED lamp NO/NC relay output for connecting e.g. higher power relay Power supply 7-24 V DC DMX AUDIO PLAYER 01... -
Page 17: Auto Mode
8.3. AUTO Mode Loop playback when turned on Put the TRIGGER jumper (or hold the button) and turn the device on. All files on SD card will be played in a loop, starting from catalogue 01. The state of the button will not be checked again. -
Page 18: Connection Layout In Auto Mode
8.3.1. Connection layout in AUTO mode Speakers PWM output for 2 X 15 W connecting e.g. LED lamp 8 ohm DMX AUDIO PLAYER 01... -
Page 19: Other Uses
8.4. Other uses • time switch triggered with a button or DMX512 signal • relay output controlled with DMX512 signal • player for signals with specified frequency, saved from an audio file generator. 9. Technical parameters Power supply: - 12-24VDC / minimum 2A Supported audio file formats: MP3 11172-3 and ISO13813-3 layer3, WAV Sampling frequency: 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48... -
Page 20: Dimensions
TRIGGER connection: input starting track playback in STANDALONE mode (for connecting a button for example) DMX512: DMX512 signal input/output Relay output: NC / NO max. load 5A / 24V 10. Dimensions: PCB: DIN/TH/TS 35 casing DMX AUDIO PLAYER 01... -
Page 21: Maintenance And Repairs
Note!! Any attempt to repair the device yourself can cause irreversible damage to the device or pose other threats. 12. Contact, additional information: Mediam Sp. z o.o. www.mediam.com biuro@mediam.com www.modus.pl, biuro@modus.pl DMX AUDIO PLAYER 01... - Page 22 "Conformité Européenne" ("European Conformity"). Essential characteristics the product complies: • DAP-01: DMX Audio Player with relay - class D stereo audio amplifier with relay and trigger or DMX control. We have verified that the product complies with all relevant “essential requirements”...
