INSTALLATION
SpartanStart must be installed by qualified/licensed technician
Acquire manufacturer's wiring diagram for the air-conditioning unit.
Step
Clearly identify the supply and compressor sides of the
connections.
5

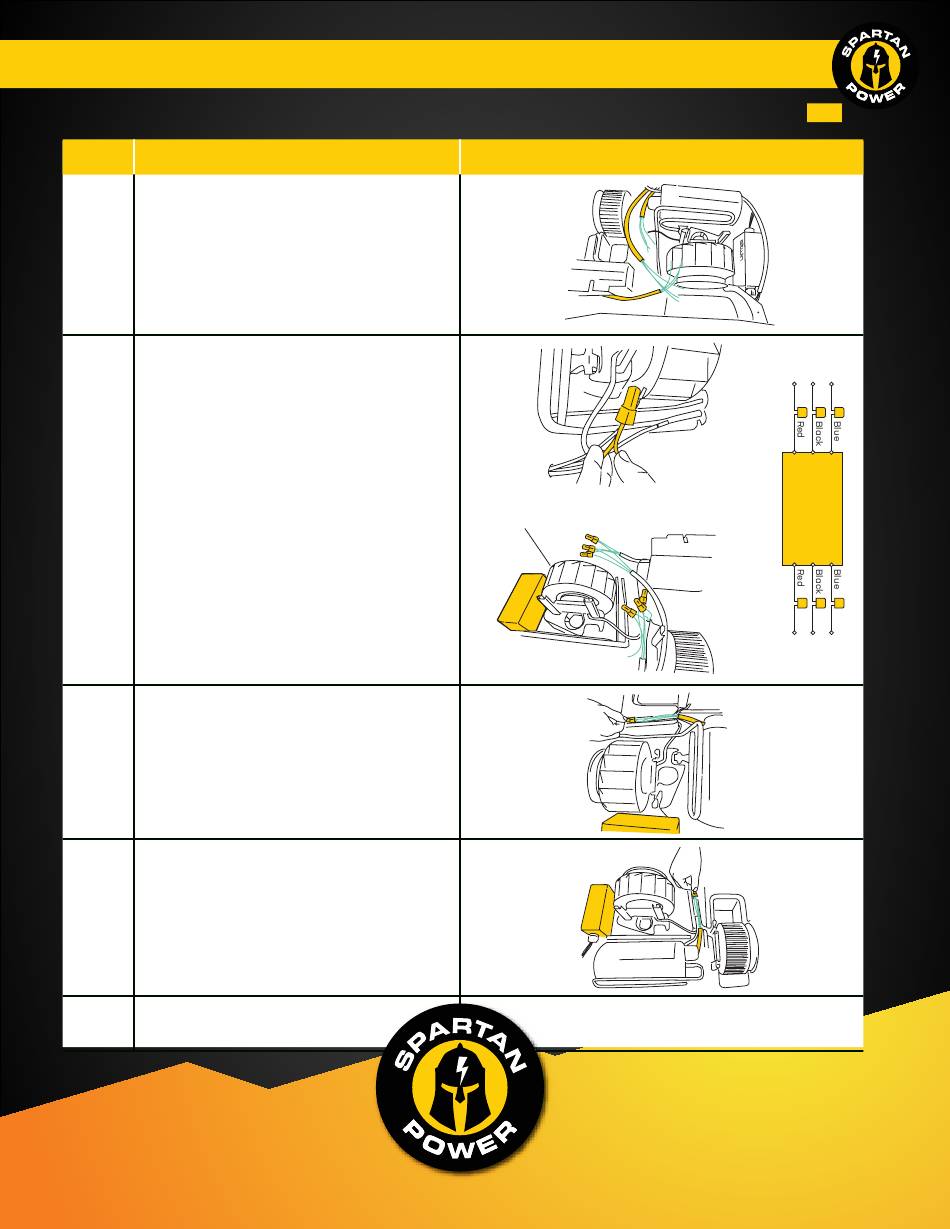

In this illustration, Upper section is Compressor side and
Lower section is Supply side.
6a) On the supply side, carefully match the cut run, start,
and common wires of the A/C unit with the run, start, and
common wires on the SUPPLY side of the soft starter.
Strip each wire by ½" and terminate all 3 connections
using closed end splice connectors, see diagram below.
6
6b) On the compressor side, carefully match the
cut run, start, and common wires coming from the
compressor with the run, start, and common wires on the
COMPRESSOR side of the soft starter. Strip each wire
by ½" and terminate all 3 connections using closed end
splice connectors.
Ensure that all 6 crimp connections are firm and secure.
Ensure that the wire harness on both sides is securely
7
routed within foam guides inside the unit.
Clean the chosen mounting surface for the soft starter
using the included alcohol pad.
8
Secure the soft-starter box in place with the adhesive
tape on the backside and press firmly.
Securely replace any foam covers and the
9
top hood. Turn on power and verify operation.
SPARTAN POWER • 895 E. PATRIOT BLVD., SUITE 103 • RENO, NV 89511 • (775) 800-1725 • SPARTANPOWER.COM
Instruction
Instruction Guide
Illustration
a)
b)
_
3/3
(Supply side)
S C R
S C R
Soft-
starter
S C R
S C R
(Compressor side)
