Summary of Contents for Atlantic HVP-50
- Page 1 DC High Voltage Probe To DMM INSTRUCTION MANUAL www.tmatlantic.com...
-
Page 2: Table Of Contents

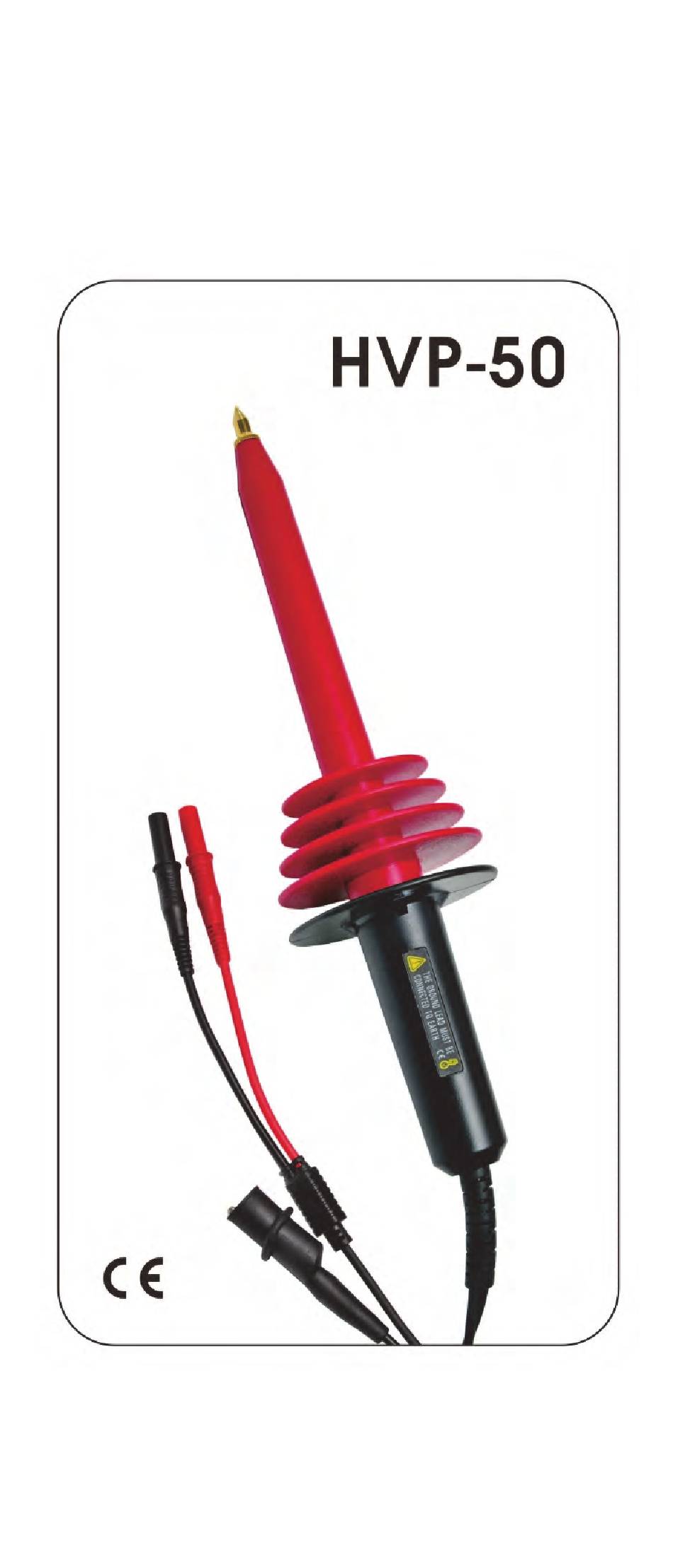

TABLE OF CONTENTS / 1. SPECIFICATIONS…………………………..1 2. SAFETY PRECAUTIONS………..…………2 3. OPERATION…………………………………3 4. WARNING…………………………………….3 5. CLEANING…………………………………...4 6. High Voltage Probe Dimension Comparison Fig……………………………………………..9 www.tmatlantic.com... - Page 3 HVP‐50 DC High Voltage Probe To DMM www.tmatlantic.com...
-
Page 4: Specifications
DC High Voltage Probe To DMM 1. SPECIFICATIONS 1000 : 1 Ratio (1 KV = DMM 1 V Reading Value ) Input 500MΩ ± 2% Impedance Temperature ≦ 100 ppm / C Coefficient Max. Input DC: 0 ~ 50 KV Voltage AC: 0 ~ 35 KV (50 / 60 Hz) ±... -
Page 5: Safety Precautions
DC High Voltage Probe To DMM 2. SAFETY PRECAUTIONS This high voltage probe must only by the person who are trained, experienced (electronics technician), or otherwise qualified to recognize hazardous situations and who trained in the safety precautions that necessary to avoid possible injury when using such a device. -
Page 6: Operation
DC High Voltage Probe To DMM 3. OPERATION (1) Please connect ground lead and cables probably before the measurements. (2) Connect banana leads to DMM input. (3) Set DMM to selected range (please use fixed 10M ohm input impedance DMM). Caution! Please do not turn on high voltage source before completed above procedures. -
Page 7: Cleaning
DC High Voltage Probe To DMM (1) Please connect ground lead and cables probably and doing the measurements. (2) Please put probe on the isolated table when doing the measurements. (3) Please do not touch probe and cables when doing the measurements. 5. CLEANING Clean only the exterior probe body and cables. Use a soft cotton cloth lightly moistened with a mild solution of detergent and water. -
Page 8: High Voltage Probe Dimension Comparison Fig
DC High Voltage Probe To DMM High Voltage Probe Dimension Comparison Fig. www.tmatlantic.com...
