Summary of Contents for decakila CUCV001W

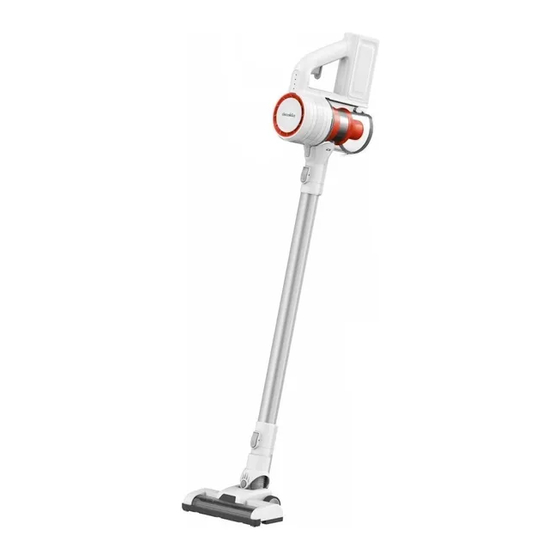

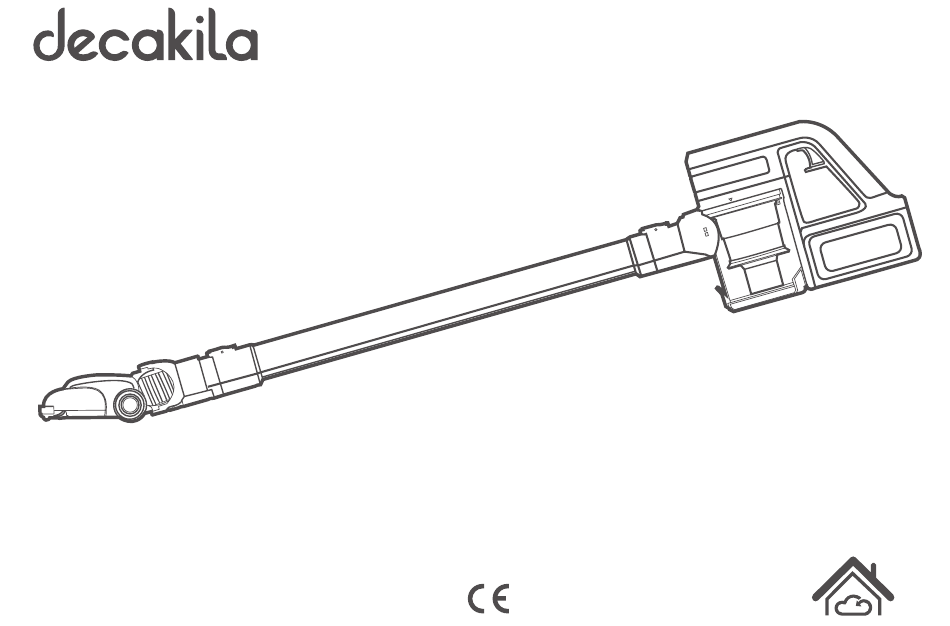

- Page 1 CUCV001W CORDLESS VACUUM CLEANER...
- Page 2 说明书材质要求:105g铜版纸 说明书成品尺寸: 175x120mm 第一:CMYK油墨要求：单色黑 第二：特别注意： 1.印刷时看样请参考我司提供的实物样品颜色。不得偏色 K （单色印刷） 折叠方式：骑马钉 备注: 特别注意：此页内容不印刷...
- Page 3 THE SYMBOLS IN INSTRUCTION MANUAL AND THE LABEL ON THE TOOL Read the instruction manual before using. CE conformity. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
-
Page 4: Table Of Contents
CONTENTS PERSONAL SAFETY ELECTRICAL SAFETY BATTERY SAFETY SERVICE INTENDED USE WARNING INTRODUCTION OF COMPONENTS USE AS THE STICK VACUUM CLEANER... - Page 5 HOW TO USE AS HANDLY BATTERY CHARGING HOW TO EMPTY THE DUST CUP HOW TO MAINTAIN THE FILTER TROUBLESHOOTING TECHNICAL SPECIFICATION ENVIRONMENT CUCV001W EXPLODED VIEW CUCV001W SPARE PART LIST...
-
Page 6: Personal Safety
PERSONAL SAFETY IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE RETAIN INSTRUCTIONS FOR FUTURE REFERRENCE. Do not use in rain or leave outdoors whilst raining WARNING: Basic safety precautions should always be observed when using anelectricalappliance, including the following to reduce the risk of fire, electricalshock, or injury. Store indoors in dry place out of the reach of children;... -
Page 7: Electrical Safety
ELECTRICAL SAFETY Use only the battery and charger provided by the supplier; Never modify the charger in any way; The charger has been designed for a specific voltage.Always check that the mains voltage is the same as than stated on the rating plate;... -
Page 8: Battery Safety
BATTERY SAFETY This appliance includes Li-ion batteries,do not incinerate batteries or expose to high temperatures ,as they may explode; Liquid ejected from the battery may cause irritation or burns; In an emergency situation contact professional help immediately; Leaks from the battery cells can occur under extreme conditions.Do not touch any liquid than leaks from the battery.If the liquid that gets on skin wash immediately with soap and water.If the liquid gets into the eyes,flush them immediately with clean water for a minimum of 10 minutes and seek medical attention.Wear gloves to handle the battery and dispose of immediately in accordance with local regulations;... -
Page 9: Intended Use
INTENDED USE This appliance has been designed for domestic dry vacuum cleaning only; Do not pick up liquids or use on wet surfaces; Do not pick up anyting that is flammable,burning or smoking; Use only as described in this manual; Do not use on concrete,tarmacadam or other rough surfaces. -
Page 10: Introduction Of Components
INTRODUCTION OF COMPONENTS Switch Sofa Brush Dust cup Metal tube locker Long crevice nozzle Metal tube Dust cup locker fixed frame Power brush locker Charger Power brush... -
Page 11: Use As The Stick Vacuum Cleaner
USE AS THE STICK VACUUM CLEANER 1.Attached the metal tube to the body as below until hear 2.Attached the brush to another head of metal tube as below showed click sound Lower power /Power on Two level power control Power off Hight power Switch Lower power... -
Page 12: How To Use As Handly
HOW TO USE AS HANDLY Insert the accessory(long crevice nozzle or Sofa Brush) to body as below showed BATTERY CHARGING When the battery power indictor is blinking,plesase power off ,place the machine on a stand and then connect the charger. Lower power Lighting Second light... -
Page 13: How To Empty The Dust Cup
HOW TO EMPTY THE DUST CUP Metal tube locker 1.Press the metal tube locker then take out the 2.Unlock the dust cup locker metal 3.Empty the dust cup... -
Page 14: How To Maintain The Filter
HOW TO MAINTAIN THE FILTER Dust cup locker 1.Press the dust cup release button and turn the dust cup 2.Open the dust cup as below showed clockwise 4.Wash the HEPA filter and separator 3.Take out the filter and separator... - Page 15 5.Please dry the HEPA filter and separator completely before 6.After drying,assemble the filter and separator to the case assemble back 7.Put the filter case back to the dust cup 8.Put the dust cup assembly into the fuselage as below showed...
-
Page 16: Troubleshooting
TROUBLESHOOTING 1.Empty the dust bin 2.Check dust bin is correctly fitted Not cleaning well 3.Check the filter is correctly fitted 4.Clean the filter 1.Charge battery Stop or won't work 2.Clear debris from brush bar 1.Check connections Battery will not charge 2.Check wall socket... -
Page 17: Technical Specification
TECHNICAL SPECIFICATION Battery 22.2V 2200mAh Charging period 4.5H 26.5V 450mA Battery charger output Net Weight 2.3kg Usage time 40min(low speed),20min(high speed) Power 140W Vacuum 10kpa ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products.There is a separation of this waste product into communities,you will need to inform your local authorities about the places where you can return this product.In fact,electrical and electronic products contain hazardous substances than have harmful effects on the environment or human health and should be reycled. -
Page 18: Cucv001W Exploded View
CUCV001W EXPLODED VIEW... -
Page 19: Cucv001W Spare Part List
CUCV001W SPARE PART LIST Part Description Part Description Metal tube assembly Body screws Brush assembly Right case Roller Dust cup seal Dust cup bottom cover assembly Motor seal Dust cup bottom seal Motor Dust cup Decorative panel Suction port seal... - Page 20 User guide decakila decakila Made in China Suzhou China. 2021.D01 www.decakila.com Decakila Co.,Limited...
