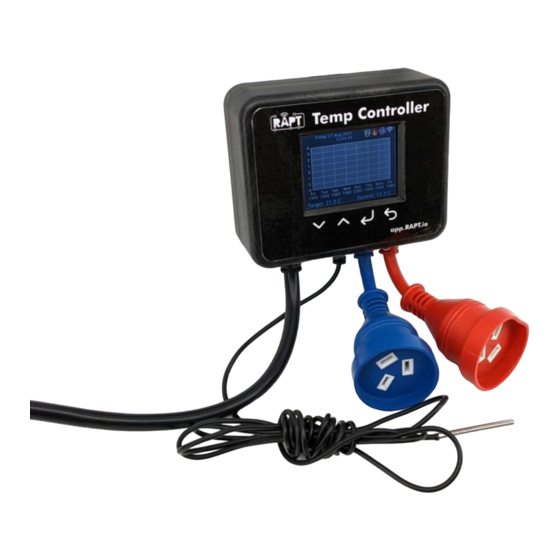

Summary of Contents for KegLand RAPT KL22927
- Page 1 RAPT Temperature Controller Instruction Manual RAPT Temperature Controller KL22927 Instruction Manual KegLand Distribution PTY LTD www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 1 of 17...
-
Page 2: Table Of Contents
No telemetry is displayed on the RAPT Poral ................. 16 Determine whether your RAPT Temperature Controller is connected to Wi-Fi and check the signal strength ........................... 16 Re-register your RAPT Temperature Controller ................16 www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 2 of 17... -
Page 3: Display Legends
If instead you prefer a numerical old school interface this can be easily changed by unselecting the Show graph checkbox in the Settings. This will show an interface like the following: www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 3 of 17... - Page 4 RAPT Temperature Controller Instruction Manual www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 4 of 17...
-
Page 5: Registering Your Device
2. Connect your RAPT Temperature Controller to your Home Wi-Fi Network 1. On your smart phone or tablet, open your Wi-Fi settings and connect to the KegLand RAPT Wi-Fi Access Point using the Wi-Fi name and password displayed on the RAPT Temperature Controller. -
Page 6: Register Your Rapt Temperature Controller To Your Account On The Rapt Cloud
Temperature profiles are automatically stored on the RAPT Temperature Controller once the profile session has been started from the RAPT Portal and profile session has been started on the device from the RAPT Portal. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 6 of 17... -
Page 7: Operation Instructions
240V outlet on the RAPT Temperature Controller. 6. Set your target temperature on the RAPT Temperature Controller manually or through the RAPT Portal. Alternatively, you can begin a Fermentation profile on the RAPT Portal. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 7 of 17... -
Page 8: Manual Operation
To stop running the temperature profile press select (⏎) to enter the menu and then select Profile control. Then navigate using the arrows to the stop button and press select (⏎) to stop the profile. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 8 of 17... -
Page 9: Mounting Your Rapt Temperature Controller Into Your Brewery
Screw two screws into the wall using the following template as a guide. Then simply hook the controller onto the screws using the mounting points provided on the back of the controller. RAPT Temperature Controller Drill Mounting Template www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 9 of 17... -
Page 10: Wall Mounting Option 3
You can then either peel away the face plate and use an 8G x 60mm countersunk screw or you can drill straight through the face plate using an 8G x 60mm or 10G x 60mm countersunk screw as shown below: www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 10 of 17... -
Page 11: Vertical Bench/Panel Mounting
To achieve this, undo the 4 screws which hold the front and back housings together and then pull the two housings apart. Unscrew the two screws which hold the slotted blanking plate to the housing and remove the slotted blanking plate. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 11 of 17... - Page 12 Simply slide the temperature controller housing onto the guides on the mounting plate as shown to the right. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 12 of 17...
-
Page 13: Advanced Settings
PID P Coefficient (Cooling) PID I Coefficient (Cooling) High Temp Alarm 120°C -20.0°C 120.0°C Low Temp Alarm -10°C -20.0°C 120.0°C NOTE: The device will alarm if the Min/Max values are exceeded. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 13 of 17... -
Page 14: Display Icon Legend
To manually update the firmware in the event that this is not up to date, navigate to settings and then navigate to Check for OTA Update. Your device will then automatically download and update the most current available firmware. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 14 of 17... -
Page 15: Temperature Probe Calibration
Press Select (⏎) to lock in this calibration point 2. Once both calibration points have been set the NTC temperature probe has been calibrated. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 15 of 17... -
Page 16: Troubleshooting Registration And Telemetry
1. Go to the settings menu on your RAPT Temperature Controller. 2. Navigate to clear registration and press select (⏎). 3. Register your device to your RAPT account according to the instructions on page 3. www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 16 of 17... - Page 17 If you are unable to sign up an account or your RAPT Fermentation Fridge or RAPT portal displays an error please forward as many visual pieces of supporting information and a detailed description of the error to www.KegLand.com.au Last Updated 24/05/2022 12:17 PM Page 17 of 17...
