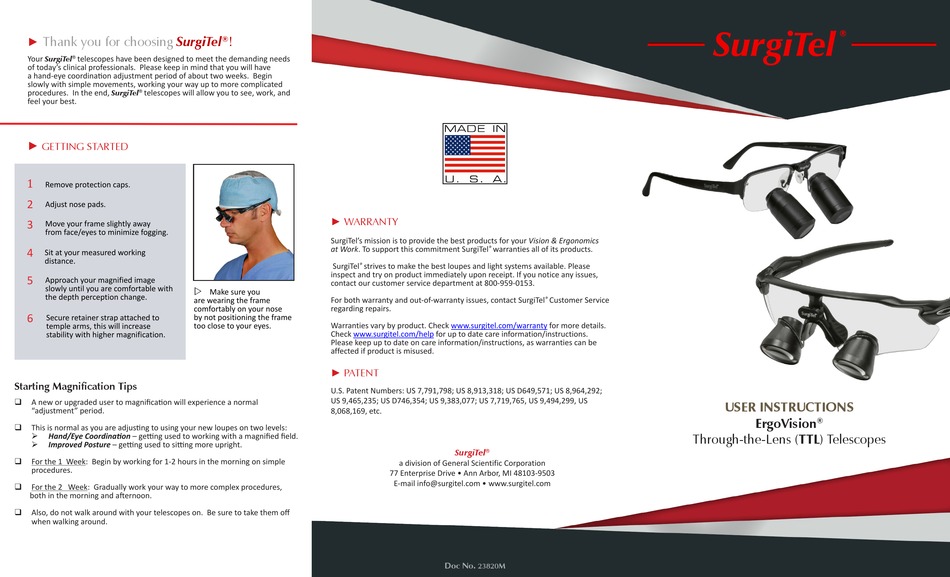

SurgiTel ErgoVision TTL User Instructions

Thank you for choosing SurgiTel
►
Your telescopes have been designed to meet the demanding needs
SurgiTel ®
of today's clinical professionals. Please keep in mind that you will have
a hand-eye coordination adjustment period of about two weeks. Begin
slowly with simple movements, working your way up to more complicated
procedures. In the end, telescopes will allow you to see, work, and
SurgiTel ®
feel your best.
►

GETTING STARTED

1
Remove protection caps.
2
Adjust nose pads.
3
Move your frame slightly away
from face/eyes to minimize fogging.
4
Sit at your measured working
distance.
5
Approach your magnified image
slowly until you are comfortable with

the depth perception change.
are wearing the frame
comfortably on your nose
6
Secure retainer strap attached to by not positioning the frame
too close to your eyes.
temple arms, this will increase
stability with higher magnification.
Starting Magnification Tips
 A new or upgraded user to magnification will experience a normal
"adjustment" period.
 This is normal as you are adjusting to using your new loupes on two levels:
 Hand/Eye Coordination – getting used to working with a magnified field.
 Improved Posture – getting used to sitting more upright.
 For the 1 Week: Begin by working for 1-2 hours in the morning on simple
procedures.
 For the 2 Week: Gradually work your way to more complex procedures,
both in the morning and afternoon.
 Also, do not walk around with your telescopes on. Be sure to take them off
when walking around.
!
®

► WARRANTY

SurgiTel's mission is to provide the best products for your Vision & Ergonomics
at Work. To support this commitment SurgiTel
SurgiTel ® strives to make the best loupes and light systems available. Please
inspect and try on product immediately upon receipt. If you notice any issues,
contact our customer service department at 800-959-0153.
Make sure you
For both warranty and out-of-warranty issues, contact SurgiTel
regarding repairs.
Warranties vary by product. Check
Check www.surgitel.com/help
Please keep up to date on care information/instructions, as warranties can be
affected if product is misused.

► PATENT

U.S. Patent Numbers: US 7,791,798; US 8,913,318; US D649,571; US 8,964,292;
US 9,465,235; US D746,354; US 9,383,077; US 7,719,765, US 9,494,299, US
8,068,169, etc.
® warranties all of its products.
® Customer Service
www.surgitel.com/warranty for more details.
for up to date care information/instructions.
SurgiTel ®
a division of General Scientific Corporation
77 Enterprise Drive • Ann Arbor, MI 48103-9503
E-mail info@surgitel.com • www.surgitel.com
Doc No.
23820M
SurgiTel
®
USER INSTRUCTIONS
ErgoVision ®
Through-the-Lens (TTL) Telescopes
