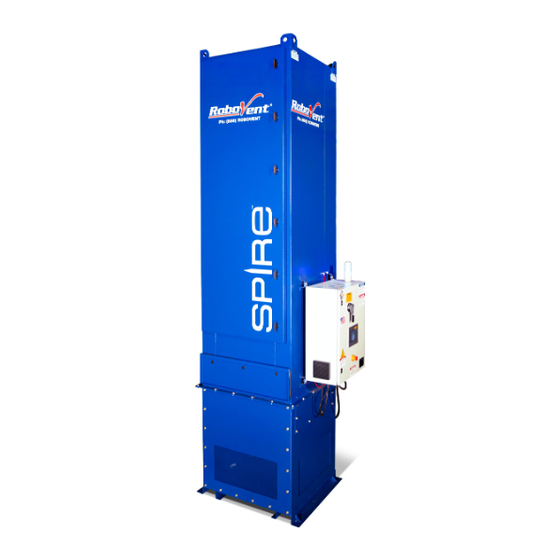

RoboVent Spire MLS-01-5500-10 Owner's Manual

(mls-) cartridge collectors

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Spire Series

(MLS-) Cartridge Collectors

Owner's Manual

Installation, Operation

& Maintenance

Revised 10-25-19

Table of Contents

Need help?

Do you have a question about the Spire MLS-01-5500-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for RoboVent Spire MLS-01-5500-10

Page 1 Spire Series (MLS-) Cartridge Collectors Owner’s Manual Installation, Operation & Maintenance Revised 10-25-19...
Page 3 Spire360 Series Spire Series Models: MLS-01-5500-10 (MLS-) Cartridge Collectors (Spire) MLS-10-7000-10 Owner’s Manual (Spire360) Installation, Operation & Maintenance Manufactured by: RoboVent 37900 Mound Road Sterling Heights, MI 48310 USA (888) 762-6836 www.robovent.com ©2019 RoboVent Product Group, Inc. All rights reserved.
Page 4 When your Spire dust collector is due for scheduled maintenance, keep in mind that RoboVent has specially trained staff to perform these tasks. If you would like one of our qualified service staff to discuss a customized service plan for your factory, don't hesitate to reach out.
Page 5: Table Of Contents
Troubleshooting ......Section 1000 ......Page 53 Appendix A: General Wiring Diagrams Appendix B: Parts List ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 7: Important Safety Instructions
SECTION 100 Important Safety Instructions ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 8 7. If welding stainless steel, special safety measures need to be followed when maintaining collector. Consult your Safety Director for further information on OSHA's Hexavalent Chromium Standards. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 9: Glossary Of Terms
SECTION 200 Glossary of Terms...
Page 10 This is typically either a hopper, or a tray. Control Panel (RV-3.0): A RoboVent Control System that controls the Blower and Pulsing functions through an easy to understand Interface. Control the pulse timing and trigger points;...
Page 11 Plenum: an enclosed chamber where a treated substance collects for distribution, as heated or conditioned air through a ventilation system. Pulse Cleaning System: In RoboVent’s Spire Dust Collectors, dust and fume enters from the side or back of the unit and flows from outside to inside the cartridge filters.
Page 12 This allows the dust collector to maintain a consistent airflow throughout the life of the cartridge filters while also saving energy by eliminating the need to run a collector at full speed with little to no filter resistance. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 13: Features Of The Spire Series Collector
SECTION 300 Features of the Spire Series Collector...
Page 14 SECTION 300 Features of the Spire Series Collector 1. Downflow Filtration System The RoboVent Spire Series cartridge collectors utilize a vertical airflow into horizontal cartridge filters as shown in Figure 1, maximizing airflow near the top of the cartridge plenum. This design helps overcome...
Page 15 Machine. (see Figure 5). 6. Control Panel Screen (RV 3.1.3) Robovent’s Control System controls the Blower and Pulsing functions through an easy to understand interface. Control the online and offline pulse timing and trigger points;...
Page 16 (see Figure 9). 12. A15 PleatLock Filters (Standard, alternate medias are available) The A15 PleatLock filter media is RoboVent's high quality cellulose/polyester blend that provides superior filtration efficiency and long life in welding applications. Every filter is fire retardant and uses Nanofiber technology to achieve a MERV 15 efficiency rating.
Page 17 The effectiveness of this suppression system is greatly enhanced with the safe sensor smoke detection that is standard on all RoboVent Spire collectors. Once smoke is detected, the unit goes into an emergency alarm state, immediately shutting off the blower and activating the motorized dampers to a closed position.
Page 18 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 19: Receiving & Inspection
SECTION 400 Receiving & Inspection...
Page 20 Receiving & Inspection Receiving RoboVent equipment is typically shipped on skids or direct loaded. The number of skids will vary, depending the type, size and accessories ordered. The skids or direct loaded equipment are too heavy to lift by hand. The items will need to be unloaded by an industrial forklift, crane, or overhead crane.
Page 21: Installation
SECTION 500 Installation...
Page 22 Remove FIGURE 16 the two designated filters to access the lifting channels. (see Figure 17). FIGURE 17 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 23 (if they were removed for transportation). (see Figure 19). 5. Connect ductwork A, compressed air B and provide power C to the collector. (see Figure 20). FIGURE 19 FIGURE 20 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 24 (24VAC 7.1VA 50HZ - 5.8 60HZ) FIGURE 23 • Refer to Figure 34 for proper wire placements. 1 = red wire (24VAC) 2 = white wire (neutral) G = green wire (ground) ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 25 CHART 1.0: Wiring for 24VAC Coil Voltage Dampers Terminal Strip wire VFD Output Din Connecter IDEC Relay Input Fuse holder # in RV control terminal # panel 1 (24VAC) 14 (NO) 2 (0VAC) 2 (0VAC) G (Ground) G (Ground) 60 (24VAC) ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 26 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 27: Start-Up/Commissioning
SECTION 600 Start-up/ Commissioning...
Page 28 The compressed air line from the shop must go through the air regulator that RoboVent provides before it is connected to the collector. Clean, dry air is essential for operation. 4. The ductwork from the RoboVent collector to the cell/station(s) must be installed and connected. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 29 1. Check the electrical connection to the collector and ensure there are no loose wires. 2. Check the compressed air that was hooked-up to the RoboVent supplied regulator and confirm it is clean, dry, and set to 85 psi.
Page 30 16. Check the measured velocity (FPM) and airflow (CFM) vs. the designed velocity (FPM) and airflow (CFM). 17. Photos will be taken of the RoboVent Collector, RoboVent HMI, RoboVent Control Panel, Delta3 spark arrestor if applicable, ductwork install, and the customer’s cell.
Page 31: System Balancing
SECTION 700 System Balancing...
Page 32 SECTION 700 System Balancing (Model MLS-01-5500-10 ONLY) Before fully releasing your new RoboVent into production, RoboVent recommends a system balance. Balancing is recommended to ensure the designed velocity and airflow is being pulled from each drop on the system. The following process is a high-level view of how to balance an industrial ventilation experts.
Page 33: Operating Your Spire Collector
SECTION 800 Operating your Spire Collector using the Control Screen ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 34 Blower Control Turns the Blower on or off. Status Indicates current status of the machine. Allows a quick check of the state of machine operation. Filter Pressure Displays current Filter Pressure Differential as In WC. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 35 And length of Offline pulsing (Offline Pulse Time). Elapsed Time shows how long Offline Pulse has been running. Filter Service Allows setting of the Service Indicator Lamp based on Filter Pressure. Reset the Indicator Lamp with Service Reset Button. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 36 SECTION 800 RV3.1.3 Controller Operation Alarm Log Screen Alarm Log Quickly review history. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 37 Sets the hour for the Scheduled Off Time (24hr format). Time Off Minute Setting Sets the Minute for the Scheduled Off Time (24hr format). Set Clock Navigates to Clock setting screen to set or adjust the current time. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 38 When running in Auto Control mode. Auto Start Enables an interlocked machine to start and stop the collector . With an isolated nonpowered signal. VFD Rst Resets all VFD Faults and alarms.. VFD Set Factory only settings (Locked). ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 39: Maintenance
SECTION 900 Maintenance...
Page 40 SECTION 900 Maintenance Safety When performing maintenance on your RoboVent, PPE is required to minimize exposure to metal dust. At a minimum it is recommended to wear disposable coveralls with hood, non-porous gloves, P100 filtered respirator and safety goggles. Consult your company’s policies to develop MSDS and PPE related...
Page 41 Allowing enough time for this procedure is necessary to ensure filters are thoroughly cleans thus improving filter life. (see Figure 28). FIGURE 28 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 42 Listen for each of the 10 valves to fire or for air leaks. Failed pulse valves will fail open, draining the air supply. If this happens, turn off the air supply and contact RoboVent tech support (1-888-762-6836) for assistance. 5. Ensure the system is off on the HMI (Figure 29).
Page 43 (see Figure 35). 13. Ensure all doors and access panels are closed and dust tray is secure. 14. Check floor for any dust that may have spilled, clean as needed. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 44 Inspect the damper to ensure it fully opens on start up. (see Figure 39). FIGURE 38 18. Now that all checks have been completed, return to normal 'ready' condition by turning blower off (indicated by a steady blue light). FIGURE 39 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 45 (see Figure 43). FIGURE 42 8. Take care not to get dust into the clean air side. 9. Empty and replace the dust tray. FIGURE 43 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 46 14. Turn system on and start blower. 15. Record new filter differential pressure. The blower will need some time to ramp up to speed. Once CFM and pressure have stabilized, the value can be recorded. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 47 For more information, please contact RoboVent Tech Support at (1-888-762-6836) or email customer.service@robovent.com. Motor manuals can be sent upon request. As a general rule, RoboVent recommends greasing all motors over 20hp FIGURE 45 once annually. (see Figures 45 and 46). Fire Suppression Inspections...
Page 48 3. The pressure gauge is in the operable range. (see Figure 46). 4. The Nozzle Blowoff Caps are intact and undamaged. (see Figure 48). 5. Neither the Protected Equipment nor the Hazard has been replaced, modified, or relocated. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 49 10 percent, the cylinder shall be refilled or replaced. 3. Remove the nozzle(s) and inspect for obstructions. Reinstall the nozzles. 4. Reinstall the cylinder and re-pressurize the detection tubing with nitrogen following the applicable procedures outlined in Section 5. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 50: Vfd Maintenance Procedure
Table 8.2 Periodic Inspection With Power Applied ITEM INSPECTION CORRECTIVE ACTION Is there any abnormal noise or vibration, or has the total operating time exceeded Cooling fan(s) Replace Cooling Fan 20,000 hours. Check UI-40 for elapsed cooling fan operation time. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 51 • High Ambient temperatures, humidity or altitudes above 3,300 feet • Frequent starting and stopping • Fluctuations of the AC power supply or load • Excessive vibration and/or shock loading • Poor environment, including dust, metal particles, salt, sulfuric acid, chlorine ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 52 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 53: Troubleshooting
SECTION 1000 Troubleshooting ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 54 6. Cartridge filters are loaded. Check the Controller reading. Any reading of 6” Water Column (Collector loading level maximums can vary depending on application, contact Robovent for specifics on your unit if in doubt) or greater signals that the cartridge filters could be loaded. Initiate a manual cleaning cycle (see “Operating your Spire Collector Using the Control Pad”) before replacing cartridges.
Page 55 This will cause the cartridge filters to load up prematurely. In this situation the best solution is to remove most of the oil from the steel before it is processed. Call the RoboVent Service Department at 1-888-762-6836 for more information.
Page 56 Add 1/8 cup of dishwashing liquid to the first bucket of water and allow it to mix thoroughly, then place on dirty smoke alarm into the soap water mixture until it becomes completely covered or submerged. ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 57 If alarms continue to sound even after all the above has been tried, you may need to replace your smoke detector. Call RoboVent at 888-762-6836 for support. *This is a recommendation only. In the event of a fire, follow your state/local/company firefighting procedures.
Page 58 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 59: Appendix A: General Wiring Diagrams
APPENDIX A General Wiring Diagrams...
Page 60 APPENDIX A Wiring Diagram Primary Wiring ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 61 APPENDIX A Wiring Diagram Control Panel VFD and Pulse Timer Wiring ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 62 APPENDIX A Wiring Diagram Electrical Enclosure ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 63 APPENDIX A Wiring Diagram Control Panel BOM ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 64 APPENDIX A Wiring Diagram VFD Parameters ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 65: Appendix B: Parts List
APPENDIX B Parts List...
Page 66 APPENDIX B Parts List ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 67 MLC-FC-01-04 Dust tray DL-8 8 mm door latch FR-1 Compressed air regulator PV-1 Pulse valve NS-SPR-200 Jet Pulse cone SD-120-91 Safe Sensor HMI-PF-7.0 HMI/Control Screen 15-1885 Motor/Blower/Venturi Assembly Parts & Service 1 (888) 762-6836 ROBOVENT • SPIRE SERIES OWNER’S MANUAL...
Page 68 Improving Lives through Clean Air ™ 37900 Mound Road, Sterling Heights, MI 48310 USA ROBOVENT.COM • 888.ROBOVENT ©2019 RoboVent Product Group, Inc.
