DESCRIPTION
The WALLMOUNT SÉRIES is composed of 100AH certified prismatic square cells with
certifications: UL9540A, UL1973, UL1642, IEC62619, IEC62660.
For more details refer to the technical sheet.
1
2
3

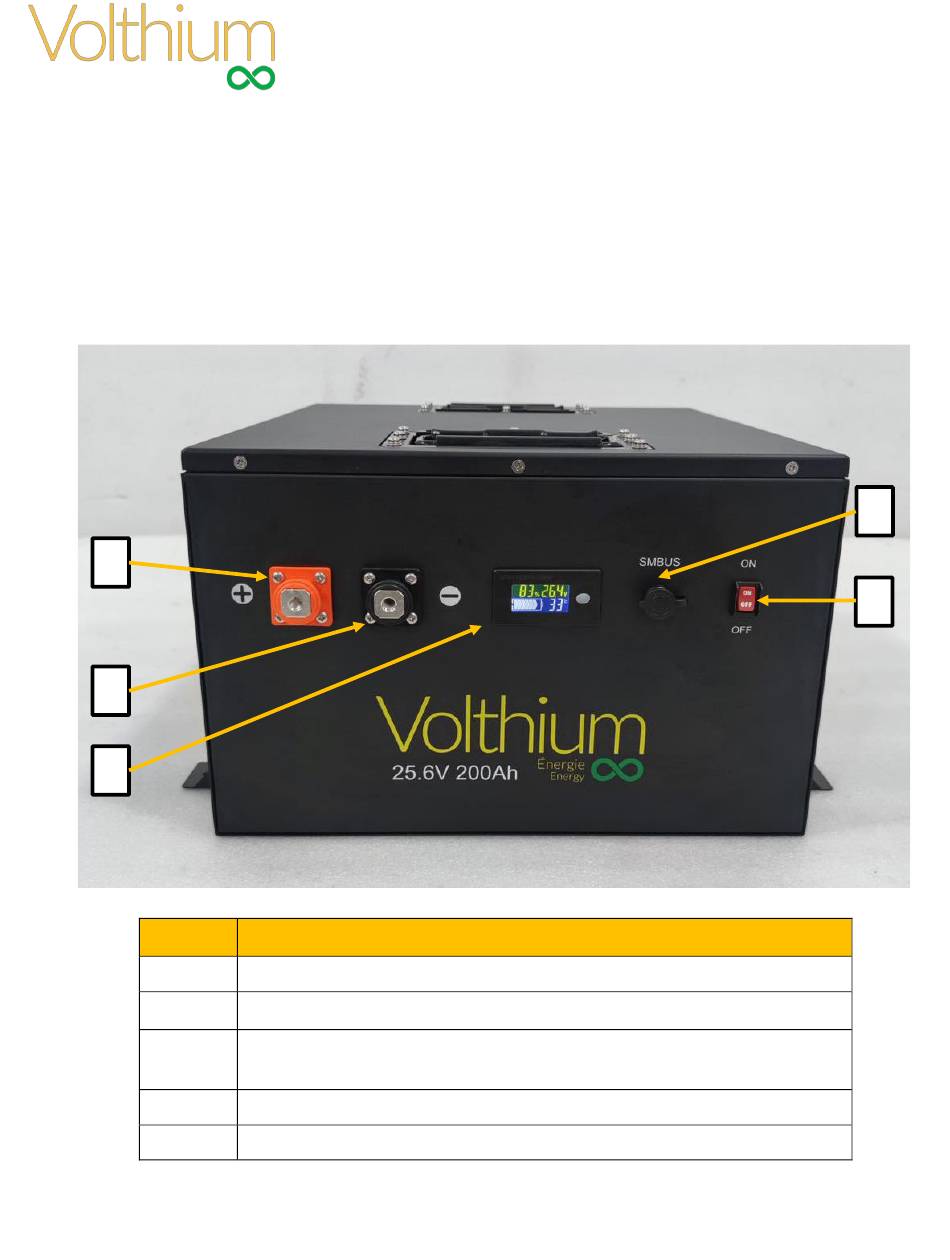

No.
Fonction
1
Positive terminal
2
Negative terminal
3
LCD – Valid for Voltage only *SOC shown is not manage by
the BMS and cannot be take in consideration
4
Communication port – used to access BMS
5
ON / OFF switch for the battery
USER MANUAL – WALLMOUNT
25.6V 200AH
USER MANUAL – WALLMOUNT
25.6V 200A
4
5
1
Advertisement
Table of Contents
Related Manuals for Volthium WALLMOUNT Series
Summary of Contents for Volthium WALLMOUNT Series
- Page 1 USER MANUAL – WALLMOUNT 25.6V 200A DESCRIPTION The WALLMOUNT SÉRIES is composed of 100AH certified prismatic square cells with certifications: UL9540A, UL1973, UL1642, IEC62619, IEC62660. For more details refer to the technical sheet. Fonction Positive terminal Negative terminal LCD – Valid for Voltage only *SOC shown is not manage by the BMS and cannot be take in consideration Communication port –...
- Page 2 CURRENT AND LOAD VOLTAGE DESCRIPTION BATTERIE 25.6V Bulk 28.8V Absorption (optionnel) 28.8V Float 27.2V Charge current per unit Low disconnect voltage (BMS) 21.5 – 22.4 PARALLELING When the DC current of the battery bank exceeds 150A, we suggest the use of BUSBAR. Each battery will connect to the BusBar using an AWG-2 cable, and then from the BUSBAR to your equipment with the cable of your choice.
- Page 3 USAGE ENVIRONMENT Type Points required Range of function：-20℃ ~+60℃ Usage Temperature -20℃ ~+60℃ Storage Temperature Humidity Level ＜95% Atmospheric pressure 86kPa~106kPa No conductive dust and corrosive gas, no vibration. Essentials Keep away from heat and flame. CAUTIONS Please read and respect the following battery installation conditions and use, improper installation using the battery may cause personal injury or damage the product.
- Page 4 7. DO NOT pierce the battery with a screwdriver or other sharp object; do not throw, dab, knock or hit the battery. 8. DO NOT open or attempt to repair the battery when it is defective. Warranty invalid if the battery is repaired or disassembled. 9.
- Page 5 STATE OF CHARGE (SOC) AND VOLTAGE WHEN DISCHARGING AT 50AH 25.6V 200A -50A discharge Voltage 100% 27.01 26.02 25.98 25.87 25.72 25.66 25.57 25.40 25.14 24.71 21.64 USER MANUAL – WALLMOUNT 25.6V 200AH...
