CPAT FLEX
Operation Manual
(ITX2)
v 3.1 / 2021.06.22
Part No. 100-00007-001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPAT FLEX and is the answer not in the manual?

Questions and answers

Related Manuals for Effigis CPAT FLEX

Summary of Contents for Effigis CPAT FLEX

  • Page 1 CPAT FLEX Operation Manual (ITX2) v 3.1 / 2021.06.22 Part No. 100-00007-001...
  • Page 2 Effigis reserves the right to make changes without notice. Changes affecting the operation of any component in this manual will be reflected in a subsequent revision. Effigis assumes no responsibility for any omissions or errors that may appear in this document or for any damages that may result from the use of information contained herein.

  • Page 3: Table Of Contents

    1.6 Effigis Website........
  • Page 4 B.2.6 Disclaimer ........29 Installation diagram ......30 CPAT FLEX Operation Manual (ITX2)

  • Page 5: General Information

    IEC 61326-1 Electrical equipment for measurement, control and laboratory use – EMC requirements – Part 1: Generic requirements. 1.3.2 Compliance This Class A digital apparatus complies with Canadian ICES-003/NMB-003. This Class A digital apparatus also complies with European EN61326-1: 2006. CPAT FLEX Operation Manual (ITX2)

  • Page 6: Note

    Solutions Inc., may void the authority granted to the user by the FCC to operate this equipment. 1.4 Technical Support Effigis Technical Support Service is available from Monday through Friday from 9:00 AM to 5:00 PM Eastern Time. Toll free from U.S. and Canada: + 1 888-495-6577...

  • Page 7: System Components

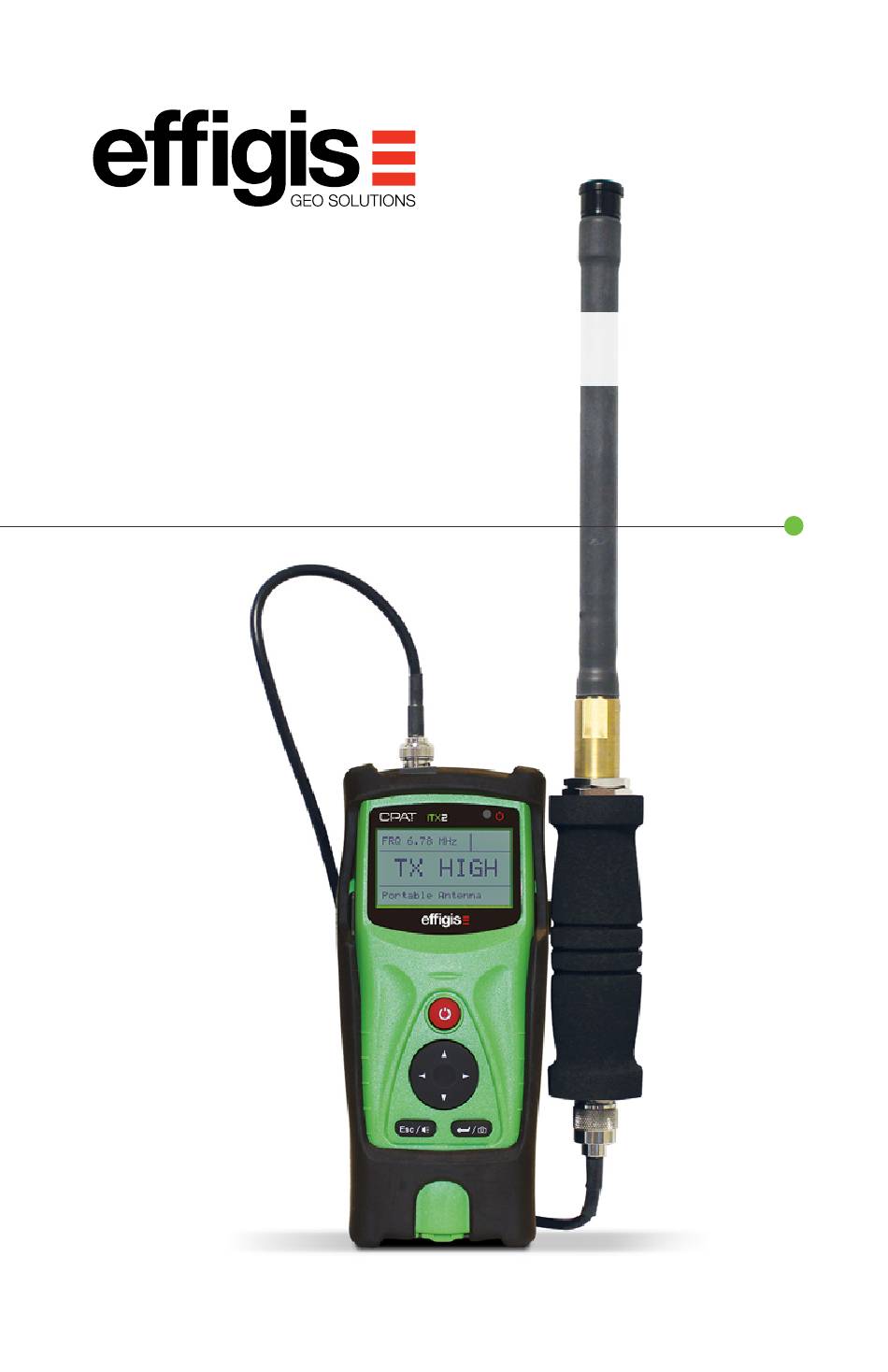

    It can be used as a portable find- and-fix tool, or can be plugged into the ARD4 CPAT FLEX module to automatically locate ingress impairments while driving in the operator’s territory as part of the technician’s daily work routine.

  • Page 8: Itx2 Optional Accessories

    2.2.1 Vehicle Accessories The ITX2 comes with a portable antenna for handheld ingress detection. The ITX2 can also be operated by the ARD4 CPAT FLEX module, installed in the service vehicle. To do so, the accessories listed below are required.

  • Page 9: Features

    036-00020-001 ITX2 USB Cable NOTE Only antennas obtained from Effigis can be used effectively with the ITX2. Each Effigis antenna has been analyzed and the appropriate compensation has been designed into the ITX2 for optimal results. Effigis cannot guarantee proper results with an antenna from any other source.

  • Page 10: Power And Data Interface

    2.4.2 Power and Data Interface The ITX2 has two interfaces on the bottom of the unit. The round receptacle is used to Charger adapter interface USB (A) interface CPAT FLEX Operation Manual (ITX2)

  • Page 11: Antenna Connector

    AC adapter or the DC adapter, supplied by Effigis. The data interface is a USB type A receptacle and is used with the ARD4. It is also used for firmware upgrades. 2.4.3 Antenna Connector The ITX2 has a BNC connector on the top of the unit. This interface is used to connect an antenna supplied by Effigis to transmit a low power ingress test carrier.

  • Page 12: Installation

    9. Do not install the system in a place where it will impair the performance of any of the vehicle’s operating systems, including airbags and headrests. CPAT FLEX Operation Manual (ITX2)

  • Page 13: Installing The Vehicle Support Bracket

    2. For easier installation, remove the back plate from the ITX2 clip by loosening the large adjustment screw (see Figure 2). Screw to secure clip to back plate Bracket’s back plate Openings for screws ITX2 clip Figure 2: Vehicle support bracket See the installation diagram on page 28. CPAT FLEX Operation Manual (ITX2)

  • Page 14: Setup

    4.1 IRX1, IRXD and IRXP Setup The installation, setup and system operation are detailed in the “CPAT FLEX Operation Manual (IRX1, IRXD, RXP)”. The IRX1,IRXD, IRXP automatically monitors any ITX2 that match its parameters and are transmitting in the return path of the nodes linked to it.

  • Page 15: Operation

    5. Operation 5.1 LCD Information At startup, the LCD display shows a splash screen with the Effigis logo for about 3 seconds. Then, the main interface appears, summarizing the unit’s operating parameters. Transmission Frequency Charging/Low Battery FRQ 6.78 MHz Batt.

  • Page 16: Menu Content

    ITX2 shows the current Tx level. NOTE The transmit level can be modified directly from the main interface by using the up and down arrows on the keypad, or can be muted with the Esc / Tx button. CPAT FLEX Operation Manual (ITX2)
  • Page 17 • None: No antenna is used (for testing purpose only). Example of a monopole antenna, this one Example of a rubber duck antenna, this one for 27.12 MHz. It can be installed using a for 40.68 MHz. magnetic or lip mount. CPAT FLEX Operation Manual (ITX2)
  • Page 18 ITX2’s settings match the actual antenna type connected to the unit in order to transmit at a similar level and be able to compare ingress readings. Using an antenna that is not authorized by Effigis, or setting up the ITX2 with the wrong antenna type will result in erroneous readings.

  • Page 19: Using The Itx2 As A Portable Transmitter

    Once connected to a specific ITX, the readings are updated every second. If no ingress is measured at the headend from a particular ITX, you will see the value “--“. In all other cases, the ingress level measured at the headend will be displayed in dBmV. CPAT FLEX Operation Manual (ITX2)
  • Page 20 Apple App store (iTunes) or the Android App store (Google Play), and download the “CPAT” app. The first module within this app is an enhanced version of the RIM software on the web. CPAT FLEX Operation Manual (ITX2)
  • Page 21 • There is at least one ingress point within range of the transmitter (a few to several meters, depending on Tx level and ingress sensitivity). • The ITX2 is transmitting. Remember that the higher the value, the closer the ingress point. CPAT FLEX Operation Manual (ITX2)

  • Page 22: Charging The Battery

    5.6 Using the ITX2 for autonomous detection The ITX2 can be used for autonomous detection when used with an ARD4, the central control module of the CPAT FLEX platform. To do so, the ITX2 must be linked to the ARD4 using the USB cable.

  • Page 23: Replacing The Battery Pack

    4. Disconnect the 4-pin mating on the cable between the battery pack and the circuit board. Replace the battery pack only with a battery pack from Effigis. 5. Plug the 4-pin connector to the cable, and replace the bottom part of the case.

  • Page 24: Updating The Itx2'S Firmware

    5.8 Updating the ITX2’s Firmware From time to time, firmware updates may be available for the ITX2. Effigis provides these updates via its website. Please visit the Downloads page to obtain the latest firmware release. To check which version is currently installed in the ITX2, access the setup mode by pressing the left or right arrow and scroll to the Version menu.

  • Page 25: Electrical And Environmental

    Rubber duck type Ingress Antenna, 27.12 MHz, -5 dB P/N 111-00032-001 Rubber duck type Ingress Antenna, 40.68 MHz, -20 dB P/N 111-00044-001 Vehicle Sub-VHF Antenna - 60 in (152 cm), 40.68 MHz, 0 dB P/N 111-00045-001 CPAT FLEX Operation Manual (ITX2)

  • Page 26: Itx2 Transmission Compliance Summary

    Appendix B – Our Services Effigis offers a portfolio of services to deploy and support purchased equipment through its Customer Support organization. Customer Support is standard with every product sale and consists of business hour technical assistance, in-warranty repair and calibration.

  • Page 27: Customer Support

    Effigis Support. Effigis is not liable for any damage that may occur during shipping. The customer should clearly mark the Effigis’ issued RA or reference number on the outside of the package and ship it prepaid and insured to Effigis.

  • Page 28: Limited Product Warranty

    Any third party products, including software, included with Effigis products are not covered by this Effigis warranty and Effigis makes no representations or warranties on behalf of such third parties. Any warranty on such products is from the supplier or licensor of the product.

  • Page 29: Refurbished Parts And Prior Testing

    (Limited Warranty) and actually fails during the applicable warranty period and under normal use, Effigis shall, at its sole discretion (i) repair or replace the non-conforming Product to remedy the nonconformity identified by Customer in accordance with this Section (Limited Product Warranty);...

  • Page 30: Installation Diagram

    Installation diagram Screws Tie wrap Vehicle Vehicle Roof Antenna CPAT FLEX Operation Manual (ITX2)
  • Page 31 Holder + lockplate CPAT FLEX Operation Manual (ITX2)
  • Page 32 Published by Effigis 4101 Molson St., Suite 400 Montreal, Quebec CANADA H1Y 3L1 www.effigis.com 1-888-495-6577 © 2021 Effigis. All rights reserved. 006-000039-104...
