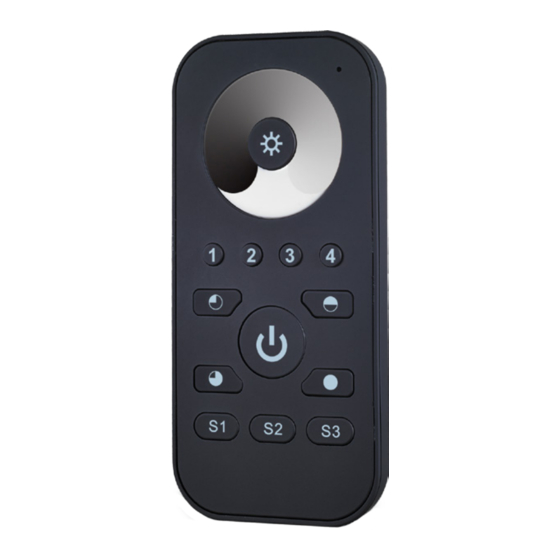

Alloy LED AL-60-03-0001 Quick Start Manual

Remote Control Dimmer Switch

AL-60-03-0001
N L

Dimensions

2.17 in.

Operation

Brightness Wheel
Choose a Zone number(s), for example 1 and 3, then touch the Brightness wheel to choose the desired brightness.
Brightness Up & Down Button
Short or long press the Brightness buttons to increase or decrease the brightness. The dimming direction will change each time the switch
is pressed. For example, the first long press increases the brightness, and the next long press dims down.
Brightness Button
Select a Zone (1, 2, 3, or 4). Press the 25%, 50%, 75% or 100% Brightness button for the corresponding brightness amount.
Save/Recall Button
1. Save brightness level: select a Zone (1, 2, 3, or 4), then adjust the brightness. Long press a Save button (1, 2, 3, or 4) for 2-3 seconds.
The LED lights will flash to indicate the level has been successfully saved.
2. To recall: select the zone to recall by pressing a Zone button (1, 2, 3, or 4), then short press one of the Save buttons (S1, S2, S3).
page 1 of 2
®
®
0.67 in.
www.AlloyLED.com / support
Specifications subject to change without notice.
This Wireless Remote Control and Wireless Receiver (AL-60-03-0004
– sold separately) work together to provide mode, color, brightness,
and zone control for both Radialux
The controller can operate up to four independent zones, so you can
have different color-changing effects in different rooms or parts of a
space. The remote can save up to three custom colors or modes. A
touch wheel allows for direct visual selection of colors.
• Operation Voltage: 4.5V DC
• Zones: 4
• Signal: WiFi / RF
• Location: Dry (IP20)
• Compatible Receiver: Wireless Receiver (AL-60-03-0004)

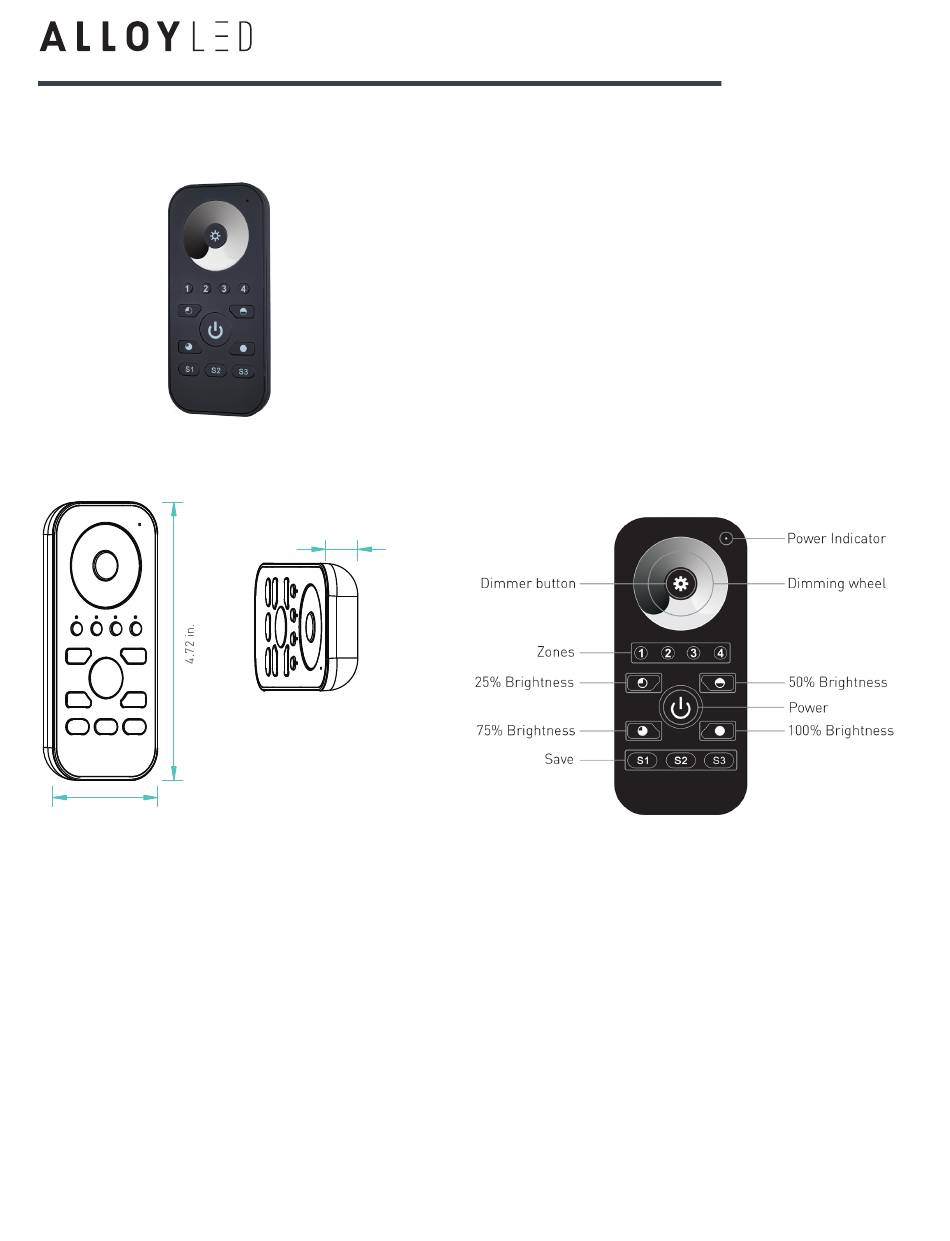

Keypad Layout
