Raceface VAULT 30 Service Manual

Race Face products should be installed by a professional bicycle service technician, in
accordance with Race Face installation specifications. Improperly installed products
can fail, causing the rider to lose control resulting in SEVERE INJURY OR DEATH.
Modification or alteration of a Race Face product can cause product failure resulting
in SEVERE INJURY OR DEATH.
TRACE HUB SERVICE MANUAL
The instructions in this service manual can be used with the parts listed below. If you do not see your parts listed here, please
contact your dealer for instructions and information.

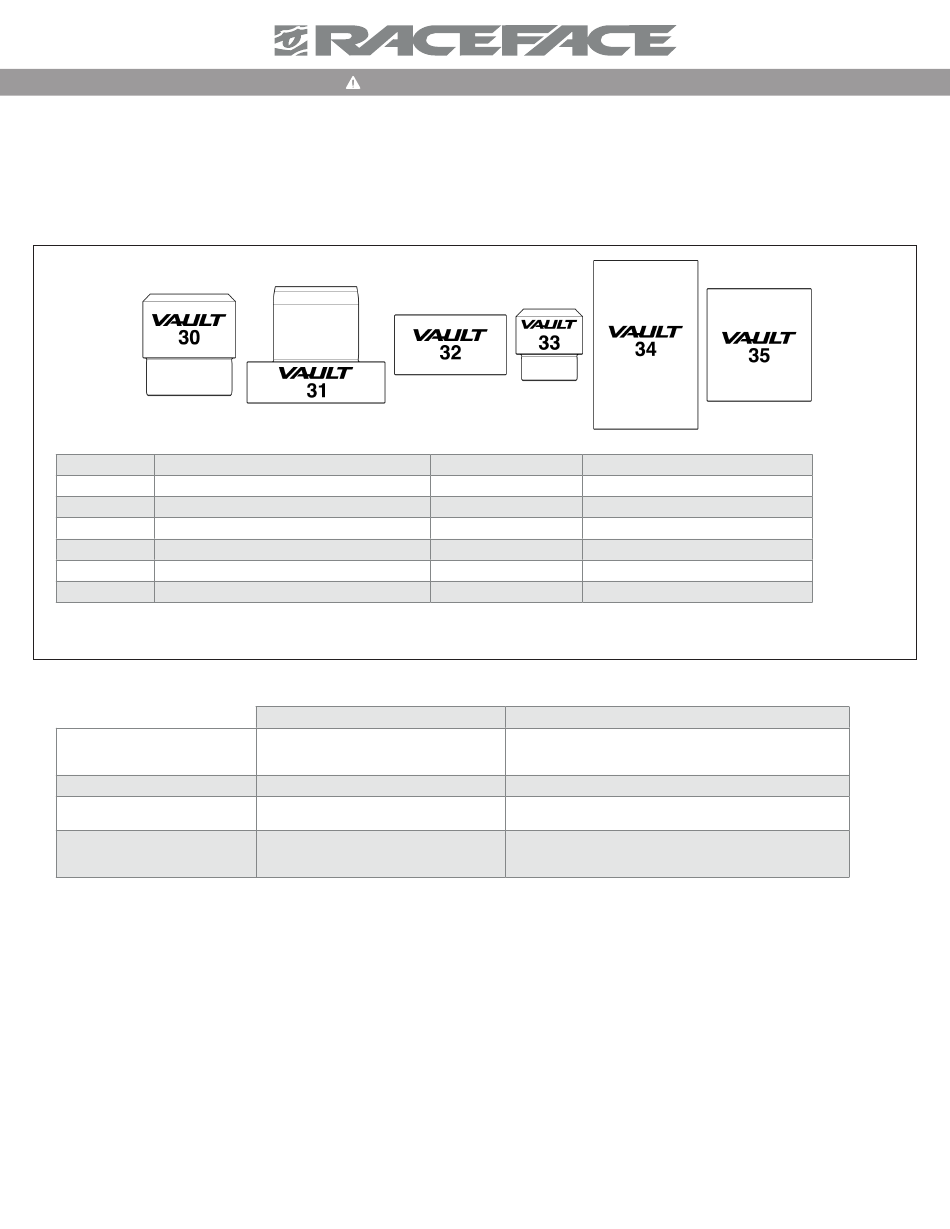

VAULT KIT (F60185) CONTENTS:
PART
VAULT 30 Bearing removal tool, 6805
VAULT 31 Bearing installation drift, 6805
VAULT 32 Bearing installation drift, 18x30
VAULT 33 Bearing removal tool, 18x30
VAULT 34 Bearing installation drift, 6902 drive side
VAULT 35 Bearing installation drift, 6902 non-drive side
*For use in VAULT hubs only
Kit parts are laser etched to help you identify them easily. Visit raceface.com for more information on how to use this kit to service
Trace hubs and VAULT hubs.
PARTS LIST
HUB MODEL
BEARINGS (REQUIRED)
AXLE (OPTIONAL)
OTHER PARTS TO REVIEW FOR
REPLACING (OPTIONAL)
*Bearings are sold in single (1) qty. Purchase 2 to replace both bearings.
NOTE: Some Race Face and Easton spare parts can be interchanged as necessary, see Parts List Appendix A
TOOL AND SUPPLIES LIST FOR ALL SERVICE STEPS
Small flat head screwdriver or pick
Small plastic mallet
Bearing press
VAULT 34 (or Park Tool Drift 2262-2 / 2272-2)
VAULT 35 (or Park Tool Drift 2262-2 / 2272-2)
VAULT 33
VAULT 32 (x2)
Rubber gloves
Clean, lint-free rags
15 mm or 12 mm blind bearing puller or vise with soft jaws (optional)
WARNING AND SAFETY INFORMATION
SEATPOST OWNER'S GUIDE
RACEFACE.COM
DESCRIPTION
RACE FACE TRACE FRONT HUBS
FRONT HUBS: J615
Aeffect R Front wheels, Aftermarket Hub F60199
* 2x - F60123, BEARING, 18X30, CN, AM
F60202, AXLE, TRACE, J-BEND, FRONT, 15x110
(J615)
F60199, ENDCAP, SET, TRACE, J-BEND, FRONT,
15X110
Improper service, or use of non-Race Face replacement parts with Race Face products
may cause the product to malfunction, resulting in SEVERE INJURY OR DEATH.
Never use a power washer to clean your Race Face product.
QTY SUPPLIED IN KIT TRACE HUB COMPATIBILITY
1
2
2
1
1
1
RACE FACE TRACE REAR HUBS
REAR HUBS: J624/J622
Aeffect R and Aeffect R eMTB Rear wheels, Aftermarket Hubs F60190,
F60191, F60192, F60193, F60194, F60195
* 2x - F60078, BEARING, 6902 CM
F60200, AXLE, TRACE, J-BEND, REAR, 12x148 (J624)
F60201, AXLE, TRACE, J-BEND, REAR, 12x157 (J622)
F60196, ENDCAP, SET, TRACE, J-BEND, REAR, 12X148/157
F60203, SPACER, TRACE, J-BEND, CASSETTE BODY
F60204, SEAL, TRACE, J-BEND, CASSETTE BODY, NDS
APPROVED GREASES AND OIL FOR ALL SERVICE STEPS
Easton Cassette Body Grease
Buzzy's Slick Honey Grease
Slickoleum Light Grease
Dumonde Tech Classic Freehub Grease
Dumonde Tech Advanced Freehub Grease
Superlube Silicone Lubricating Grease
Triflow Clear Synthetic Grease
WATERPROOF GREASE
Any thick waterproof, marine grease
OIL
Super Lube Multi Purpose Synthetic Oil With Syncolon (PTFE)
Park Tool CL-1 Synthetic Blend Lube With PTFE
Similar light PTFE oil
1
605-00-239 REV A
*N/A
*N/A
J615
J615
J624/J622
J624/J622
