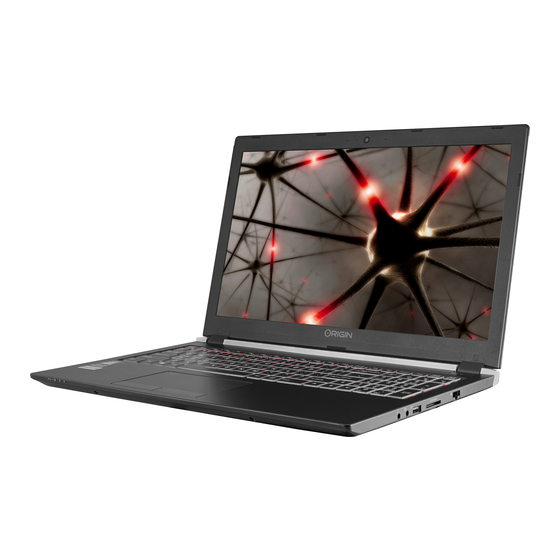

Origin EVO15-S User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

User Manual

GM5AGxY

USER MANUAL

EVO15-S/NT-15

Table of Contents

Need help?

Do you have a question about the EVO15-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Origin EVO15-S

Page 1 User Manual GM5AGxY USER MANUAL EVO15-S/NT-15...
Page 2: Notice
Notice The information in this user’s manual is protected by copyright laws, all parts of this manual, including the products and software described in it, can not be reproduced, transmitted, transcribed, stored in a retrieval system, nor translated into any language. THE MANUFACTURER OR RESELLER SHALL NOT BE LIABLE FOR ERRORS OR OMISSIONS CONTAINED IN THIS MANUAL AND SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL...
Page 3: Table Of Contents
TABLE OF CONTENTS Notice ...................... 2 Preface ....................5 1.1 Regulations Information..............6 1.2 Safety Instructions ................10 1.3 Conventions for this Manual .............11 1.4 Release History ................12 Getting to know the basics ..............13 ............... 14 2.2 Preparing your Computer ............... 18 2.3 Product Overview ................
Page 4 4.1 About BIOS Setup ................36 4.1.1 When to Use BIOS Setup ? ............36 4.1.2 How to Run BIOS Setup ? ............36 4.2 BIOS Setup Menu................37 4.2.1 Main Menu ..................38 4.2.2 Advanced Menu ................40 4.2.3 Security Menu................42 4.2.4 Boot Menu ..................
Page 5: Preface
Chapter 1 Preface Notebook Manual 5...
Page 6: Regulations Information
1.1 Regulations Information CE compliance This device is classed as a technical information equipment (ITE) in class B SAR/DAS refers to the rate at which the body absorbs RF energy. The SAR limit set by the ICNIRP Guidelines is 2.0 W/kg(10g). Testing for SAR is conducted using standard operating positions accepted by the EN standard.
Page 7 Rechargeable Battery Notice Do not 2.Throw or immerse into water 3.Heat to more than 60°C 4.Repaire or disassemble 5.Leave in an extremely low air pressure environment connection. The unit can be operated at an ambient temperature of max. 35°C (95°F). Do not subject it to temperatures below 5°C (41°F) or above 40°C (104 °F).
Page 8 FCC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 9 FCC Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Commu nications Commission of the U.S. Government. Absorption Rate, or SAR.
Page 10: Safety Instructions
1.2 Safety Instructions Do not apply heavy pressure to the computer or subject it to any form of strong impact as this can damage the computer's components or otherwise cause it to malfunction. Never cover or block the air vents including those located at the base of the computer.
Page 11: Conventions For This Manual
1.3 Conventions for this Manual be followed for safe operation. Notebook Manual 11...
Page 12: Release History
1.4 Release History Date Revision Initial release 11/2021 Notebook Manual 12...
Page 13: Getting To Know The Basics
Chapter 2 Getting to know the basics Notebook Manual 13...
Page 14 This User’s Manual provides technical information of instructions and illustrations on how to operate this notebook for the customer. Please read this manual carefully before using this notebook. ・Physical Characteristic Dimension 355.5*236.8*19.9mm ・CPU Support Processor Support Processor RTX3070Ti ・Memory DDR5 4800MHz ・Display 15.6' 16:9 (Narrow), QHD, 240Hz 2560x1440...
Page 15 ・I/O Port but w/o bc1.2 protocol ) USB Type C x1 @Rear side x1 RJ45 Card Reader USB3.0 Interface HDMI Audio out & Mic in ・Audio *Azalia standard support *D3 mode support Speaker/MIC *Digitial Microphone support Notebook Manual 15...
Page 16 ・Input Keyboard Pointing Device TDA1470 (114.5*70*0.8mm) TP Glass like Controller IC upgrade to 1836, support Windows Update ・Communication Port *Supports 10/100/1000/2500 Mb/sec *Power Down Mode D1~D3 support *PCIe ASPM L1.1, L1.2 support *UI for network package management Wireless LAN +BT IEEE802.11 a/b/g/n/ac/ax support Notebook Manual 16...
Page 17 ・Webcam Webcam ・Power AC Adapter RTX3070T RTX3080 Battery Li- polymer Battery, SW Gas Gauge IC, soft pack, 4 cells(4S1P),4100mAh, 62.32Wh MODEL IS DESIGNED TO USE WITH THE Notebook Manual 17...
Page 18: Preparing Your Computer
2.2 Preparing your Computer Connect the AC adapter’s DC output plug to the DC IN jack. The display panel can be opened to a wide range of angles for optimal viewing. Press the power button to turn on your notebook computer. Notebook Manual 18...
Page 19: Product Overview
2.3 Product Overview Please become familiar with each component before you operate the computer. Top-Open View cation will depend upon the actually shipping product. Notebook Manual 19...
Page 20 Camera Status LED The Camera Status LED shows the Camera status. Optional Camera A device that allows you to record video or take photographs with your computer. Infrared capability for facial reconition camera can be used to identify and authenticate user to unlock notebook, conduct payment and other security functions.
Page 21 Power Button ) Mode Switch On screen display Turbo mode ：Both White (All lights) Game mode： White (Bottom light) ： OFF(default) Caps Lock Status LED ON (White) Keyboard Touchpad LED indicator/ Touchpad switch • Please refer to the description at the end of the manual Touchpad/Click pad Notebook Manual 21...
Page 22 Right Side View Card Reader Insert Memory Card USB Ports Connects an USB device. (such as USB Zip drive, keyboard or mouse) into this jack. Vents The thermal vents are designed to cool the internal components and avoid overheating. Notebook Manual 22...
Page 23 Left Side View Kensington® Lock Port To be secured using Kensington® Lock Port security products. Vents The thermal vents are designed to cool the internal components and avoid overheating. USB Ports Connects an USB device. (such as USB Zip drive, keyboard or mouse) into this jack. Mic In Jack Audio Out Jack Notebook Manual 23...
Page 24 Bottom Side View shipping product. Vents The thermal vents are designed to cool the internal components and avoid overheating. Speaker the computer, do not place the computer directly on your lap or obstruct Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block skin or a soft surface, such as pillows or rugs or clothing, during operation.
Page 25 Compartment View BATTERY If you need to upgrade your system, Notebook Manual 25...
Page 26 Front Side View Light bar Smart lighting color control of Light Bar. Notebook Manual 26...
Page 27 Back Side View USB Type C Port USB Type C / DP / USB Power Delivery HDMI port Connected to the screen, or home theater system. Network Jack This jack lets you connect to a LAN. Power Connector Connects the AC adapter into this connector. Vents The thermal vents are designed to cool the internal components and avoid overheating.
Page 28: Getting Started
Chapter 3 Getting started Notebook Manual 28...
Page 29: Ac Adapter
3.1 AC Adapter Please be noted that it is strongly recommended to connect the AC adapter the AC adapter is connected, the battery is being charged immediately. Attach the AC adapter when you need to charge the battery or you want to operate from AC power.
Page 30: Knowing The Keyboard
3.2 Knowing the Keyboard holding the function key while pressing a key with a colored command. country/region in which the keyboard was designed and built. Notebook Manual 30...
Page 31: For Keyboard Users
3.2.1 For keyboard users To activate these functions, press the hot key associated with Function Keys Keypad Function Description Press this key combination (Fn+F1) to enter sleep mode. Windows Press this key combination (Fn+F2) Windows to turn Lock/On . Display Press this key combination (Fn+F3) to enable Display Mode.
Page 32 Function Keys Keypad Function Description Keyboard Press this key combination (Fn+F6) Brightness Keyboard to decrease brightness of Keyboard Press this key combination (Fn+F7) Brightness Keyboard. to increase brightness of Press this key combination (Fn+F8) to enter MUTE mode. Press this key combination (Fn+F9) Press this key combination (Fn+F10) Press this key combination (Fn+F11) Brightness...
Page 33 Function Keys Search For a full list of Windows keyboard shortcuts, please visit the Microsoft (Optional) official website https://support.microsoft.com/en-us/ Notebook Manual 33...
Page 34: Using The Touchpad / Clickpad
3.3 Using the touchpad / clickpad The touchpad / clickpad is a rectangular electronic panel located just below your keyboard. Click twice left corner will open or close (light) touchpad / clickpad and slide it to move the cursor. You can use the buttons below the touchpad as left and right mouse buttons.
Page 35: Bios Setup
Chapter 4 BIOS setup Notebook Manual 35...
Page 36: About Bios Setup
4.1 About BIOS Setup 4.1.1 When to Use BIOS Setup ? ・ An error message appears on the screen during the system booting up and is requested to run SETUP. ・ You want to change the default settings for customized features.
Page 37: Bios Setup Menu
4.2 BIOS Setup Menu Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen. Select the tags to enter the other menus. Main Menu Show system overview about memory size and setting of system time and date. Advanced Menu with Intel platform + Windows.
Page 38: Main Menu
4.2.1 Main Menu ・System Time This item allows you to set the system time. There is a small internal (CMOS) battery which is designed to maintain your system clock. It is designed to maintain time even when the PC is powered down or in sleep mode. The time format is ・System Date This item allows you to set the system date.
Page 39 Day of the week, from Sun to Sat, which The month from 01 (January) to 12 Month (Month) (December). Date (Date) The date from 01 to 31. Year (Year) The year can be adjusted by users. ・Total Memory This allows you to see the total amount of memory. Notebook Manual 39...
Page 40: Advanced Menu
4.2.2 Advanced Menu Notebook Manual 40...
Page 41 ・Operating system support [UFEI OS] If you choose UEFI operating system, it will support UEFI mode compatible operating systems ・・・Operating mode (Optional) ・For details of Control center, please refer to the following instructions Notebook Manual 41...
Page 42: Security Menu
4.2.3 Security Menu ・ Thunderbolt Security Level [User Authorization / Secure Connect/ Display Port only / USB Docking Only / Unknow Status] ・Change Administrator Password When this item is selected, a message box shall appear on the Enter New Password The password typed now will replace any previously set password from CMOS memory.
Page 43 Select Change User Password to give or to abandon password setting same as Change Administrator Password item above. change the settings of the BIOS SETUP UTILITY, while User without having the authorization to make any change. The Password Check item is used to specify the type of BIOS password protection that is implemented.
Page 44: Boot Menu
4.2.4 Boot Menu ・ Boot from LAN or not. ・・Set Boot Priority (1st/2nd/3rd/..Boot) A device enclosed in parenthesis has been disabled in the corresponding type menu. ・ Hard Disk Drive / USB HardDisk Drive Notebook Manual 44...
Page 45: Exit Menu
4.2.5 Exit Menu ・Save Changes and Reset Exit system setup after saving the changes.F4 key can be used for this operation. ・Discard Changes and Exit Exit system setup without saving any changes. ESC key can be used for this operation. ・Restore Defaults Restore/Load Defaults values for all the setup options.
