Summary of Contents for RC4 Wireless RC5 EASS IP65

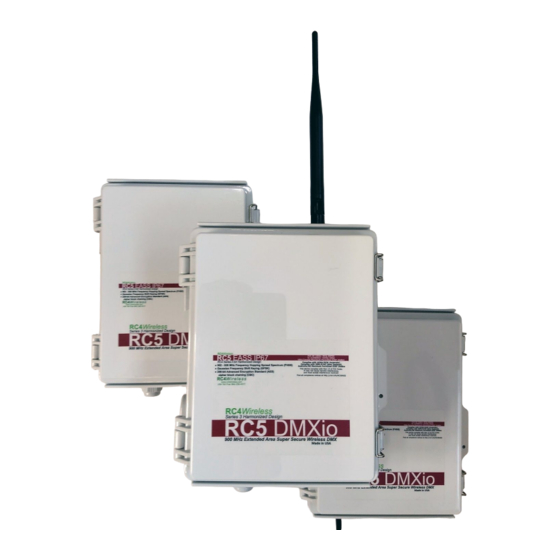

- Page 1 RC4 Wireless RC5 EASS IP65 Installation Safety and Site Preparation Guide (c) 2018 RC4 Wireless. All rights reserved. Rev 1.1A...
-
Page 2: Table Of Contents
This document provides information you should carefully review and understand before installing the RC4 Wireless R C5 EASS IP65 w ireless DMX transceiver, including important safety information, installation recommendations, site requirements, and specific installation steps. These topics are discussed:... - Page 3 Warning: I nstallation of the equipment must comply with local and national electrical codes. Warning: T his unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. The enclosure of the device itself can be restricted with the addition of a suitable padlock (not included).
-
Page 4: Safety Recommendations
Safety Recommendations Follow these guidelines to ensure general safety: ● Keep the chassis area clear and dust-free during and after installation. ● Keep tools and chassis components away from walk areas. ● Do not wear loose clothing that could get caught in the chassis. ●... -
Page 5: Preventing Electrostatic Discharge Damage
Mounting The transceiver is designed for mounting on a wall or pole. RC4 Wireless recommends that the transceiver not be rack mounted. The transceiver should be positioned with the RP-SMA antenna connector at the top, and the hinges for the cover on the left. -
Page 6: Environmental Requirements
The RC5 EASS IP65 transceiver uses a fully isolated Class 2 power supply module. The class 2 power supply is internationally safety certified* for AC voltage input within the range of 100VAC to 240VAC. No manual selection of input voltage is required. -
Page 7: Data Cabling
Data Cabling Power supply ground is NOT connected to data ground within the RC5 EASS IP65 transceiver. A connection screw for an AC power ground wire is provided, which affects only the area surrounding the power supply section of the circuit board, outlined with white lines on the circuit board. -
Page 8: What Is Supplied
What is Supplied Each RC5 EASS IP65 device is shipped with: ● Main enclosure, which includes: ○ Main RC5 transceiver circuit board ○ Board-mounted internationally certified Class 2 power supply ○ RP-SMA antenna connection ○ 2-conductor Wago connector for AC power connections (pre-attached to internal power supply input wires) ○... -
Page 9: Optional Accessories (Not Included)
Caution: When enlarging gland holes, be sure to remove ALL resulting debris from the RC5 EASS IP65 enclosure when done. Avoid contaminating the RC5 enclosure with metal particles on drill bits and other tools. -
Page 10: Main Power Connection
Wago connector. Follow instructions and procedures provided by Wago for part number 222-412. Keep internal AC wiring short and neat, without excess length within the RC5 EASS IP65 enclosure. Cable-tie the incoming AC wiring to the Class 2 power supply wiring in a position that ensures the Wago connector remains below the power supply, within the power wiring area outlined by white lines on the circuit board. -
Page 11: Data Cable Connection
Data Cable Connection E nsure that data cabling is kept separate from AC power wiring and the two cannot come Important: in contact with each other. Remove only as much sheathing and insulation from data cable conductors as needed to make connections without difficulty. -
Page 12: Antenna Connection
and must not be co-located or operating in conjunction with any other antenna or transmitter. The RC5 EASS IP65 cannot be operated without an antenna attached to the RP-SMA connector at the top of the enclosure. Caution: ONLY approved 900MHz antennas may be used with RC5 EASS IP65 transceivers. -
Page 13: Device Configuration
PC and Mac. Software can be downloaded from: https://www.rc4wireless.com/download/ Remote configuration requires an RC5 device to be connected to the computer running the software. If you do not have an RC5 Dongle device and associated instructions, contact RC4 Wireless for additional assistance. -
Page 14: Automatic Transmit / Receive Functionality
Otherwise, if wired DMX data is present at the DMX data cable connections, the transceiver will behave as a transmitter and broadcast wireless DMX data to receivers. Contact RC4 Wireless Your satisfaction is very important to us. Do not hesitate to contact us for assistance.
