RA Technik HD-S1P Installation, Operation & Maintenance Instructions

Water & Temperature Sensing Alarm System (Battery Operated)
Installation, Operation & Maintenance Instructions

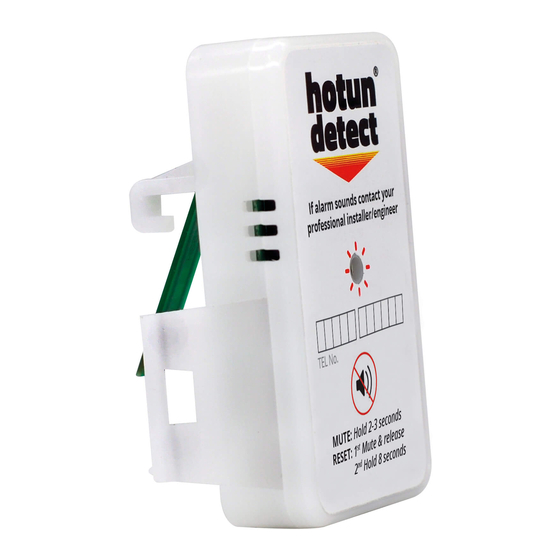

General overview of hotun detect

• Audible (72dBA) and visual alarm unit for T/PRV discharges or water tank overflow
• Operational features: Set-up check/Unit on, Alarm stage warning, Battery condition, Auto low power alert
• Auto-mute/Auto-reset with manual override
• Senses water and temperature in four stages to aid fault diagnosis
• Helps save water and energy
• Complies with G3 Regulations to aid visually and mobility impaired
• Simple clip-on design and fitted within seconds on any hotun tundish
• Battery operated (2032 coin cell, supplied with unit.) Requires no specialist electrical knowledge to fit

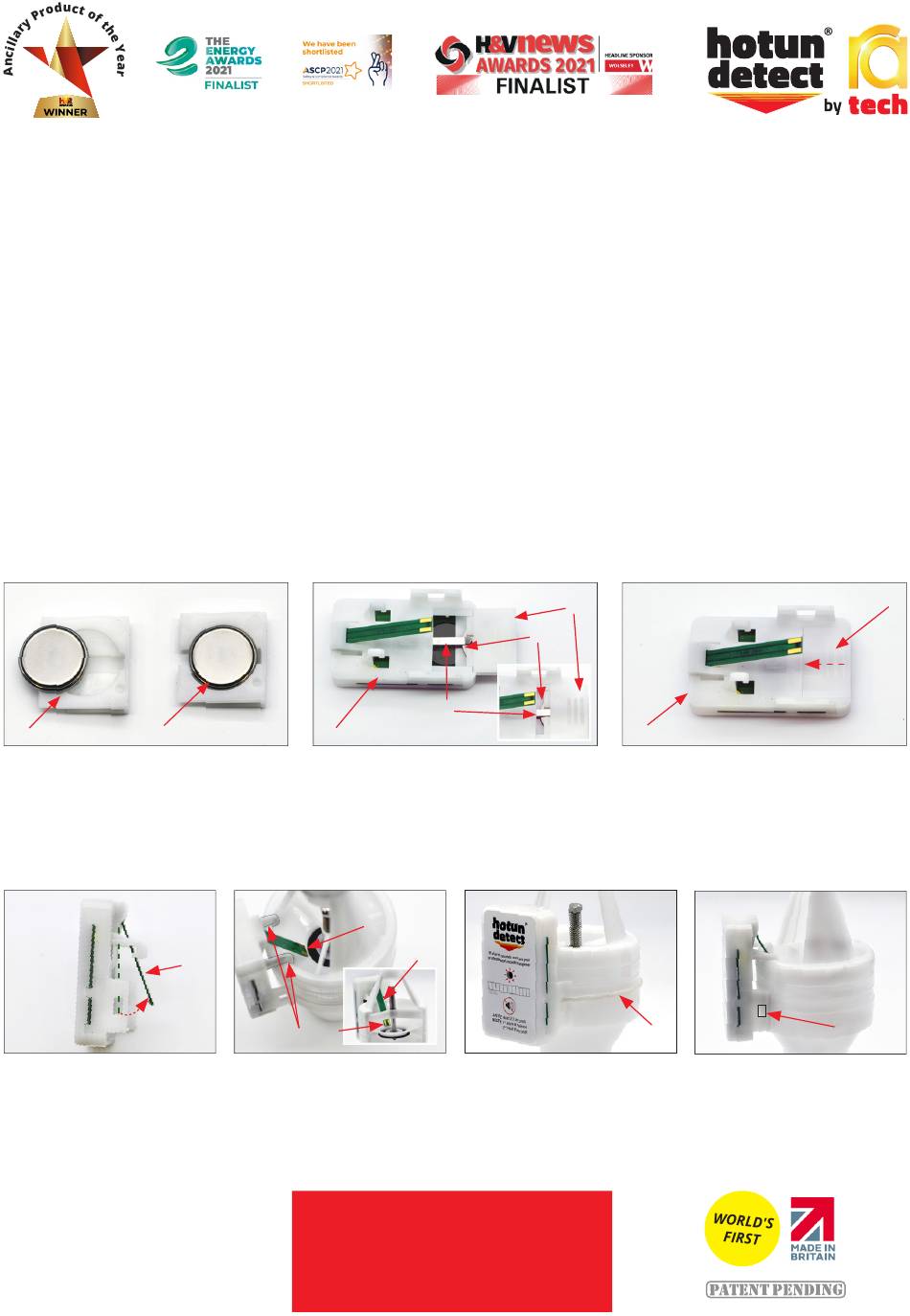

1. Installation – Battery mounting
a b
1. Place the battery [b] into the sliding
door [a] with the positive [+] side facing
away from you
2. Installation – onto hotun tundish
The unit has a simple mounting (hook) arrangement and can be secured to the hotun tundish with the supplied cable tie.
e
1. Before placing Detect onto
tundish, carefully pull the
sensor board [f] slightly away
from the casing to [e].

Package Contents

1 x hotun detect,
1 x 2032 coin cell battery,
1 x Cable tie
(Product Code HD-S1P & HD-S2P)
c
2. Insert battery door [a] into the
main casing body [c] ensuring that the
battery [b] is under the spring clip [d]
f
h
g
2. Locate mounting hooks [g],
onto tundish side, ensuring
that the sensor board [f] is
positioned to touch inside [h].
Prefer to watch a video
of the installation?
www.hotun.co.uk/media
b
d
h
f
3. If required, hotun detect
can be secured to the hotun
tundish using the supplied
cable tie [i].
View it now at
hotun detect – it makes hotun sense
a
c
3. Slide the battery door [a] into the
main casing body [c]. The door should
with a "click"
i
4. Feed the cable tie through
holes [j] and wrap tie around
tundish and secure lightly,
trimming any excess cable
tie to suit
Patent No. GB1718199.1
