Summary of Contents for Mouser Electronics AIO-CM4-101
- Page 1 AIO-CM4-101 User Manual Release 1.0...
- Page 2 Chipsee Products Naming Rules CS12800RA4101A-C111 Chipsee Product Abbreviations Horizontal Resolution Means 800 Pixel Means 1024 Pixel Means 1280 Pixel Means 1440 Pixel Means 1920 Pixel...
- Page 3 Vertical Resolution Means 480 Pixel Means 600 Pixel Means 768 Pixel Means 800 Pixel Means 900 Pixel Means 1024 Pixel Means 1080 Pixel Based on Raspberry Pi CM4 LCD Dimension Means 5.0 Inch Means 7.0 Inch Means 8.0 Inch Means 9.7 Inch Means 10.1 Inch Means 10.4 Inch Means 12.0 Inch...
-
Page 4: Hardware Features
PCB Version CM4 Version Number Hardware Features Key Features: Raspberry Pi CM4; Quad Cortex-A72 at CPU Module 1.5GHz 1 TF card slot designed for storage Storage expansion 10.1 inch IPS LCD, 1280* 800 Pixel Display Resolution, brightness: 350nit Ten-Point Capacitive Touch with 1.0mm Touch Armored Glass 2 x USB 2.0 Host connector, 1 mini-USB OTG... - Page 5 One relay with “Normally Connected” and Relay “Normally Open” Output WiFi/BT WiFi/BT module comes with the CM4 Internal Zigbee supported, NOT mounted by ZIGBEE default Internal 4G/LTE module supported, NOT 4G/LTE mounted by default Camera on the front panel, NOT mounted by Camera default Power Input...

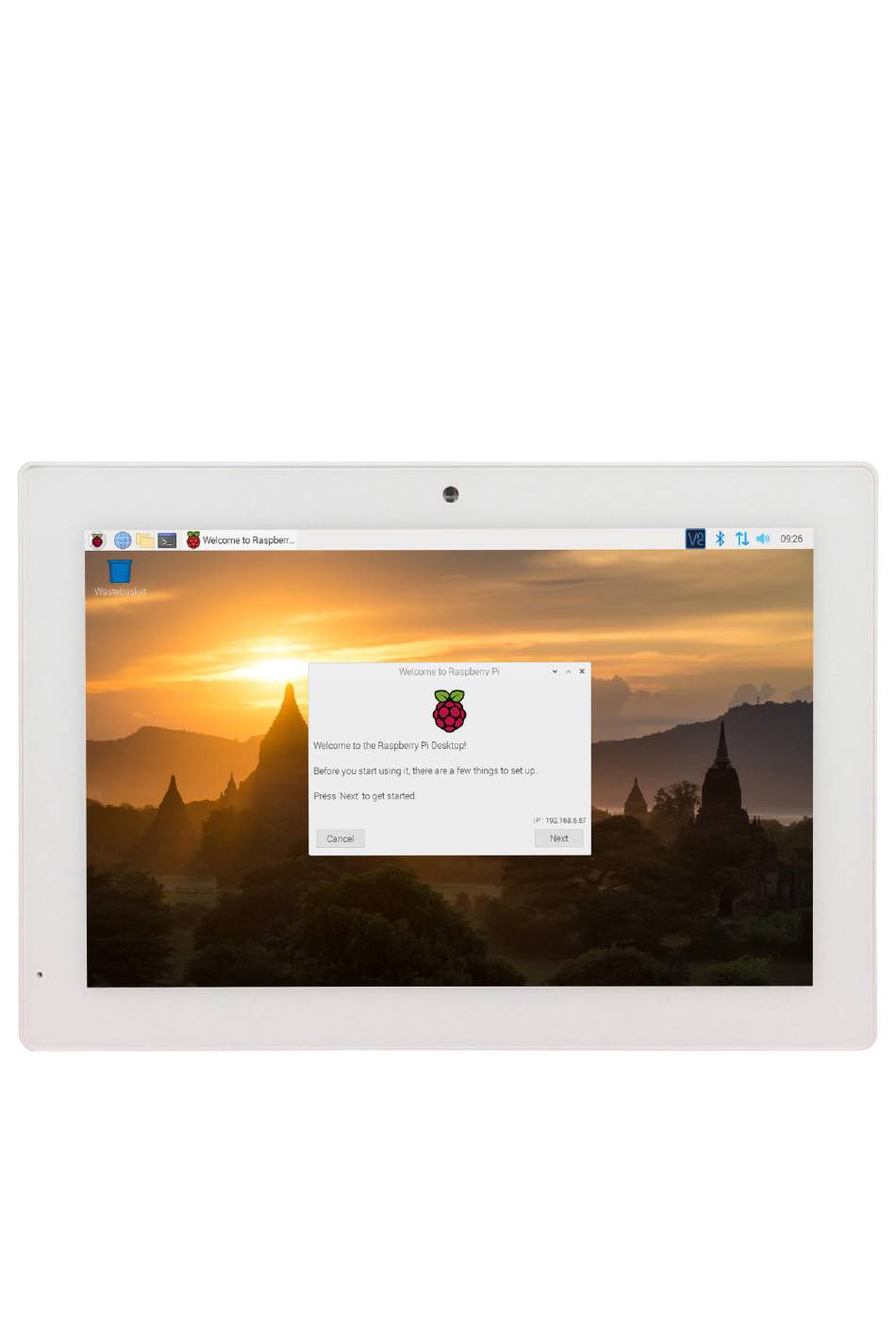

- Page 6 C111 Figure 1: Front View (Debian)
-
Page 7: Power Input Connector
Figure 2: Back View Figure 3: Side View with available connectors Power Input Connector The product CS12800RA4101A uses a wide-range power input DC... -
Page 8: Status Led
9~36V. The total power consumption is typically about 6W. The Power Input connector is a 4.0/1.7mm DC connector, as shown in Figure 3. For a proper DC power adapter refer to Figure 4. Figure 4: Power Adapter Status LED This product has an LED status indicator on the backside, as Figure 3 shows. - Page 9 This product also features a Giga LAN connector, as Figure 3 shows. TF Card and SIM Card There are a TF card slot (upper) and a SIM card slot (lower), as shown in Figure 5. The SIM card slot is only used when the 4G/LTE module is mounted.
- Page 10 RS232+RS485+Relay Connector The RS485+RS232+Relay connector is a 10-pin 2.5mm connector, as Figure 5 shows. As for the definition of every pin, please refer to Table 2. Table 2 RS232 / RS485 Pin Definition: Pin Number Definition Description Pin 1 System Ground Pin 2 RS232_0_RXD CPU UART0, RS232 RXD signal...
- Page 11 (4) The 120Ω resistor for the RS485 signal is NOT mounted by default. (5) The Relay Max switching voltage is 125VAC or 60VDC. The maximum switching current is 1A. Rated load is 0.3A at 125VAC and 1A at 30VDC. Camera and Mic Input The product CS12800RA4101A has a camera on the front panel, as shown in Figure 6, that is not mounted by default.
- Page 12 There are 3 buttons on the backside of the case that work as Audio output Volume+, Volume-, and boot mode selection, as Figure 7 shows. The product CS12800RA4101A boots from the internal eMMC by default. If you want it to boot from the USB OTG connector, please press the Boot Mode button BEFORE power- on, and release it 3 seconds after power-on.
- Page 13 Figure 8: Front Panel Dimension...
- Page 14 Figure 9: Backside Dimension Figure 10: Side Dimension Mounting 1. Metal stand, as shown in Figure 11, is shipped with the product:...
- Page 15 Figure 11: Stand Mounting 2. VESA mounting is shown in Figure 12. Please note that the base stand is not included by default.
-
Page 17: How To Get Support
Figure 12: VESA Mounting How to Get Support... - Page 18 Please feel free to contact us with any questions, queries or suggestions. If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution. If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details.
- Page 19 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Chipsee CS12800RA4101A-C111...
