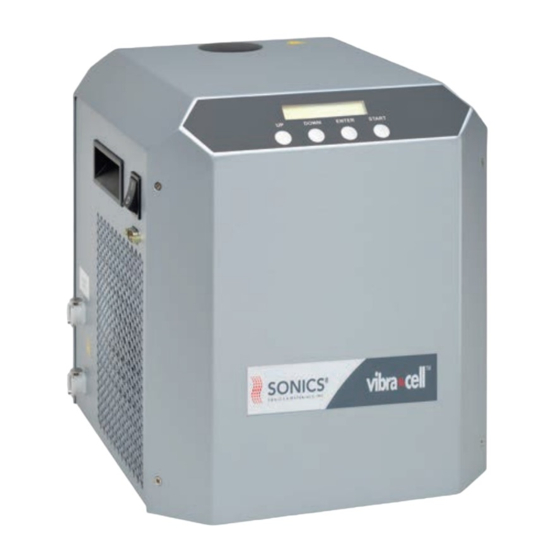

Recirculating Chiller
Model #830-00905 / 830-00906
Operation Manual
Sonics & Materials, Inc.
53 Church Hill Road
Newtown, CT 06470 USA
Phone: 203.270.4600
info@sonics.com
www.sonics.com
Rev. 12-21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 830-00905 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sonics 830-00905

  • Page 1 Recirculating Chiller Model #830-00905 / 830-00906 Operation Manual Sonics & Materials, Inc. 53 Church Hill Road Newtown, CT 06470 USA Phone: 203.270.4600 info@sonics.com www.sonics.com Rev. 12-21...
  • Page 2: Table Of Contents

    Table of Contents SAFETY PRECAUTIONS AND SYMBOLS _____________________________________________ 2 SECTION 1 _________________________________________________________________________ 3 ______________________________________________________________________ 3 NTRODUCTION SECTION 2 _________________________________________________________________________ 4 _____________________________________________________________________ 4 PECIFICATIONS SECTION 3 _________________________________________________________________________ 5 __________________________________________________________________________ 5 3.1 Electrical Connections (see figure 3) _______________________________________________ 6 3.2 Plumbing Connections (see figure 3) _______________________________________________ 6 3.3 Air Considerations _____________________________________________________________ 7 SECTION 4 _________________________________________________________________________ 8 __________________________________________________________________________ 8...
  • Page 3 CE Declaration of Conformity Sonics and Materials declare under our sole responsibility that the Sonics #830-00905, 830-00906 Recirculating Chiller meets the provisions of the directives: 2004/108/EC EMC Directive 2006/95/EC Low Voltage Directive EN 61326-1: 2006 Emissions and Immunity EN 61000-3-2: 2006...
  • Page 4: Safety Precautions And Symbols

    Never operate the chiller within 5 ºC of the coolant’s freezing point.  Only water is recommended when using a #830-00905 with an ultrasonic processor and cup  horn/microplate horn accessory. When using a #830-00906 always use only proper coolants as specified in manual.
  • Page 5: Section 1

    RODUCT #830-00905/830-00906 Manual HERMOELECTRIC CHILLER ECTION __________________________________________________ NTRODUCTION The recirculating chiller utilizes thermoelectric technology to deliver up to 400 Watts of cooling capacity without the use of compressors or refrigerants. The system provides 1 liter per minute of constant temperature coolant, with PID control for both cooling and heating.
  • Page 6: Section 2

    800 Watts @ 20°C in 20°C ambient air Noise Level (at 1 meter): < 63 dBA (60 dBA and 49 dBA options available) Coolant / Process Fluid #830-00905: DI water only Coolant / Process Fluid #830-00906: DI Water, Koolance (27% propylene glycol / water mix)
  • Page 7: Section 3

    ECTION _______________________________________________________ Figure 3A: 830-00905/830-00906 Front Display Screen On/Off Switch Signal Connector 9-Pin D-sub Controller Input Buttons Process Fluid Connectors Figure 3B: 830-00905/830-00906 Side Handle Power Inlet Module IEC 320 power inlet module with two 5X20 fuses Figure 3C: 830-00905/830-00906 Back...
  • Page 8: Electrical Connections (See Figure 3)

    WARNING The #830-00905 and #830-00906 chillers ship with a USA/Canada Electrical Shock and Europe power cord. If a power cord for another Country/Region Hazard: Never Plug...
  • Page 9: Air Considerations

    OOLANT FOR THE CHILLER ONLY Recommended Coolants: Sonics recommends DI water only. For cup horn or microplate horn cooling, DI water only is required. Please contact a Sonics representative before using any other coolants as they may not be CAUTION compatible with the cup horn or microplate horn accessories.
  • Page 10: Section 4

    Process Out (supply) and Process In (return). WARNING 2) When using a #830-00905 chiller: review the Cup horn or Microplate horn accessory instructions for information on how to fill with DI water. When using a #830-00906 chiller: Remove the reservoir cap on...
  • Page 11: Simple Operation

    5.1 S IMPLE PERATION The chiller comes with preset operating parameters that will work well for most applications. If temperature control at one temperature is desired, follow the steps below. 1) Turn on the chiller and wait for display to read TEMP. 2) Press the UP or DOWN keys to change SETTEMP1 to the desired set point.
  • Page 12: Alarms

    5.3 D RAIN ROCEDURE Draining procedures for the #830-00905 and #830-00906 are specific to the accessory they are used with. Please refer to the accessory (e.g. cup horn or flow cell) instructions for information on how to drain the set up.
  • Page 13: Section 6

    The chiller requires at least 3 inches of clearance around these gratings. If airflow is not blocked, contact Sonics for a replacement fan, or for a RMA number to return the WARNING unit for fan replacement.
  • Page 14 12 or 24VDC power supply has failed, the diaphragm pump has failed, or the LCD display has failed. Contact Sonics for a RMA number to return the unit for replacement of the power supply, diaphragm pump, or display.
  • Page 15: Section 8

    ECTION _____________________________________________ ECHNICAL UPPORT Customer service is our highest priority. Please contact us immediately for technical assistance if you have questions or concerns. Hours: 8 a.m. to 5 p.m. Eastern Time, Monday - Friday Telephone: 203-270-4600 E-mail: info@sonics.com . 12-21...
  • Page 16: Warranty Policy

    Products, which have received an RMA, must be received at Sonics’ factory, within 30 days or the reporting date will be moved ahead 30 days and a new 30-day waiting period will begin. Customers shall pay shipping cost of returning any unit to Sonics and Sonics shall pay shipping cost of returning any unit repaired under warranty to the customer.
