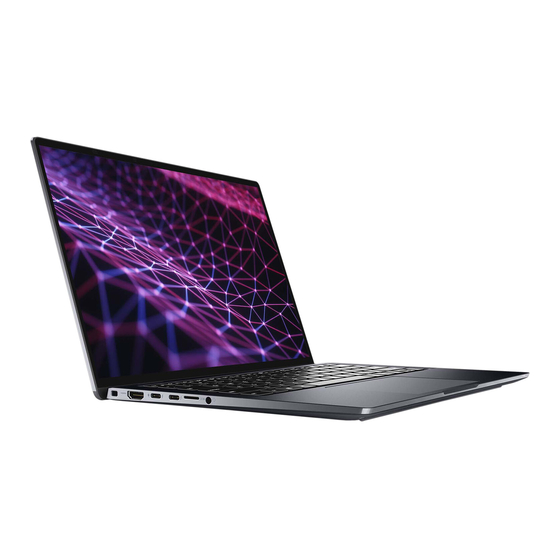

Latitude 9430
Setup and Specifications
Regulatory Model: P141G/P142G
Regulatory Type: P141G002/P142G002
April 2022
Rev. A00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Latitude 9430 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dell Latitude 9430

  • Page 1 Latitude 9430 Setup and Specifications Regulatory Model: P141G/P142G Regulatory Type: P141G002/P142G002 April 2022 Rev. A00...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2022 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
  • Page 3: Table Of Contents

    Contents Chapter 1: Set up your Latitude 9430.................... 4 Chapter 2: Chassis overview......................6 Right....................................... 6 Left......................................6 Top......................................7 Front....................................... 8 Bottom....................................9 Service Tag................................... 9 Modes....................................10 Battery charge and status light .............................12 Chapter 3: Specifications of Latitude 9430.................. 13 Dimensions and weight..............................
  • Page 4: Chapter 1: Set Up Your Latitude 9430

    Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, search in the Knowledge Base Resource at www.dell.com/support. For Windows: Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
  • Page 5 SupportAssist proactively checks the health of your system's hardware and software. When an issue is detected, the necessary system state information is sent to Dell to begin troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows operating system.
  • Page 6: Chapter 2: Chassis Overview

    Chassis overview Right 1. Antenna (WWAN only) 2. Air vents 3. USB 3.1 Gen 1 port with PowerShare Left 1. Wedge-shaped lock slot 2. HDMI 2.0 port 3. Two Thunderbolt 4 ports with DisplayPort Alt Mode/USB4/Power Delivery 4. microSIM slot (WWAN only) change to microSD-card slot 5.
  • Page 7: Top

    1. Quad-array microphones 2. Power button with optional fingerprint reader 3. Right speaker 4. Clickpad 5. Left speaker Chassis overview...
  • Page 8: Front

    Front 1. Proximity Sensors 2. IR LED 3. IR Camera light 4. IR LED 5. LED 6. Camera (RGB) 7. ALS 8. Display 9. Battery-status light/Diagnostic-status light Chassis overview...
  • Page 9: Bottom

    Bottom 1. Air vents 2. Service tag label Service Tag The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information. Chassis overview...
  • Page 10: Modes

    Modes The following modes are applicable for your 2-in-1 computers. Notebook Chassis overview...
  • Page 11 Tablet Stand Tent Chassis overview...
  • Page 12: Battery Charge And Status Light

    Battery charge and status light The following table lists the battery charge and status light behavior of your Latitude 9430. Table 2. Battery charge and status light behavior Power Source LED Behavior System Power State Battery Charge Level AC Adapter...
  • Page 13: Chapter 3: Specifications Of Latitude 9430

    Specifications of Latitude 9430 Dimensions and weight The following table lists the height, width, depth, and weight of your Latitude 9430. Table 3. Dimensions and weight Description Values Height: Front height 8.46 mm (0.33 in.) Rear height 13.91 mm (0.54 in.) Width 310.59 mm (12.22 in.)
  • Page 14: Chipset

    Chipset The following table lists the details of the chipset supported by your Latitude 9430. Table 5. Chipset Description Values Chipset Integrated with the processor Processor Generation Intel Core i5/i7 vPro processors DRAM bus width 64-bit Flash EPROM 32 MB...
  • Page 15: External Ports

    To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Wireless module The following table lists the Wireless Local Area Network (WLAN) module supported on your Latitude 9430. Table 9. Wireless module specifications Description Values...
  • Page 16: Wwan Module

    Values ● AES-CCMP ● TKIP Bluetooth Bluetooth 5.2 WWAN module The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 9430. Table 10. WWAN module specifications Description Option one Option two Model number Qualcomm Snapdragon X20 Global...
  • Page 17: Storage

    M.2 2230, Class 35 solid-state drive, PCIe NVMe Gen4 x4 256 GB Self-encrypting drive Media-card reader The following table lists the media cards supported by your Latitude 9430. Table 13. Media-card reader specifications Description Values Media-card type One microSD-card slot Media-cards supported ●...
  • Page 18: Camera

    You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. Keyboard shortcuts Camera The following table lists the camera specifications of your Latitude 9430. Table 15. Camera specifications Description Values Number of cameras...
  • Page 19: Power Adapter

    For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article 4027871 at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Latitude 9430. Table 17. Power adapter specifications Description Option one Option two...
  • Page 20: Display

    CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption.
  • Page 21: Fingerprint Reader (Optional)

    3.70 W Anti-glare vs glossy finish Anti-glare Anti-reflection, Anti-smudge Touch options Fingerprint reader (optional) The following table lists the specifications of the optional fingerprint-reader of your Latitude 9430. Table 20. Fingerprint reader specifications Description Values Fingerprint-reader sensor technology Trans-capacitive sensing...
  • Page 22: Gpu-Integrated

    Dell ExpressSign-In 1.0 (via Proximity Sensor) Dell ExpressSign-in 2.0 (via Intel Camera Sensing Technology) Wake/Power on with lid open GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 9430. Table 22. GPU—Integrated Controller External display support...
  • Page 23: Operating And Storage Environment

    Operating and storage environment This table lists the operating and storage specifications of your Latitude 9430. Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Table 25. Computer environment Description Operating Storage Temperature range 0°C to 40°C (32°F to 104°F) -40°C to 60°C (-40°F to 140°F)
  • Page 24: Chapter 4: Keyboard Shortcuts

    Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions.
  • Page 25 Table 26. List of keyboard shortcuts (continued) Function key Primary behavior Function key Secondary behavior Fn + F10 Operating system and Print Screen application specific F10 behavior Fn + F11 Operating system and Home application specific F11 behavior Fn + F12 Operating system and application specific F12 behavior...
  • Page 26: Chapter 5: Getting Help And Contacting Dell

    Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 28. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
