ADJ AH01T User Manual

Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Code: 120-00014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AH01T and is the answer not in the manual?

Questions and answers

Summary of Contents for ADJ AH01T

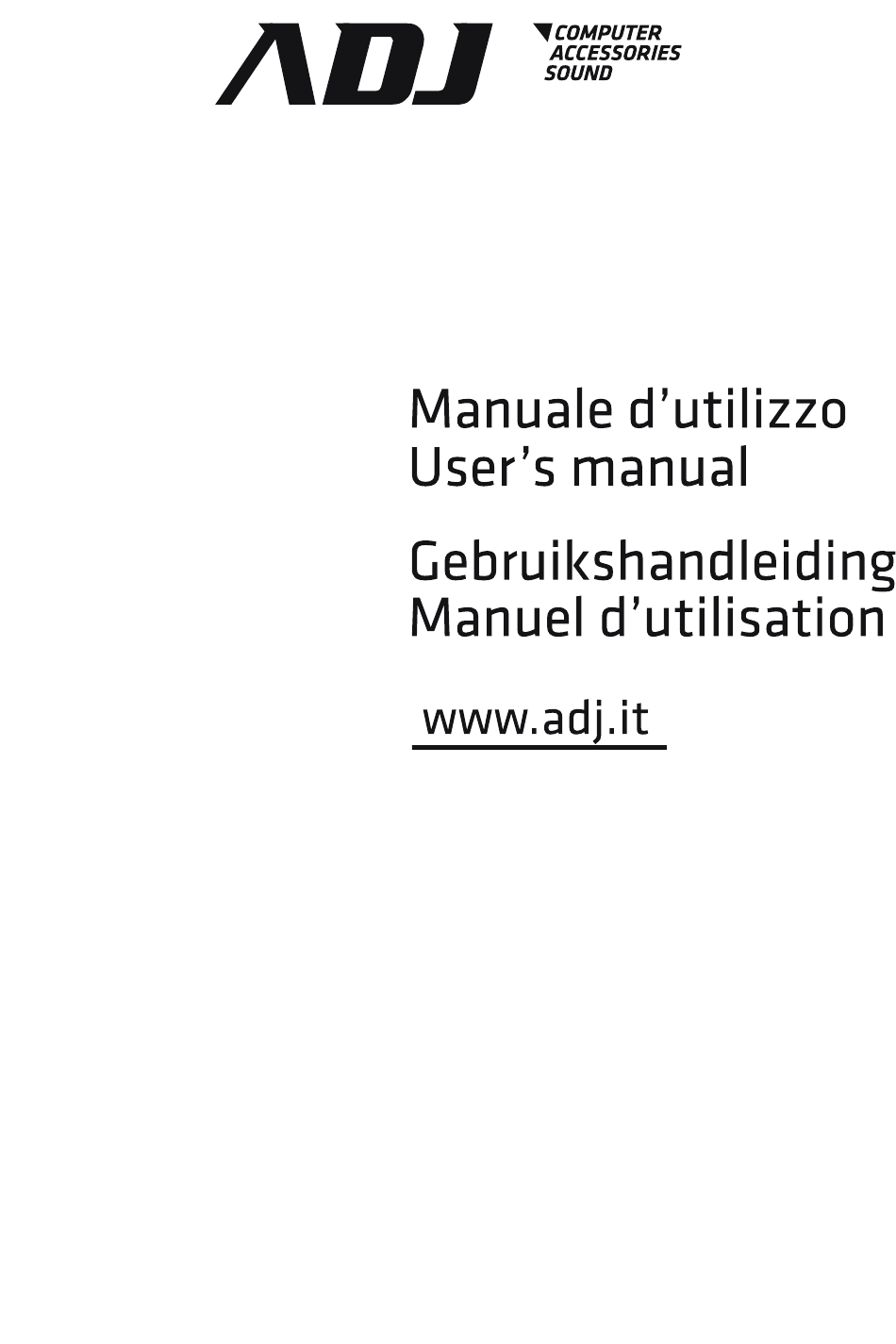

  • Page 1 Code: 120-00014...
  • Page 2 D.Lgs. 2 febbraio 2002, n. 24. In caso di guasto, si prega di rivolgersi al punto vendita dove è stato effettuato l’acquisto. Per le norme di garanzia consultare il sito www.adj.it Il simbolo del cestino barrato riportato sull’apparecchio indica che il prodotto,...
  • Page 3 Touch Backup e pulsante di Duplicazione. Inoltre è progettato con una semplice interfac- cia USB 3.0 plug-and-play. La docking station AH01T è compatibile con Win 7, Win 8, Win 8.1, Win 10, Mac OS 9.1, Linux 2.4.X o successivi. 2.0 Specifiche Tecniche •...
  • Page 4 5.0 Configurazione hardware Funzionamento del dispositivo (tramite collegamento con cavo USB 3.0) • Inserire l’hard disk correttamente all’interno della docking station • Collegare la docking station al computer tramite cavo USB • Collegare il cavo di alimentazione alla docking station e accenderla •...
  • Page 5 Si prega di attenersi alla seguente procedura: Per Win 7/8/8.1/10 • Cliccare con il tasto destro del mouse su “Risorse del computer”, scegliere “Gestione”, scegliere “Gestione del disco” della lista. • L’interfaccia di funzionamento viene visualizzata sul computer, cliccare sull’unità con il tasto destro e scegliere “Formatta”.

  • Page 6: Warranty

    English ADJ thanks you for purchasing this product. For extensive service, please visit the web- site: www.adj.it Do not open or repair this device. Do not use the divice in a damp environment. Clean the device with a dry cloth. The device meets the essential requirements and other relevant conditions of the applicable European directives.

  • Page 7: Features & Specifications

    1.0 Introduzione The AH01T Double Hard Drive Dock/Stand-Alone Duplicator is a versatile, practical unit that functions as both a hard drive dock and stand-alone HDD duplicator. This device supports SATA 2.5-inch and SATA 3.5-inch hard drives. It also features the LED progress indicator, One Touch Backup or Duplicate button.
  • Page 8 5.0 Hardware Setup Device Mode (USB3.0 to SATA External Dual Hard Drive) • Install your SATA hard drive properly to the port connector on the docking station • Connect the docking station to your computer by USB cable • Connect the power adapter to the enclosure and power up the docking station •...
  • Page 9 • The operating interface will show on the computer, Subarea Format following the operating interface. 6.2 Go to “My Computer” , locate the removable disk, right click on it, and select “format” from the drop-down list, follow the instructions to complete the formatting process. Note: By this method to format your drive it will result in a single partition in largest drive capacity, which is also highly recommended.
  • Page 10 Nederlands ADJ dankt u voor uw aankoop van dit product. Voor uitgebreide service, bezoek de web- site: www.adj.it Open of herstel dit apparaat niet zelf . Gebruik het apparaat niet in een vochtige omge- ving. Reinig het apparaat met een droge doek. Het apparaat voldoet aan de essentiële eisen en andere relevante voorwaarden van de toepasselijke Europese richtlijnen.
  • Page 11 1.0 Inleiding Deze Double Hard Drive Dock/Stand-Alone Duplicator is een praktisch apparaat dat zowel als HDD Docking en als HDD-copier functioneert. Dit apparaat ondersteunt harde schijven SATA 2.5-inch en SATA 3.5-inch. Met LED-voortgang-indicator. One Touch Backup of du- pliceer toets. Met USB 3.0 plug-and-play interface. Deze Double Hard Drive Dock/Stand- Alone Duplicator is compatibel met Win 7, Win 8, Win 8.1, Win 10, Mac en Linux operating systems.

  • Page 12: Hardware Setup

    5.0 Hardware Setup Device Modus (USB3.0 to SATA External Dual Hard Drive) • Verbind uw HDD met de poortconnector op uw Docking station • Verbind uw behuizing met uw computer dmv de USB-kabel • Verbind de power adapter met uw behuizing en zet deze aan . •...
  • Page 13 • Het bestandssysteem verschijnt op de computer. Formatteer de partities naargelang uw bestandssysteem. Opgelet : Voor Win 7, Win 8, Win 8.1, Win 10, gelieve NTFS Format te gebruiken, als de capaciteit lager is als 32GB, kunt u FAT32 format gebruiken . 6.2 Ga naar “My Computer”, localiseer de draagbare schijf, rechter klik op de schijf en selecteer “format”...

  • Page 14: Garantie

    Français ADJ vous remercie d’avoir acheté ce produit. Pour un service complet, veuillez consulter le site : www.adj.it Ne pas ouvrir ou réparer l’appareil. N’utilisez pas cet appareil dans un environnement humide. Nettoyez l’appareil avec un chiffon sec. L’appareil répond aux exigences essentielles et aux autres conditions des directives européennes applicables.

  • Page 15: Specifications

    1.0 Introduction • Station d’accueil USB v3.0 pour 2 disques durs SATA 3.5’’/2.5’’ • Bouton de sauvegarde OTB sous Windows® avec utilitaire • Copiez un disque dur via un bouton sans PC • Compatible USB v2.0/v1.1 & Win 7, Win 8, Win 8.1, Win 10 •...
  • Page 16 5.0 Connection Dispositif Mode (USB3.0 pour SATA double disque dur externe) • Reposer vos disques durs SATA correctement au connecteur du station d’acceuil • Branchez le station d’accueil à votre ordinateur par câble USB • Connectez l’adaptateur a l’appareil et allumez l’ordinateur •...
  • Page 17 Win 7, Win 8, Win 8.1, Win 10 • Clic droite sur « Mon ordinateur », choisissez « Manager » choisissez « disk manager » de la liste • Le fonctionnement interface s’affiche sur l’ordinateur Attention : Sur Win 7, Win 8, Win 8.1, Win 10, veuillez choisir le Format NTFS, lorsque la capacité...
