SafeTrust SABRE Quick Start Manual

Hide thumbs Also See for SABRE:

Advertisement

Quick Links

Download this manual
8830-000
SABRE Module Quickstart Guide
Last Updated: February 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the SABRE and is the answer not in the manual?

Questions and answers

Related Manuals for SafeTrust SABRE

Summary of Contents for SafeTrust SABRE

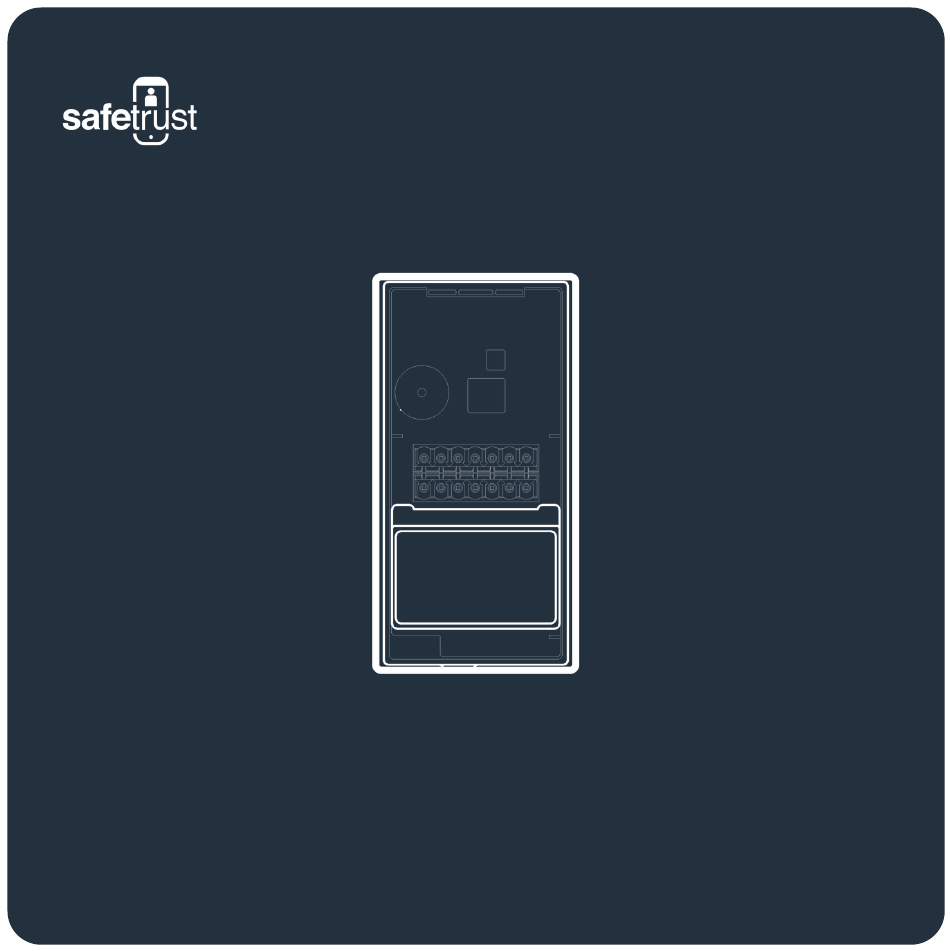

  • Page 1 8830-000 SABRE Module Quickstart Guide Last Updated: February 2022...

  • Page 2: Table Of Contents

    In the box What you'll need Contents Installation Configuration Regulatory Support Safetrust Inc. | safetrust.com sales@safetrust.com...

  • Page 3: In The Box

    In the box Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 4 SABRE Module The SABRE Module is a plug-in installation meaning there is no rewiring necessary. Safetrust Inc. | safetrust.com sales@safetrust.com...

  • Page 5: What You'll Need

    What you'll need Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 6 A few minutes of your time Snake eye screw driver to remove security screw from the base of the reader Safetrust Inc. | safetrust.com sales@safetrust.com...

  • Page 7: Installation

    Installation Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 8 Remove the mounting screw and pull the reader in an ‘out and upward’ motion to remove it from the wall mount bracket. Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 9 Position the SABRE MODULE onto the reader's connector and press firmly to make a solid connection. (Note that the reader's connector is below the wiring — pictured above as a terminal strip but the wiring may alternatively be pigtail.) Safetrust Inc. | safetrust.com...
  • Page 10 MODULE will receive power and will be operational within 5 seconds. Note: Install of the SABRE Module will generate a reboot of the HID Reader and the SABRE Module. You will notice a series of beeps, from the HID Reader when the SABRE module reboots.

  • Page 11: Configuration

    Configuration Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 12 Open the Safetrust Wallet APP and select Manage Sensor tab. Make sure your system admin has set you up with this role. Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 13 With the Admin Installer tab open from the App, bring the phone in range of the SABRE Module and once visible from the App, highlight and select “Configure”. Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 14 • Specify the Type of access from the dropdown (eg. Door, Gate etc.) • Assign a short Name and Description using alphanumeric characters. • Choose an Output for the sensor (the default is set to Wiegand). Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 15 When the Module information is saved successfully to Credential Manager and assigned to the Identity System, the new description will appear in the Manage Sensor tab with a unique serial number assigned. Safetrust Inc. | safetrust.com sales@safetrust.com...

  • Page 16: Regulatory

    Regulatory Information Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 17 (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CE Marking: Safetrust hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 18: Support

    Thank purchasing Safetrust SABRE Module. Support If for any reason you need assistance with your installation, please contact your local Sales representative . Sincerely - The Safetrust Team Safetrust Inc. | safetrust.com sales@safetrust.com...
  • Page 19 www.safetrust.com/support...
