Summary of Contents for Acowa PUMA

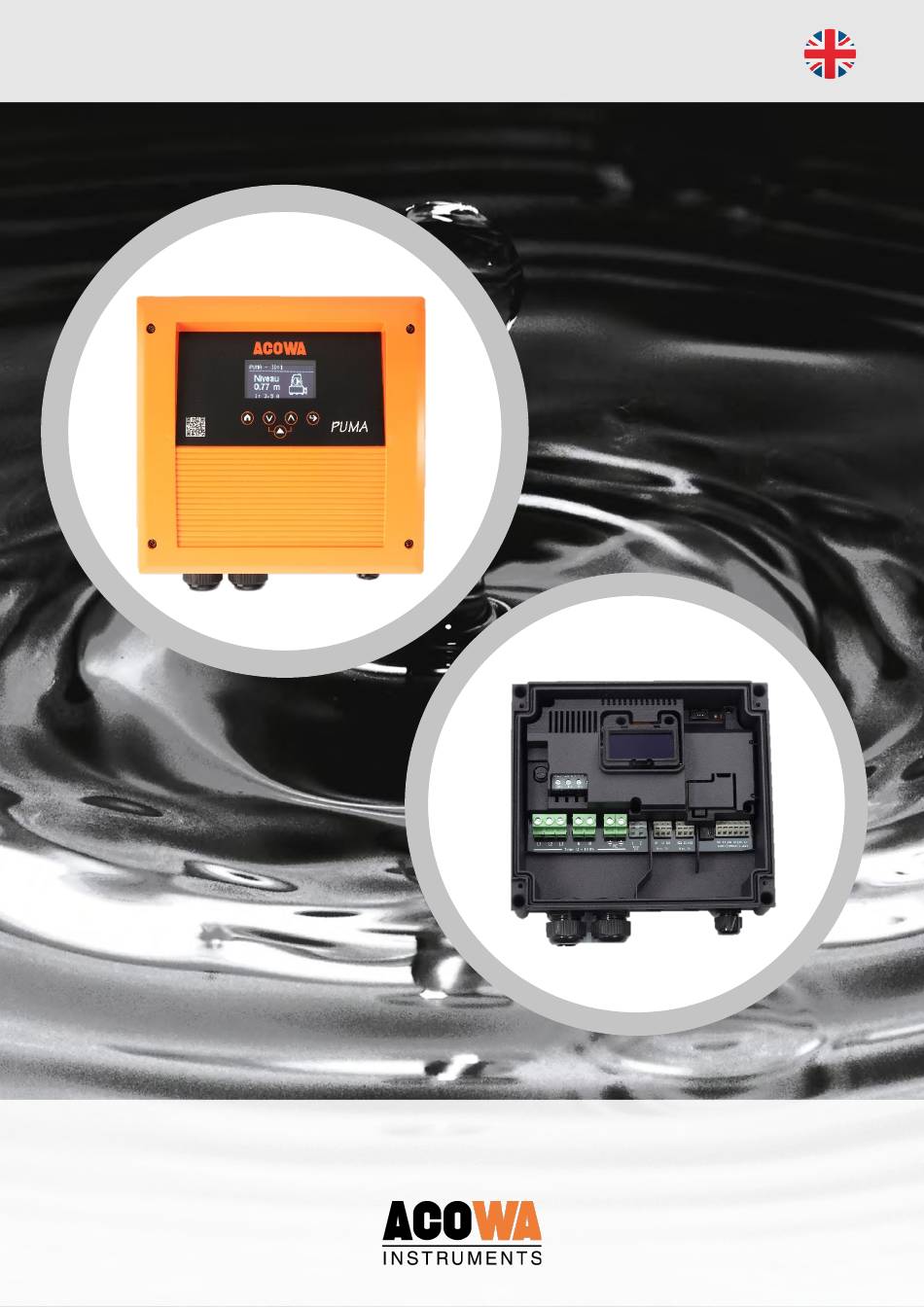

  • Page 1 User manual PUMA...
  • Page 2 User manual User manual ACOWA Puma / AcowaZoo 062022 ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 3: Table Of Contents

    USB connection ............................15 TCP Connection ............................15 AcowaZoo Installation ..........................15 Driver installation ............................. 15 Program installation ..........................15 Configuration ......................17 ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...
  • Page 4 Levels ............................... 36 External gauges............................36 Alarm and Warning............................36 Pumpword: Register 70 ........................... 36 PUMA status: Register 92 ........................37 ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 5: Puma

    PUMA has a unique function for current measurement on all 3 phases as well as phase sequence detection. PUMA has 2 digital inputs for high level switches or the like. Aswell as 2 digital outputs for general alarm etc. PUMA is constructed with a two-part impact resistant IP65 encapsulated housing. The PUMA cabinet can easily be mounted on a wall, in street cabinets and other enclosures due to its compact size of only 23cm in width.

  • Page 6: Puma And Advanced Flow Calculation

    Had the event occurred ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...
  • Page 7 With the PUMA pump control, this data will be available for all pumping stations. It will therefore be possible to identify the areas and stations where an effort should be made, as you can now compare the individual stations in a specific area 1:1.

  • Page 8: Safety Instructions

    Municipal systems. The product is only intended for use in control panels. The product must not be exposed to strong solvents or oil-containing liquids ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...
  • Page 9 The separate collection and recycling of such products will help protect the environment and human health. ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 10: Installation

    -20°C to +50°C Storage temperature -20°C to +60°C Built-in power supply PUMA has a built-in power supply which is intended for voltage supply of sensors and input and output signals. Power supply output + V: Output voltage 24V DC Output current...

  • Page 11: Digital Inputs

    1-phase 230V AC or 3- phase 400V AC Pump size Max 5,5kW Maximum power consumption Motor protection 3-phase electronic current measurement Cable/signal length Max 10m ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 12: Operation

    User manual Operation Overview Front panel connection Pump connection Operator display connection Klixon Digital Power supply Analog input Digital Inputs / PTC outputs ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 13: Installation Guide

    User manual Installation guide 1-phase pump 3-phase pump ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 14: Display

    Display Display 2,4” OLED and operation PUMA comes with a 2.4 ”OLED display. Display structure is intuitively and with fast user understanding and can be operated via push buttons on the front of the panel. There is a pause screen which means that the normal screen display is deactivated after 5 minutes and goes into a pause screen where the level is displayed in different places on the screen.
  • Page 15 Class 5: 2.25 x Ir (max 5 seconds) Class 10: 2.25 x Ir (max 10 seconds.) Class 20: 2.25 x Ir (max 20 seconds.) ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 16: Acowazoo

    To connect to AcowaZoo-Tool via TCP, it must first be set to the correct TCP settings (IP Address, Port, APN). This is done in the AcowaZoo via the USB port. Once the PUMA is configured correctly, then it can be accessed from the AcowaZoo via TCP.
  • Page 17 User manual ”Install” Choose Choose whether to start ACOWA ZOO-Tool after installation. ”Finish” Then choose ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 18: Configuration

    PUMA Details (Page 21) Function buttons Functions associated with writing and reading from PUMA and disk, as well as contact with PUMA via TCP. Open Local Config File Load configuration from hard drive, USB drive, etc. Save Local Config File Save configuration on hard drive, USB drive, etc.

  • Page 19: Function Menu

    Ability to load previously saved configurations Save local config file: Ability to store configurations locally. Load default configuration: Loads a default file that you can continue working on. ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...
  • Page 20 Connect the desired device via the USB port. The status will change to: USB connected. Then press the folder "Open" ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...
  • Page 21 The program then has to be closhed down and AcowaZoo is to be reopened. Help User manual: Opens a user manual About AcowaZoo: Displays the version version of AcowaZoo ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 22: Settings Selection

    TCP at Ip address / port At the same time, details of the PUMA device name and location are displayed/set, as well as communication settings. • • TCP-port ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 23: Pump Setup

    Pump current: Here you enter the rated current of the pump (10 = 1 amp.) Primary sensor: The PUMA pump control can be controlled via a level switch or via an analog level meter. Here, the choice of primary sensor for pump control, analogue measurement via level gauge or digital via level switch or similar is selected.

  • Page 24: Analog Indgang (Ai1)

    User manual Analog Indgang (AI1) The analog input on the PUMA controller is a standard 0-20 / 4-20 mA input, to which a pressure transmitter or other measuring equipment can be connected. The input functions can be set in AcowaZoo when AI1 is selected in the Settings option. AI1 contains the...

  • Page 25: Regulator Function

    This is a warning and not an alarm that can be read on the PUMA status word register 92: bit 12. The PUMA control does nothing but report the warning, the error has no functional consequence in the control.

  • Page 26: Flow Interface

    The entry is a deviation in%. Example: If you enter 30 in the input field, the PUMA control will approve all pumping cycles that deviate by less than 30% compared to the previous one. All deviations above 30%, it will reject and not include in the capacity calculations. If the input value is equal to 0% then the PUMA controller will not perform capacity calculations.

  • Page 27: Digital Inputs (I1 - I2)

    Daily emptying enabled: It is possible to have PUMA run an emptying function at a fixed time of day. You put a check mark in "Daily emptying on/off" and enter the desired time of day. For example, the value 915 will be perceived as the time 9:15.

  • Page 28: Digital Outputs

    High-level switch: Used as a start signal for “running blind” control of pumps if, for example, the level transmitter is faulty. The condition of the high-level switch can be read on the PUMA status word 70: bit 26. (“Running blind” control function version 2, see page 32.) “Running blind”...
  • Page 29 Start level is reached, mixer starts up (run time 60 seconds), 30 seconds later the pump starts up and it will then take another 30 seconds before the mixer stops again. ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 30: Contact Device Via Tcp/Ip

    Enter the IP address and port to get remote control of PUMA via TCP/IP. Upon contact, the program located in the PUMA is retrieved. It is then possible to either make changes online in the PUMA or save a copy of the current program locally and then work on it.

  • Page 31: Device Settings / Advanced Settings

    This results in the following window. Reports and alarms: If the PUMA is used as a stand-alone device that is not connected to a SCADA system, it is possible to receive a daily status SMS and alarm SMS in case of an alarms.
  • Page 32 1 decimal the flow values are multiplied by 10 in the table. NOTE: it is important to start with a data set in the table that is NOT (0,0) as the PUMA perceives (0,0) as being the end of the table.
  • Page 33 User manual Address Description Data type Read/Write Overflow volume yesterday (m3) ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 34: Show Status

    On the right side, the clock in the PUMA can be read, as well as the IP address and signal strength. It is possible to set the clock in the PUMA by clicking on the window over time. You can also reset the modem in the PUMA by clicking on the "Reset Modem"...

  • Page 35: Graphical And Schematic View

    100 registers are found. The filter function shows the specific search value. In case of changes, "reload data" is used to update the search function. ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 36: Register List "Quick-Guide

    Seconds Id number TCP-port 2566 Name 2844 Minuttes GSM-signal GPRS-timeout 2564 Municipal 2854 Geographical Hours IP-Address 2564 2870 location 2548 Month Year ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 37: Levels

    Bit 12: Pump - Back stopped √ √ Bit 13: Pump error - repeatedly (needs to be reset) √ Bit 14: Pump - Manual mode ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...

  • Page 38: Puma Status: Register 92

    Bit 21: Internal Bit 22: Internal Bit 23: Internal Bit 24: Internal √ Bit 25: Waiting for depth pumping √ Bit 26: High level switch ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...
  • Page 39 Copyrights © All Rights Reserved ACOWA Intruments 2020 ACOWA INSTRUMENTS INDUSTRIVEJ 10, 8305 SAMSØ TLF.: +45 72 21 79 79 INFO@ACOWA.DK · WWW.ACOWA.DK ACOWA INSTRUMENTS, Industrivej 10, 8305 Samsø - VAT-no: 36562919 – mail: info@acowa.dk – Phone: +45 7221 7979...
