MEXPO WT-300 G2 User Manual

WT‐300 G2 | User Manual

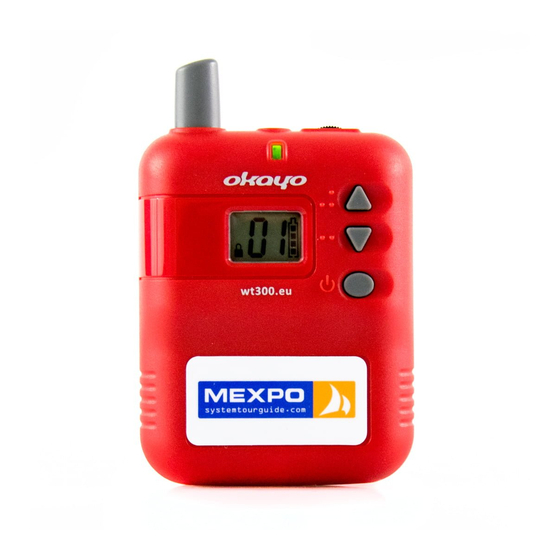

 Illustration
① Antenna
② Power LED indicator (Tx)
 Green: Sufficient power
 Red: Insufficient power
Power / Rx LED indicator (Rx)
 Green: Sufficient power and Tx signal received
 Red: Insufficient power and Tx signal received
 No LED: Tx signal NOT received
③ Up / Down button
④ Power / Set button

Display
Group of un‐interfered
channels
Channel lock
Channel number
 General operation
 Power on
Press the power button for 1 second to turn the device on.
 Unlock and adjust the channel
When the device is on, press and hold both  and  buttons until symbol disappears. Short
press the  and  button to select another preferred channel. The channel will automatically
be locked again when being idled for 1 second.
 Adjust microphone / earphone volume
Tune the volume control on top to adjust the volume of microphone / earphone.
Kindly note listening at highly volume for long periods may damage your hearing.
⑤ Backlit screen
⑥ Lanyard hole
⑦ Microphone volume control (Tx) /
Earphone volume control (Rx)
⑧ 3.5 mm microphone jack (Tx) /
3.5 mm earphone jack (Rx)
⑨ Inbuilt microphone (Tx only)
⑩ Charging port
Battery autonomy
Device with sufficient power
Device with low power. Please change with new
batteries or give a charge
1
