Summary of Contents for Oltens Bateria

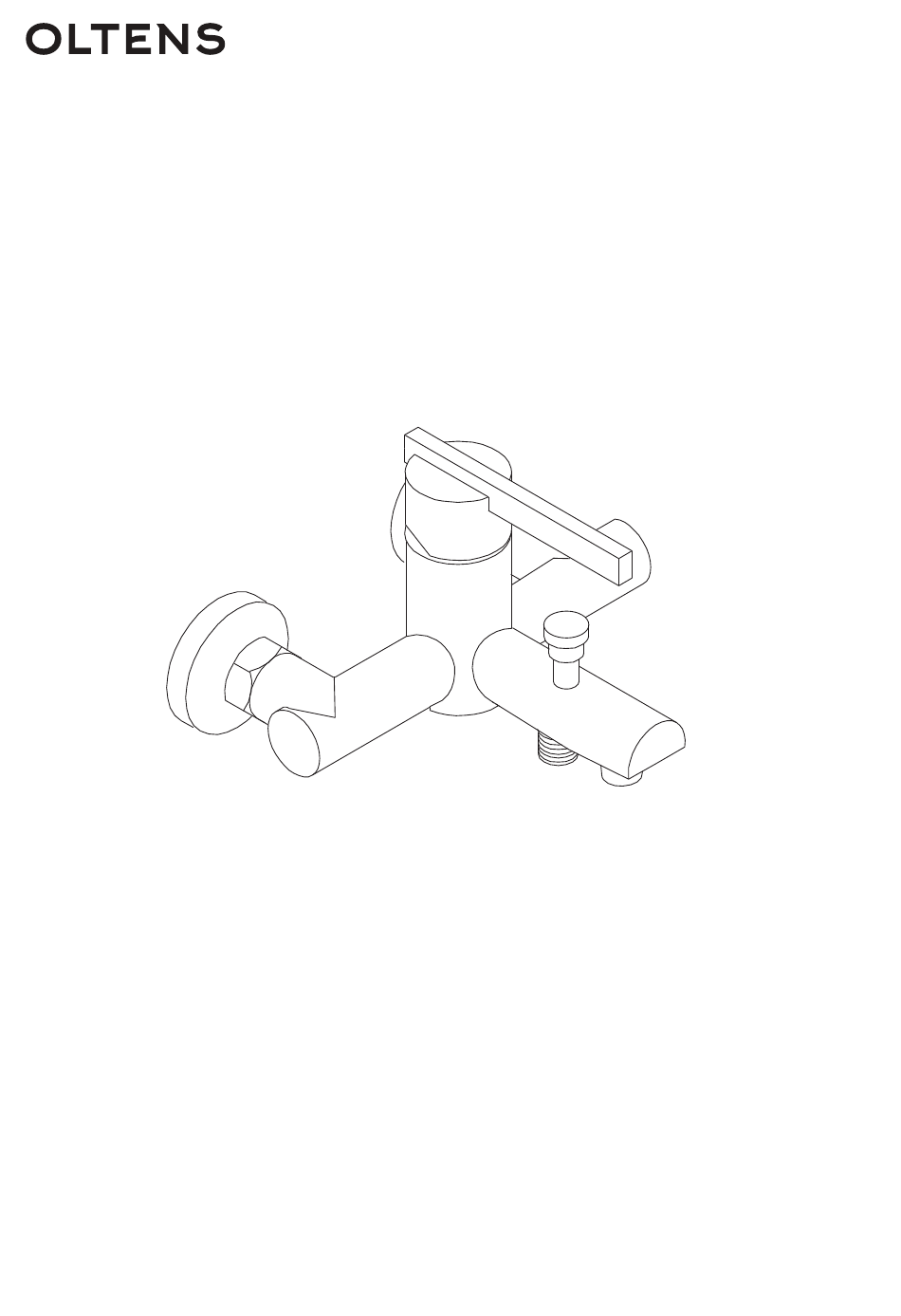

- Page 1 Bath shower mixer tap - fitting guide...
- Page 2 Check the parts needed for the installation against the list Description Quantity Set of screws Screw cap Lever Cover Bonnet nut Ceramic cartridge Tap body Shower diverter Aerator Outlet nozzle Seal Seal Screws Nuts Seal Rosette Offset connector Note! Accessories may change without affecting their function. The presented manufacturing drawings are for illustration purpose only.
- Page 3 Screw in offset connectors (18) to water feed sections ending with female thread G1/2, sealing the connection with an appropriate amount of teflon tape or thread. After the installation, the axes of openings in the offset connectors (from the tap side) must be at the same height, their face surfaces at the same distance from the wall, and the spacing of the openings equal to the distance between axes of connection nuts of the tap...
- Page 4 Flush with clean water and wipe with a dry, soft cloth. For heavier deposits, it is recommended to use special tap cleaning agents, prefera- bly professional Oltens products from the NanoCare and NanoShine series. Never use agents containing alcohol, disinfectants, solvents and strong bases.
