SM800S & SM1000S
Operating Instructions
&
Service Manual
Important Safety Instructions
Storm Machinery
Read all warnings and instructions in this manual.
Do not proceed until you fully understand its contents
www.stormmachinery.co.za
These WARNINGS are included for the health and safety of
sales@stormmachinery.co.za
the operator and those in the immediate vicinity.
Save these instructions.
Advertisement
Table of Contents
Summary of Contents for Storm Machinery SM800S

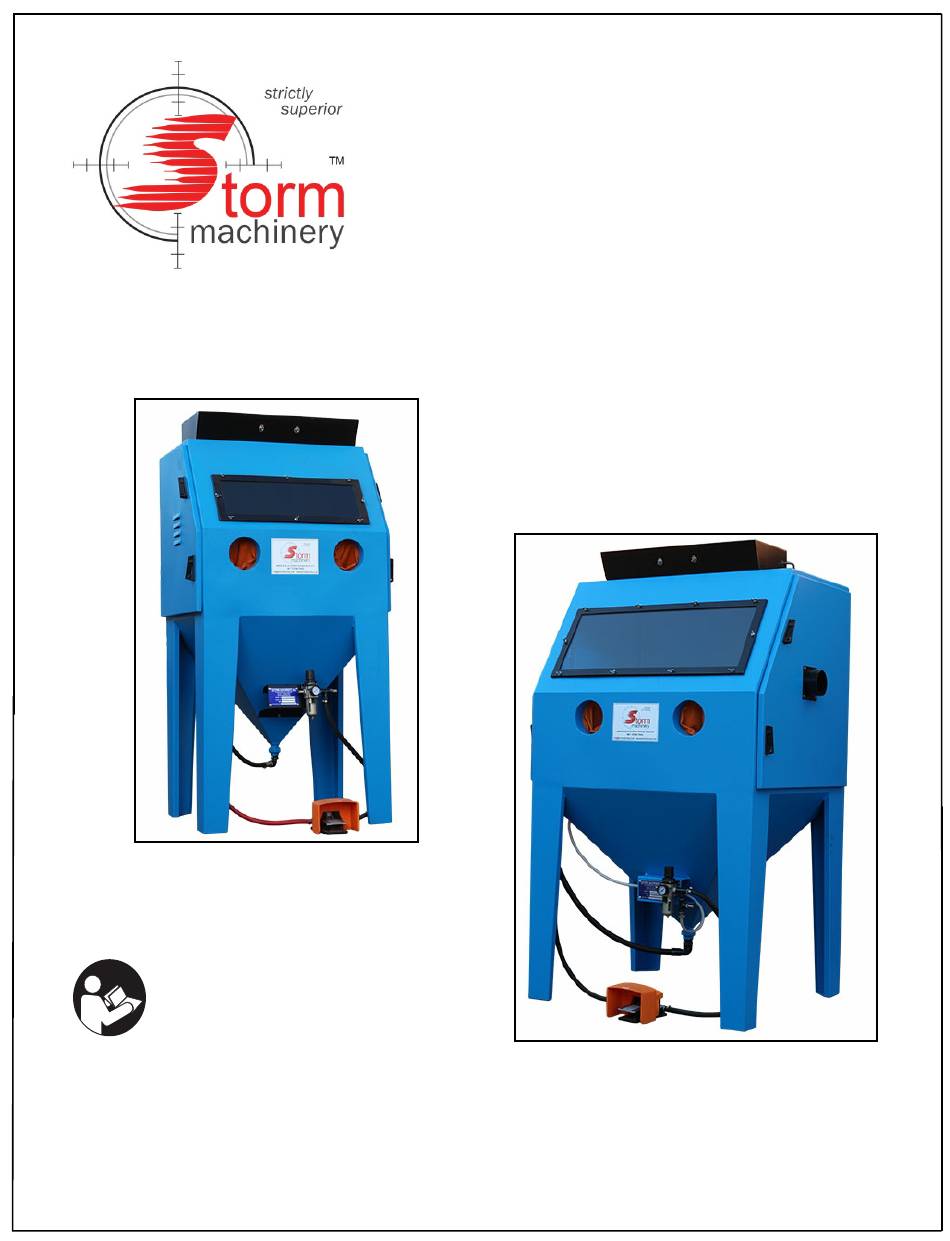

- Page 1 SM800S & SM1000S Operating Instructions & Service Manual Important Safety Instructions Storm Machinery Read all warnings and instructions in this manual. Do not proceed until you fully understand its contents www.stormmachinery.co.za These WARNINGS are included for the health and safety of sales@stormmachinery.co.za...
-
Page 2: Typical Application
INTRODUCTION These cabinets are designed with professional purpose in mind, for maximum efficiency at a low operating cost. This design is enhanced by the use of recyclable media, to blast any and all components that are able to be blasted and that are able to fit inside the cabinets. - Page 3 SM 800 S DIMENSIONS: SM 1000 S DIMENSIONS :...
-
Page 4: Installation
Dry air results in best performance. d) Ideally, Air supply should be 18 CFM at 6 BAR / 90psi, for the SM800S unit and 29 CFM at 6 BAR / 90psi, for the SM1000S unit. e) Extractor is supplied with air for the vibrator. Air is supplied from a “T”... -
Page 5: Daily Maintenance
OPERATING INSTRUCTION: a) Make sure of Air Supply b) Switch light on c) Choose the correct Abrasives for intended application. Pour grit in to cabinet through the sieve d) Close the door e) Switch on Dust Extractor f) Insert hand into rubber gloves and hold the blasting gun. g) Stand on foot pedal for blasting operation. -
Page 6: Possible Faults And Troubleshooting
POSSIBLE FAULTS AND TROUBLESHOOTING: No Grit Coming Out Of Nozzle No Abrasives left Add Abrasives Blocked Air Jet Remove and unblock or replace air jet Disconnect hose and remove Blockage in Grit Hose blockage by blowing out the pipe Blockage in Gun Release foot pedal, remove nozzle clear blockage and replace nozzle... - Page 7 - Clear blockage from breather nipple for leaks. hole, remove the assembly if necessary. - Check Air jet and replace if necessary. - Check Nozzle and replace if necessary. Incorrect Application for Cabinet - Contact Storm Machinery for suitable equipment for the application.
- Page 8 TOO MUCH DUST Extractor not sucking - Cartridges are blocked. Clean out cartridges or replace. Ducting Hose faulty or blocked - Replace or clean out. Leaking dust out the door - Replace door seal, check extractor cartridges. Dust coming out of vents on - Filter Cartridges not sealing –...
- Page 9 SPARES FOR SM 800S / SM 1000S: Majority of the spare on these cabinets are standard across the range as detailed below: Air Supply Hose Dust Cartridges ½ M/F Elbow ½ Swage Nipple With Breathing Hole G8 Clamps Safety Glass ( Viewing ) Safety Glass ( Light ) Hinges Door Handles...
- Page 10 Storm Machinery’s written recommendations. This warranty does not cover, and Storm Machinery shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Storm Machinery component parts.
