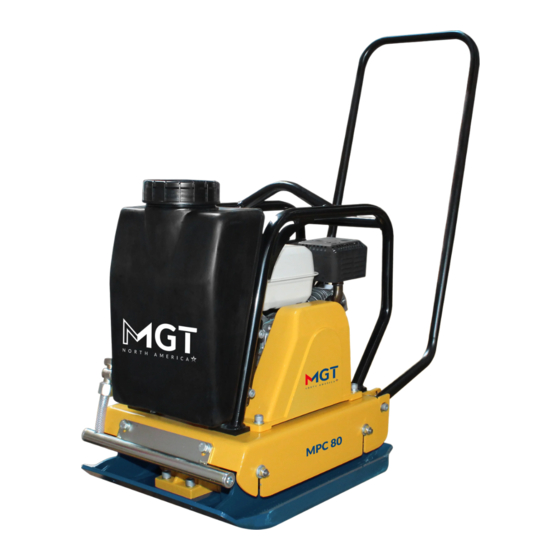

- Page 1 MENEGOTTI TECHNICAL MANUAL VIBRATORY COMPACTOR MPC 80 Attention: Before operating the Menegotti equipment, read this technical manual, it will inform and instruct the operator about the operation of the product. This way, you avoid possible work accidents and premature equipment maintenance.
- Page 2 Congratulations on purchasing a Menegotti product! Index With the highest quality, designed and built especially to serve you with technology to suit your needs. The Company This manual was written to provide you with the information and The Product instructions necessary for the use and maintenance of our equipment, Safety Informations as well as to present you with data relating to its technical characteris- Technical Specifications...
-
Page 3: Safety Informations
The Company Reference of quality in the construction machinery segment. Leading brand on sales of Concrete Mixers. Present in over 40 countries in the world. Recognized for having a complete range of products, providing greater productivity and profitability to the business. We are Menegotti North America, a Company from Menegotti Group, and we want to bring you the best we’ve got! The Product Vibratory compactor is a compaction machine, able to work quickly by applying consecutive impacts to the ground surface to level the uneven ground... -
Page 4: Technical Specifications
Technical Specifications • Maintain a limited area exclusive for working with the equipment, always keeping this place clean, without obstructions and with proper illumination. • Do not use clothing that is too loose and which might get caught in the machine. -
Page 5: Working Operation
Working Operation Equipment Maintenance 1) START 1) ENGINE OIL LEVEL: • Turn the power switch – ON position (1). • Remove oil level indicator and measure. • Move fuel lever to the right (2). • Move choke lever left (3). •... - Page 6 4) ECCENTRIC OIL: • Loosen the oil outlet screw and let the oil drain. • To replace oil, tilt the machine slightly and insert new oil through the same opening. 5) CHECKING AND REPLACING BELTS: • After stopping the engine, remove the upper belt guard to check tension or replace the belt. The appropriate tension when pressed hard with your fingers between the axes: 7mm.
- Page 7 Product Warranty Warranty Term By the present CERTIFICATE provided from original purchaser, Menegotti The warranty is not transferable under the conditions and within the guarantees this product against manufacturing defects, for a period of 6 prescribed period and will be valid from the date of purchase of the (six) months, being: the first 3 (three) months of legal guarantee, and the equipment, through presentation of the sales invoice to the first end last 3 (three) months a special warranty guaranteed by Menegotti, counted...
