Eden SNK-01 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Eden Snacker
Quick Start Guide
SNK-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the SNK-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eden SNK-01

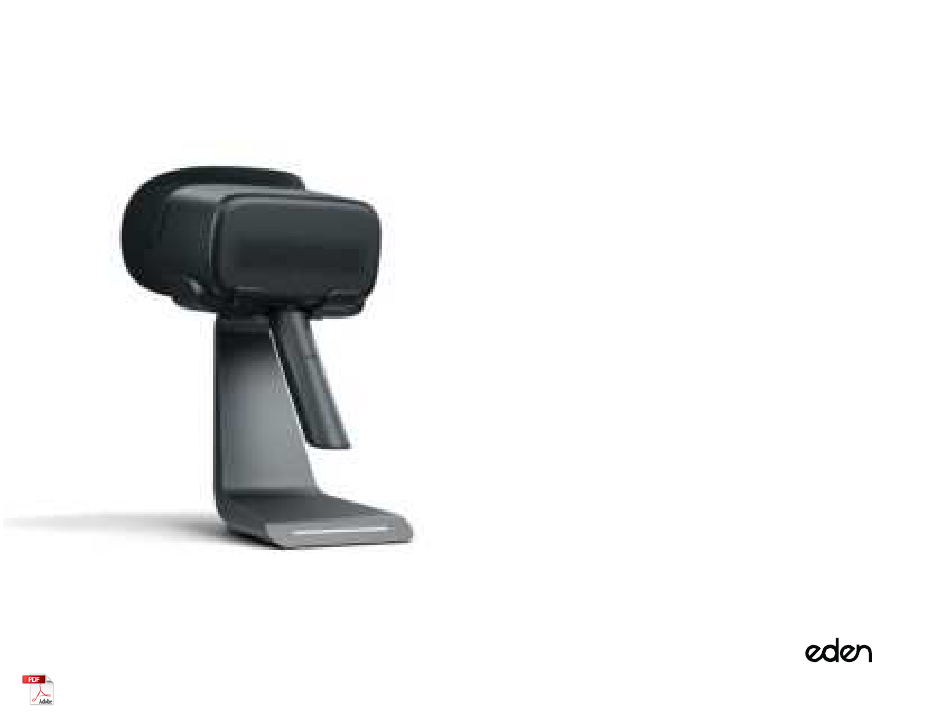

  • Page 1 Eden Snacker Quick Start Guide SNK-01...
  • Page 2 Welcome to VR made easy. ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 3 Thank you for purchasing Eden Snacker. Our team has put years of research and development into this product to deliver a hassle-free VR system that best serves you and your audience. This is a quick guide to get you up and running, should you have any queries please contact us at support@madebyeden.com...

  • Page 5: Table Of Contents

    Contents What’s in the box? Hardware Overview Headset Charge & Startup Grip Attachment Connecting Stand to Eden Station Headset Straps Health & Safety ©2021 Eden Immersive Limited. All Rights Reserved.

  • Page 6: What's In The Box

    What’s in the box? Eden Snacker VR Headset Grip Charging Stand Power Adapter Link Cable 0.5m Power Cable 1.5m Tether Cable 2m Headset Straps (optional) ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 7 Regional Adapters ©2021 Eden Immersive Limited. All Rights Reserved.

  • Page 8: Hardware Overview

    Hardware Overview Front View 4K Virtual Reality Headset LED Charge Indicator Grip Wireless Charging Stand LED Status Bar ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 9 Hardware Overview Back View Hygienic PU Leather Foam Viewer Sensor Lenses Kensington Lock Slot USB-C Power Port USB-C Communication Port ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 10 Stand & Cradle Cradle Wireless Induction Charger NFC Antenna Stand ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 11 These include charging status changes, operation modes, WiFi connectivity, error messages and more. For details on the different status signals, scan the QR code or visit the URL below. madebyeden.com/support /snacker/ledstatus ©2021 Eden Immersive Limited. All Rights Reserved.

  • Page 12: Headset Charge & Startup

    Micro-USB Tether cable to the supplied Power Adapter, and the startup sound. The headset will take another 6 wait for the LED Charge Indicator to turn blue. This may seconds to boot up. take up to one hour. ©2021 Eden Immersive Limited. All Rights Reserved.

  • Page 13: Grip Attachment

    Grip Attachment features a tethered mode for continous charging and to page 17 for this mode, or continue on the next page to run Snacker wirelessly. Page 13 Page 16 ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 14 Align the Grip locator pins to the recesses of the cold shoe The thumb indent should line up with the unlock underneath the headset at 45 degrees. symbol and the triangle locator ( ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 15 Grip Attachment Twist the Grip to face forward, locking it into place. Place the assembled unit onto the Cradle. ©2021 Eden Immersive Limited. All Rights Reserved.

  • Page 16: Connecting Stand To Eden Station

    Alternatively, connect the left USB-C port on the Stand ) icon, to either port 2 or port 3 of Station, using the 0.5m marked with the ( ) icon, to the Power Adapter using Link Cable. the 1.5m USB-C Power Cable. ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 17 The following steps will help you set up ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 18 Measure about 6 inches or 160mm from the right-angle caps located on the top and bottom of the grip safely Micro-USB connector to the top recess in the Grip. in your accessory box. ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 19 Lay the cable into the cable channel from the top down back onto the Grip, until it clicks into place securely. ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 20 Insert the Grip into the headset at a 45 degree angle, Rotate the Grip clockwise to lock it into position. ensuring the cable is allowed to move freely. ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 21 Keep this area clear Plug the Micro-USB connector into the headset charge port. does not snag on the Cradle when docked. ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 22 Place the tethered Snacker onto the Cradle. Plug the USB-C end of the Tether Cable into the right USB-C port on the Stand. ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 23 Connect the Station to the Stand using the 0.5m Link Cable, Your tethered system is now ready for use. or to the supplied Power Adapter using the 1.5m Power Cable. Refer to page 15 for instructions. ©2021 Eden Immersive Limited. All Rights Reserved.

  • Page 24: Headset Straps

    Headset Straps and Grip Optional for longer VR experiences at the same time, use one or the other. Thread the side and top straps through the slots on the headset. ©2021 Eden Immersive Limited. All Rights Reserved.

  • Page 25: Health & Safety

    Input: 100VAC to 240VAC (1.8A Max) on the front of the VR headset lenses to direct sunlight as Frequency: 50Hz to 60Hz Output: USB-C 5V-20V (87W Max) to avoid overheating issues. this will damage the optics. ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 26 Notes ©2021 Eden Immersive Limited. All Rights Reserved.
  • Page 28 10/21 madebyeden.com/support/snacker...
  • Page 29 -- Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement for Eden Snacker This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
