User's Manual

UT55

Table of Contents

Need help?

Do you have a question about the UT55 and is the answer not in the manual?

Questions and answers

Summary of Contents for e-survey UT55

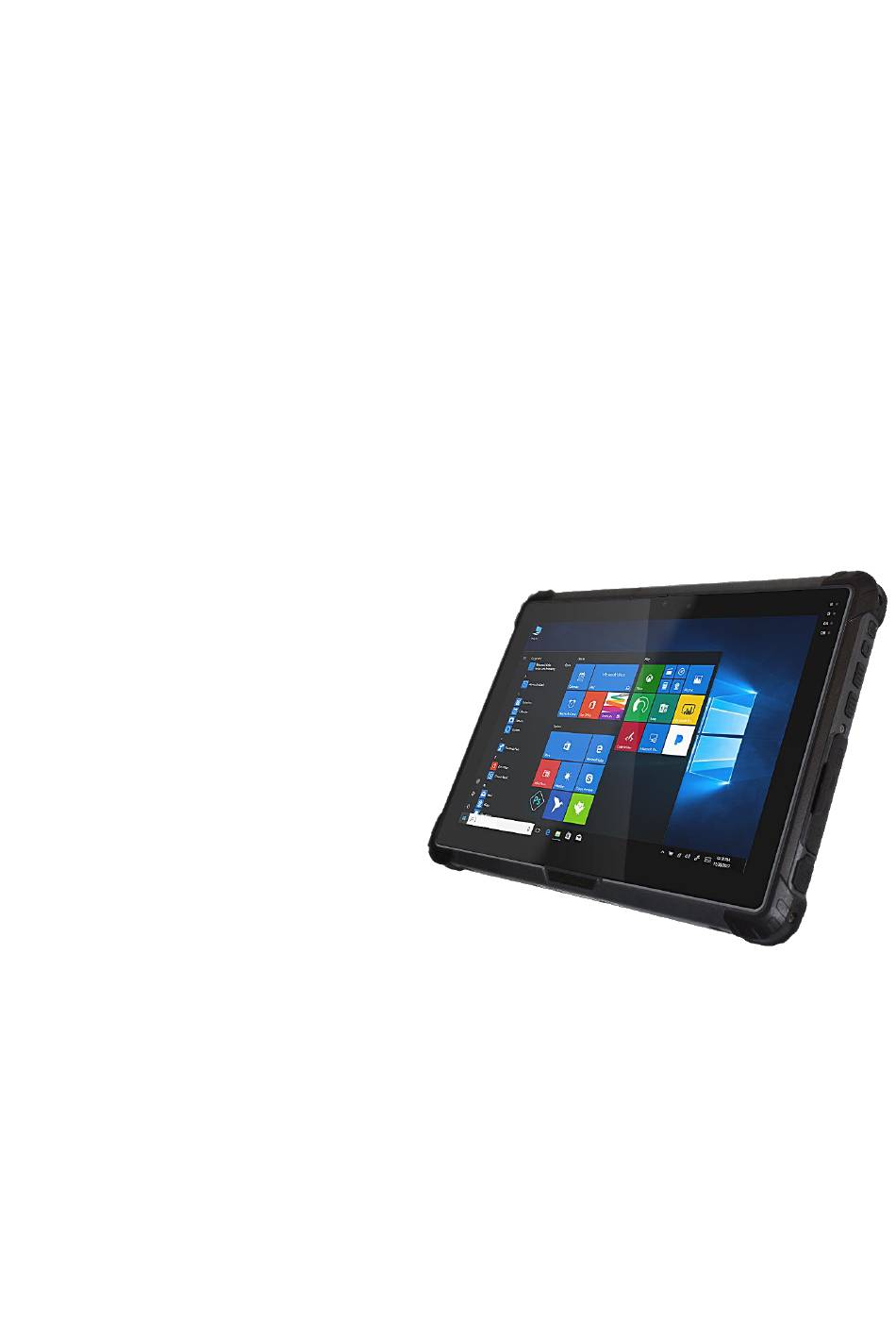

Page 1 User’s Manual UT55...
Page 2 Version 1.0 All rights reserved. Copyright © …. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form, by any means (electronic, photocopying, recording, or otherwise) without the prior written permission of the publisher. Copyright protection claimed includes all forms and matters of copyrightable material and information allowed by statutory or judicial law or hereafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as screen displays, menus, etc.
Page 3: Table Of Contents
Table of Contents Contents Table of Contents ................................3 1. Introduction ................................5 Explanation of Advisements ..........................5 Symbols and Markings ............................ 5 2. Exploring Your Device ..............................6 Package Contents ............................. 6 3. Device Layout ................................ 8 Front View................................. 8 Left-side View ..............................
Page 4 7. Precautions for the safe use of the product......................34 Battery safety..............................34 Charging safety ............................... 35 Wi-Fi is secure..............................35 Care and maintenance............................ 35 8. Troubleshooting ............................... 35 Appendix A Technical Specifications ......................35 Appendix B Compliance Information ......................36 B1 FCC Statement ............................
Page 5: Introduction
TheWarningsymbolisusedtoinformofsomethinginwhichthereisaconceivableriskofharmtotheuserifthe Warning is ignored. Symbols and Markings This section provides information about the symbols that are used on the UT55, it is accessories or packaging. Description Symbol or Markings Power On/Off Indicator Dispose of in accordance with your country's requirements.
Page 6: Exploring Your Device
2. Exploring Your Device Package Contents In addition to the primary tablet unit, your product carton should contain all the below items. UT55 RuggedTablet PC Packing Contents AC Adapter AC Power Cord Battery Stylus (Optional) Belt（Optional） RS323 (Optional)
Page 7 RJ45 (Optional) Expansion Port Documents Packing Lists, etc.. UT55 Packing list： Please inspect all items. If any items are missing or appear damaged, please inform your dealer immediately. This packing list applies to standard models. Select models may have different items.
Page 8: Device Layout
3. Device Layout Front View Item Component Description Front Camera Record still and video images – 8 MP Front Camera Indicator the camera on/off Indicator Light Light Sensor Provides automatic adjustment of screen brightness for various lighting conditions The Power Turn off ------------------------when the machine is shut down or hibernated The green light is on-------- when the machine is in a normal working...
Page 9: Left-Side View
Red light flashes once in 2 seconds ------------ Battery A remaining charge less than 10% Battery B Off ----------------when Battery B does not exist or is not charging. Indicator Red light ---------when Battery B is charging. Greenlight -------Battery B charge complete. Green light flashes once in 1 second------ the battery over pressured the COV and could not charge Greenlight flashes once in 0.5 second---Battery A charging temperature...
Page 10: Right-Side View
Right-side View Item Component Description Kensington Anti-theft Lock For anti-theft lock Bottom View Item Component Description Docking Connector Connects the tablet with the Tablet Docking Station Rear View Position Components Description External GNSS Antenna Interface To install an external GNSS antenna to receive signals related to positing and timing from space...
Page 11 Fan Inlet Allow airflow in for cooling The Pen Buckle with Cap To cap/uncap the pen Serves as the input device by tapping on the touchscreen to make selections and enter information Speaker Sends out sound and voice Expansion Port (4G module, etc.) Expansion port for an extra module, such as 4G Battery 2 Supplies power to your Tablet PC when external...
Page 12: Managing Device Power
The UT55 device has two batteries. Microsoft Windows gives battery warnings at certain levels. If the UT55 device is not charged or powered up by the power supply, the UT55 device will shut down automatically. For more information, see Battery safety, page 32.
Page 13: Disassemble The Battery
Disassemble the Battery. Turn the machine over to the back to make sure that nothing under the screen can damage the device when it is turned over. Turn the lock 1 to the left, then move the lock 2 up and remove the battery. There is a button and 4 LED lights on the battery, and if you press the buttons shortly,4 LED lights to indicate the remaining battery charge.
Page 14: Managing Your Installations
5. Managing Your Installations Install the Card (Nano SIM Card, MicroSD Card) With the machine screen facing up, open the plug on the right side of the machine. The Nano SIM card port is on the left side of the lower two mouths and the SD card port is on the right. Insert the card into the machine in the screen orientation.
Page 15: Installed The Pen
Installed the Pen To install the pen, put the pen's lanyard into the device's lanyard hole. Then, put the pen through the lanyard, in the telescopic retention belt, and placed in the pen slot. See the steps below. The LED status is displayed. Machine status The status of the light is displayed Power light flash green (2S once)
Page 16: Using The Ur-100
6. Using the UT55 Power on for The First Time. 1. When starting for the first time, fully charge the device. Plug the power adapter into the device and charge the device to make sure that both batteries are full.
Page 17: Use Ethernet
Use Ethernet The UT55 has an optional RJ45 outlet. It can be inserted into an RJ45 network cable to connect to the Internet, or interconnect with other Ethernet devices. Step 1: Insert the RJ45 crystal cable into the RJ45 socket of the device.
Page 18 Step 2: You can see the icon in the red oval below, if the icon is OK, there is no yellow exclamation point or red fork, indicating that the Ethernet connection was successful. Step 3: If you need to set up Ethernet, you can choose the following menu 【Start】→【Setting】→【Network and Internet】→【Ethernet】...
Page 19 Step 4: If you need to set up Ethernet information, such as an IP address, or gateway, select the following menu: 【Start】→【Settings】→【Network and Internet】→【Ethernet】→【Change Adapter Options】...
Page 20: Use Wifi
Use WIFI You can use the following steps to access the Internet via WIFI. Step 1: Click the WIFI icon on the taskbar to get the following image. Step 2: Tap your own WIFI hotspot, and then click on 【Connect】 Step3: Enter the WIFI password and click on the 【Next】...
Page 21: Use Bluetooth
Use Bluetooth. Refer to the steps below to connect the machine and other Bluetooth devices. Step 1: Turn on other Bluetooth devices, such as a smartphone or a Windows laptop with Bluetooth. Step 2: Click on 【Start】 →【Setting】→ 【Devices】→ 【Bluetooth & other devices】→【Turn on Bluetooth】...
Page 22 Step 4: As follows, you can find multiple Bluetooth devices, such as using Windows notebook working with Bluetooth. Step 5: Click on 【ALP-AL00】and then click on 【connection】...
Page 23 Step 6: After clicking on the 【Connection】, a confirmation dialog box pops up on the device of the 【ALP-AL00】, and after clicking 【OK】 or【 Connect】, the 【Paired】will appear on 【ALP-AL00】 Step 7: Send or receive files over Bluetooth. If you want to accept a file via BLUETOOTH, you must open the Bluetooth receive file interface below, otherwise, will not be able to receive it.
Page 24 Step 8: Interface for successfully receiving files from other devices:...
Page 25: Use Gnss
Step 9: Interface after sending files via Bluetooth: Use GNSS You can use u-Blox's GNSS application software to test the GNSS function of UT55. Use u-Center 8.24 as an example. The u-Center application can be downloaded from the official website of uBlox: https://www.u-blox.com/en/...
Page 26 Step 3: There are two ways to use GNSS: GNSS Mode 1: Turn on GNSS with serial mode. Open the COM port from the following menu 【Receiver】→【Port】→【COM4】 It may not be COM4 on different machines, but the correct COM port of GNSS can be found in Windows Device Manager.
Page 27 • From the following menu【View】→【Text Console】, you can get 1Hz of NMEA data by opening the text view. • From the toolbar, you can open the satellite signal view and you can see the following interface: GNSS Mode 2: Use Sensor mode to turn on GNSS Use Sensor mode to turn on GNSS. Select the Sensor mode from the following menu to turn on GNSS: 【Receiver】→【Sensor API】→【u- blox GNSS Location Sensor】.
Page 28 Step 1: Add a password. Enter the following path 【Start】→【Settings】→【Account】→【Login Options】-【Password】. If you have already set a password, there is no need to set the password again. You can go to the second step. If there is no password, please follow the steps below to set a Windows password.
Page 29 Click 【Password】→【Add】, enter the password and hint, and then click 【Next】 to complete the password setting. Step 2: Add a PIN. Enter the following path 【Start】→【Settings】→【Account】→【Login Options】-【PIN】. If you have already set a PIN code, you do not need to set the PIN again. You can go to the third step. If the PIN code has not been set, follow the steps below to set the PIN code.
Page 30: Set Up
Click 【PIN】→【Add】, then enter the PIN and click Confirm. If an error similar to the following appears, change the password according to the prompts. Set up Set the backlight brightness automatic adjustment function. You can set the backlight brightness auto-adjustment function on and off by the reference to the following path: Start】→【Settings】→【System】→【Display】→【Automatically change brightness when lighting changes】...
Page 31: Set The Screen Auto-Rotation Function
Set the screen auto-rotation function. Method 1: The opening and closing of the automatic screen rotation function can be set by reference to the following path: 【Start】→【Settings】→【System】→【Display】→【Rotation Lock】 Method 2: There is a quick switch for rotary locking in the notification area in the lower right corner of the system.
Page 32: Go To The Bios Settings Interface
Go to the BIOS settings interface. Follow the steps below to enter the BIOS settings interface. Step 1: The device is shut down. Step 2: Plug the USB keyboard into the USB connector of your device. Step 3: Press and hold the keyboard's F7while pressing the device's power-on key to see the following interface: Step 4: When entering the BIOS settings interface, you can view the version numbers of the BIOS and EC, and you can also modify some of the BIOS settings.
Page 33 Step 5: Exit the BIOS settings interface and select the menu 【Save & Exit】. If you need to save the modified settings and exit, you can select 【Save Changes and Exit】. If you do not need to save the modified settings and exit, you can select 【Discard Changes and Exit】.
Page 34: Precautions For The Safe Use Of The Product
7. Precautions for the safe use of the product. Before using the UT55 device, please read this manual and precautions carefully. Otherwise some unforeseen consequences can occur. The operating environment temperature of the equipment should not exceed 55℃ Battery safety.
Page 35: Charging Safety
Charging safety When charging the device, please place the device in a normal room. The recommended device charging environment temperature range is 5℃ to 40℃. Wi-Fi is secure. Turn off Wi-Fi features when Wi-Fi is prohibited, such as during an airplane flight. Care and maintenance.
Page 36: Appendix B Compliance Information
4G LTE (Option) GNSS: uBlox NEO-M8N, Support GPS/QZSS L1 C/A, GLONASS L1 FDMA, SBAS: WAAS, EGNOS, MSAS Navigation update rate up to 10 Hz Cold start no more than the 60s Sensors Gyroscope, Light sensor, compass. Battery Two hot-swappable batteries 7.6V 4050mAH x2 30.78*2=61.56Wh 1x USB 3.0 @0.5A Type A 1x USB 3.0 @0.5A Type C 1x Micro HDMI output...
Page 37: Fcc Rf Radiation Exposure Statement
The SAR (Specific Absorption Rate) limit as dictated by the FCC (in the USA) and by the IC (in Canada) is 1.6W/kg averaged over 1 gram of tissue. In Europe/EU (CE regulations) it is 2.0 W/kg averaged over 10 grams of tissue. The Devices, UT55 have been tested against these SAR limits to maintain compliance with FCC/IC/CE RF exposure requirements.
Page 38: B4 Ce Statement
Member States relating to electromagnetic compatibility and Radio Equipment Directive (RED) 2014/53/EU to meet the regulation of the radio equipment and telecommunications terminal equipment. B5 Directives and Standards The UT55 complies with the following directives: • Medical Device Regulation (MDR) •...
