Summary of Contents for aiTerminal Miner Plus

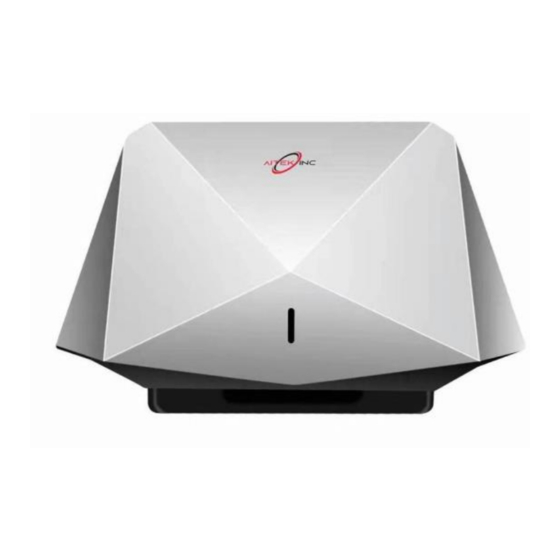

- Page 1 Proprietary of Aitek Inc Aitek Miner Plus Model: AMP-500-01 USER MANUAL 080-00001-00 AITEK USER MANUAL...
-
Page 2: Table Of Contents
Proprietary of Aitek Inc Table of Contents PACKAGE CONTENT ..................... 3 PRODUCT SPECIFICATIONS ..................4 INTRODUCTION ........................ 4 NETWORK SYSTEMS ....................5 INTERFACE DESCRIPTION ..................5 LED INDICATOR DESCRIPTION ................6 USER INSTRUCTION ...................... 7 Download the mobile app..................7 Configure network connection ................ -
Page 3: Package Content
Proprietary of Aitek Inc 1. PACKAGE CONTENT Package Content Quantity Description Aitek Miner Plus LoRa Antenna Power Adaptor Mounting Bracket (attached to the Miner Plus) Mounting Screw 080-00001-00 AITEK USER MANUAL... -
Page 4: Product Specifications
Helium Blockchain technology. Aitek Miner Plus is compatible with all LongFi devices. Aitek Miner Plus is designed with ECC608 crypto chip to provide secure and reliable connectivity. It meets Helium security protocol and provides trouble-free operations for end users. Additional benefits include: •... -
Page 5: Network Systems
Proprietary of Aitek Inc 4. NETWORK SYSTEMS Aitek Miner Plus hotspot gateway integrates LongFi packets with Helium Miner. The hotspot sends the received LoRa terminal data packets to Helium Miner, then forwards them to the Console (Network Server) via the Miner. After that, pushes it to the application platform via the API interface. -
Page 6: Led Indicator Description
Proprietary of Aitek Inc 6. LED INDICATOR DESCRIPTION The different colors of the LEDs represent different working states of the device. Status LED Color Indicator Status Description The gateway is configured and operating The network connection is normal. normally. The gateway is in standby/off-line mode The network is not connected The gateway power-on initialization status... -
Page 7: User Instruction
Proprietary of Aitek Inc 7. USER INSTRUCTION 7.1 Download the mobile app. Download the app using Apple iPhone: o Go to Apple app store button, search for Helium app. o Download and install the Helium app o Run the Helium app o Continue to step 7.2 Apple app store Helium app... - Page 8 After plugging in the power, the LED of the gateway turns red and then yellow. Device Power Input Below steps showing three methods of pairing the Aitek’s Miner Plus hotspot. Please note, only one of the three method is needed to pair up the device. 1. WiFi pairing: If you use WiFi pairing technique, select the WiFi from the app, select the name of the WiFi router you are networking with.
- Page 9 Proprietary of Aitek Inc Bluetooth button 3. Ethernet Cable Connection Ethernet connection requires connecting an Ethernet cable from Aitek’s Miner Plus to the network router equipment (the Ethernet cable is provided by the customer). Suggest to use CAT 6 or better rated Ethernet cable when possible. Please note that the Ethernet connection currently only supports automatic IP acquisition.
-
Page 10: Part Size (Mm)
Proprietary of Aitek Inc 8. PART SIZE (MM) 080-00001-00 AITEK USER MANUAL... -
Page 11: Mounting Guide
Proprietary of Aitek Inc 9. MOUNTING GUIDE Aitek’s Miner Plus hotspot gateway can be mounted in the following methods. ➢ Desktop: Place the gateway on a horizontal surface. ➢ Wall-mount: Hang the gateway on the wall using proper wall mounting screws to fully secure the device. - Page 12 Proprietary of Aitek Inc APPENDIX – A FCC ID: 2A 5L2-AMP500 Important Safety Information - Read First Before installing, configuring, or operating any equipment, Aitek recommend user to access and read all relevant technical documentation. Aitek technical documentation can be found at Aiteks.com. Read and understand all safety instructions, cautions, and warnings in this d ocu me n t and the labels on the equipment.
- Page 13 Proprietary of Aitek Inc FCC Regulations This device complies wi th part 15 o f the FCC Rules. Operation is subject to the following tw o conditions: This device may no t cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply w i th the requirements for CLASS B digital devices, pursuant to Part 15 o f FCC Rules.
