Magpowr B5 Manual

CAUTION: This product contains rotating parts which could cause injury at time of installation. Appropriate
protective guards should be installed by the user according to his use of this product.
All of the information herein is the exclusive proprietary property of Maxcess International, and is disclosed with the
understanding that it will be retained in confidence and will neither be duplicated nor copied in whole or in part nor
be used for any purpose other than for which disclosed.
Copyright 2004, all rights reserved.
Periodically there will be updates to this manual. The latest version is available at
1-800-MAGPOWR (624-7697).

THEORY OF OPERATION

The brake consists of a stator, rotor, coil, stator ring, shaft, magnetic powder and bearings which support and align
the rotor in the stator.
The magnetic powder occupies the space between the rotor and the coil. This magnetic powder is the key element
in the brake in that it functions as the variable bond or link between the rotor and the stationary coil. The coil is
secured to the stator and the stator is connected to ground (machine frame) through a torque arm.
A current in the coil creates a magnetic field (flux) which passes through the rotor, the coil housing, and the
magnetic powder. The flux aligns the powder forming links or bonds between the rotor and the coil. The degree of
bond action is directly proportional to the amount of current in the coil.
850A245-1
10/04 Rev. C
INSTALLATION & MAINTENANCE MANUAL
4
3
2
1

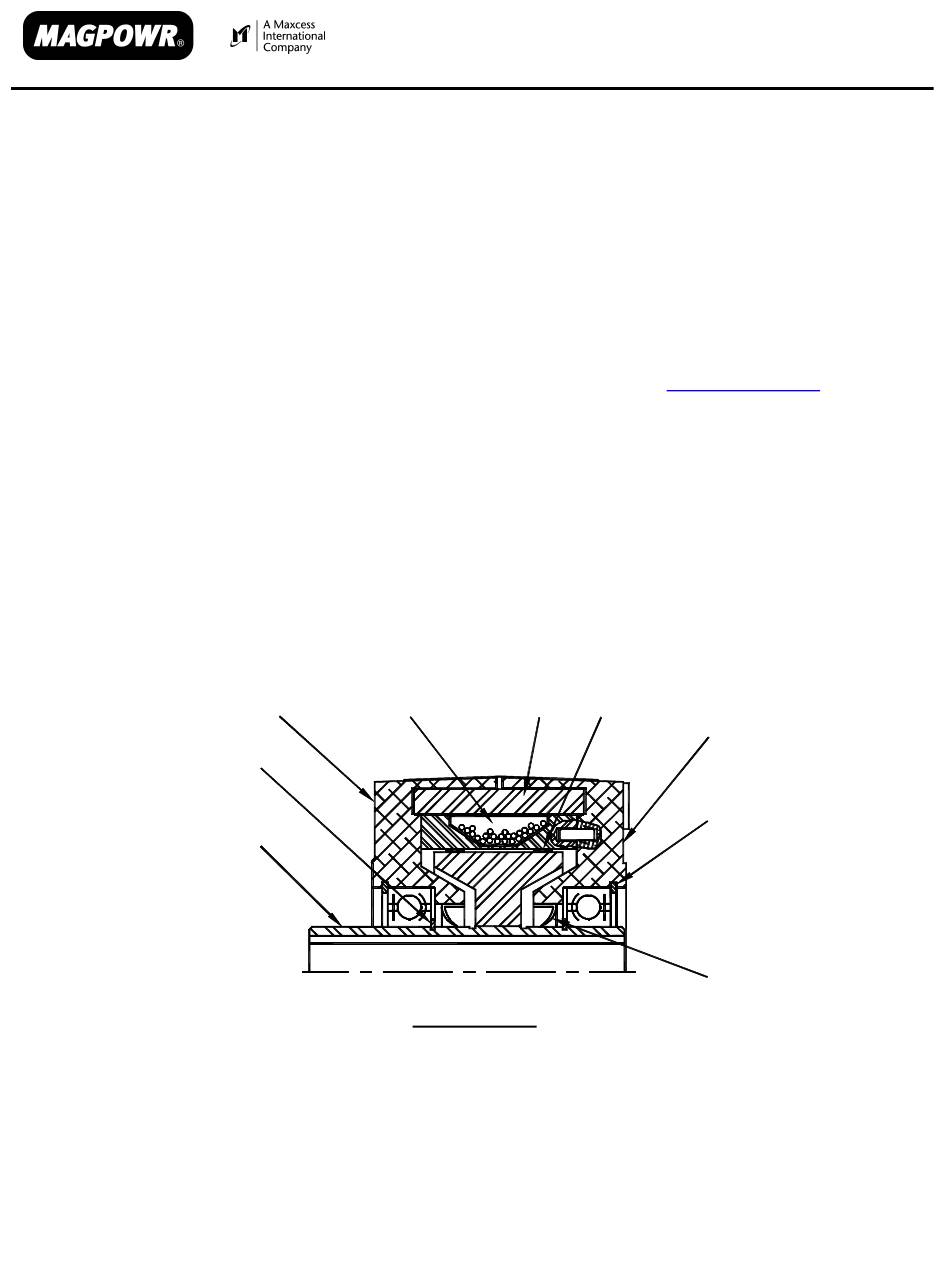

1 Rotor
2 Inner Snap Rings (2)
3 Left Stator
4 Coil
5 Stator Ring
222 W. Memorial Road, Oklahoma City, OK 73126-0508
Phone: 1-800-624-7697  Fax: 405-755-8425
www.magpowr.com  E-mail: magpowr@magpowr.com
B5 BRAKE
5

PARTS LIST

6 Magnetic Powder
7 Right Stator
8 Outer Snap Rings (2)
9 Seals (2)
www.magpowr.com
6
7
8
9
or by calling
