Three Sided Rotating Prepaid Display FDVZN2 - Instructions

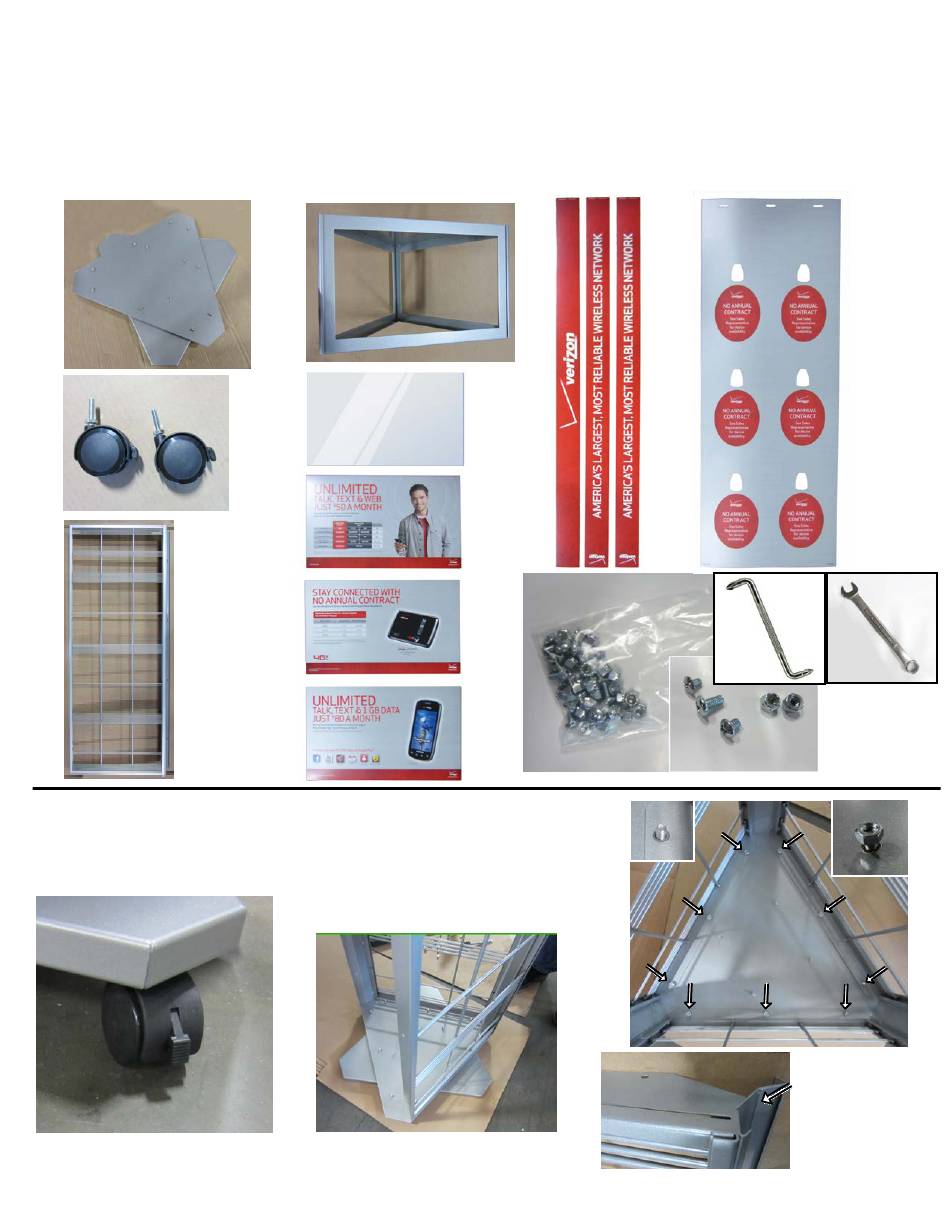

Rotating Prepaid Display Contents:
There should be two boxes with all materials for this display.
1. Pre-assembled Rotating base
2. Casters (qty 3)
3. Metal rack panels (qty 3)
4. Metal Header Sign Holder (qty 1)
1.
2.
3.
Step 1
Attach the casters to the
bottom of the main base
panel.
May 1, 2012
5. Plastic cover sheets for header graphics (qty 3)
6. Header Sign graphics (qty 3)
7. Rack-end graphics (qty 3)
8. Graphic Side Panels with pre-cut holes (qty 3)
9. Hardware:1/4:20 screws, 1/4:20 nuts, mini screwdriver, wrench
4.
5.
6.
Step 2
Position the rack panels on the assembled
base one at a time by aligning the holes in
the bottom of each rack to the exposed
threads on the base (fig a). Secure them
in place using provided 1/4:20 nuts (fig b).
7.
9.
fig. a
8.
fig. b
Note: The end
with the slot for
the large graphics
is the top.
