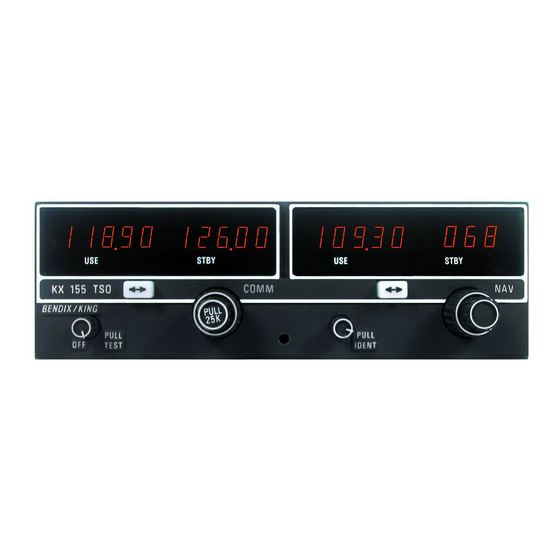

The unit is a combined radio/nav unit, with the radio being on the left and
the nav on the right.

Radio

The Comm display on the left shows two frequencies the left one is the
freq in use and the right is the freq that's in standby.
1.
Rotate the large knob to select the desired megahertz (MHz)
value. For example, the "118" portion of the frequency "118.20".
2.
Rotate the small inner knob to select the desired kilohertz (kHz)
value. For example, the ".20" portion of the frequency "118.20".
3.
To select a frequency like "120.225" you need to pull out the small
inner knob and select the desired frequency. Note that the
display only shows 2 decimal places, so "120.225" is displayed as
"120.22".
4.
To change the frequency in use just press the arrowed button to
flip between the standby and in use frequencies.
5.
The volume of the radio can be adjusted by using the small knob
on the far left of the unit. Pull out to adjust the automatic
squelch setting.
Building No.2, Southampton International Airport, Hampshire, SO18 2NL Tel: +44 (0)23 80650300 Fax: +44 (0) 23
Solent Flight Limited Registered in England No. 3349127 VAT No. 704 2659 47
Bendix King KX 155 TSO
Radio/Nav "How to Guide"
80650005
Email: mail@solentflight.com
URL: www.solentflight.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KX 155 TSO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BENDIXKing KX 155 TSO

  • Page 1 Bendix King KX 155 TSO Radio/Nav “How to Guide” The unit is a combined radio/nav unit, with the radio being on the left and the nav on the right. Radio The Comm display on the left shows two frequencies the left one is the freq in use and the right is the freq that’s in standby.
  • Page 2 Bendix King KX 155 TSO Radio/Nav “How to Guide” The unit is a combined radio/nav unit, with the radio being on the left and the nav on the right. The Nav display on the right shows two frequencies the left one is the freq in use and the right is the freq that’s in standby.
