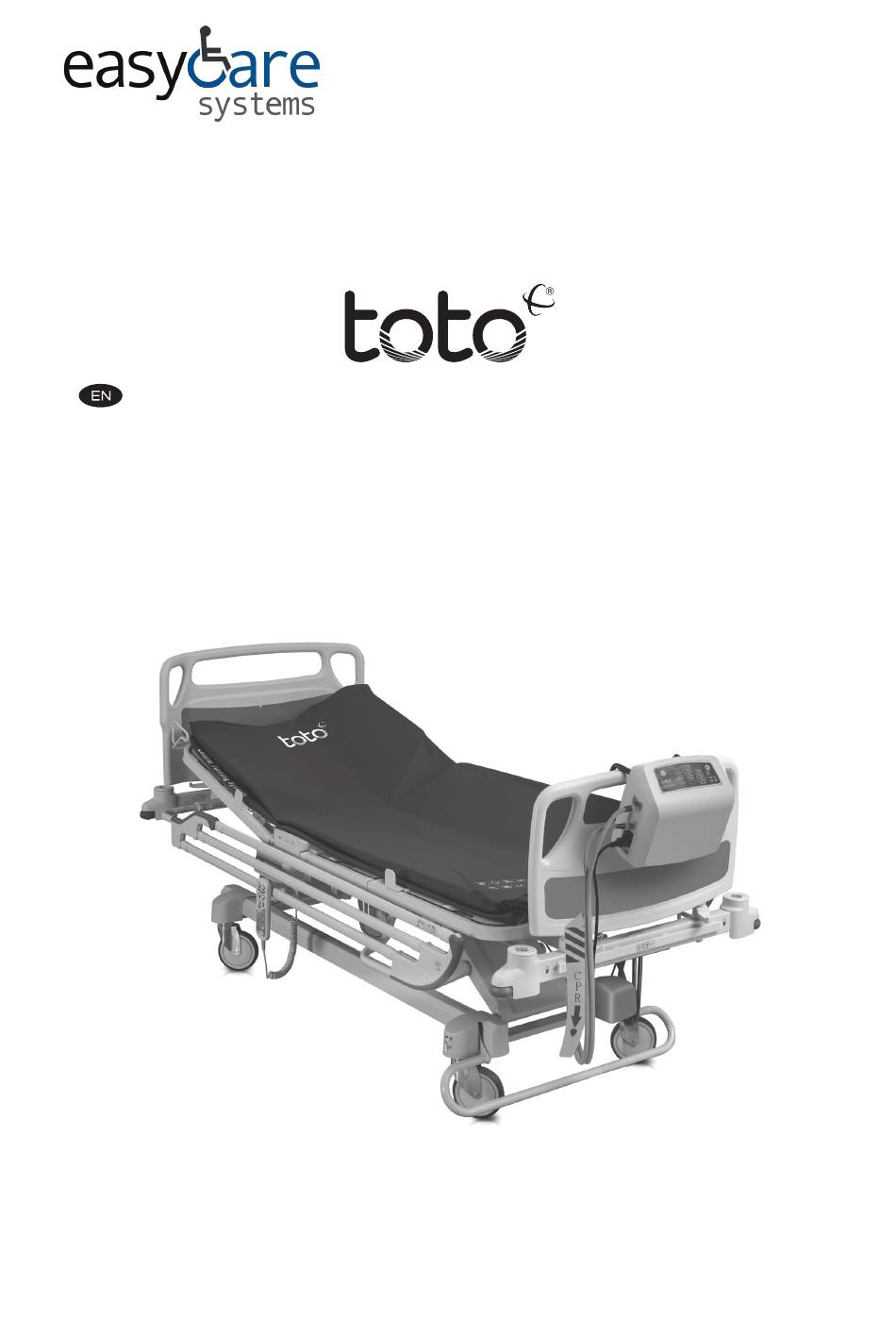

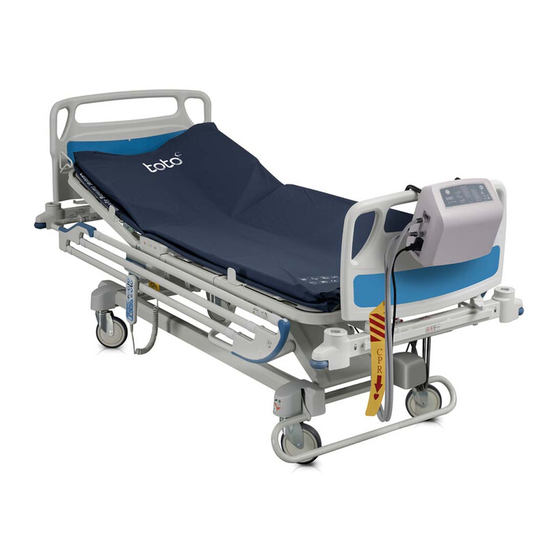

- Page 1 Special Products and Service ® ® Toto Lateral Turning System, with Toto Touch Control Unit User guide User guide Version 4.0 April 2021 www.easycaresystems.co.uk www.frontier-group.co.uk...
- Page 2 Toto lateral turning system is covered by UK patent no. GB 2449318 Toto lateral turning system is a registered trade mark of Frontier Therapeutics Ltd © 2019 Frontier Therapeutics Limited. All rights reserved. 2021 Easy Care Systems Limited Units 5 and 6 Lower Vicarage...
- Page 3 User guide...
- Page 4 Toto® Lateral Turning System Labelling c for 10 minutes or Bleaching agent Maximum user Do not pierce Line dry º c for 3 minutes allowed weight or cut º Keep dry Do not iron Refer to user manual CE Mark...
-
Page 5: Kit Contents
Frontier Therapeutics Ltd Customer Services on +44 (0)330 460 6030. Toto Touch Control Unit Toto Platform • 1x Toto Touch control unit. • 1x Platform including a fitted cover. • 1x Control unit power lead. -
Page 6: Table Of Contents
Contents Kit Contents Product Specifications Intended Purpose Alarms and Alerts CPR Emergency Deflation System Nature and Frequency of Preventative Maintenance Cleaning and Disinfection Cleaning Air Filters Warranty Technical Specification... -
Page 7: Product Specifications
Product Specifications Toto Lateral Turning System - Standard: a fully customisable control unit and patient turning platform. Toto Platform Product Weight - kg (lbs) Maximum User Weight - kg Width - mm (Inches) Length - mm (Inches) (lbs) Standard 6.7 (14.7) -
Page 8: Intended Purpose
The Toto system has a maximum user weight of 250kg meaning management of heavier patients becomes easier and less onerous on staff. Toto can be used in conjunction with support aids and sleep systems, an individual assessment must be carried out to assess for suitability. - Page 9 • When elevating a profiling bed back rest, raise the knee break first. • Ensure the surface of the bed frame is clear from debris before placing the Toto platform, as this can damage the coating of the cover. •...
- Page 10 • The use of bedsides or bed rails is recommended. • When Toto is deflated and in the flat position, the distances between the top of the uncompressed mattress and bed rail should be as follows; • Top of the bed rail >220mm (Diagram 1) •...
- Page 11 Intended Users Intended for use in home and professional healthcare facilities by medically trained and untrained users. There are no special skills required to operate or use Toto. More information can be found online at https://www.frontier-group.co.uk. Instructions for Use Before use, please read the following instructions.
- Page 12 Ensure the head and shoulders are supported preventing neck rolling and pivoting at the hips. Toto is indicated for side lying if patients can self- support, and they are in the middle of the bed. When using bedsides, consider the use of padding, bumpers or net infills.
- Page 13 120 min 30 min touch 180 min 240 min REST TIME Turning the Toto Touch Control Unit On • Press and hold the start/stop button (1) for three seconds. • A single beep confirms activation along with default lit LEDs. •...
- Page 14 Air Cell Inflation Selection • Press the side selection button (2) to scroll through the three available options: Left and right air cell (Default). Right air cell only. Left air cell only. • Side selection refers to the patient’s side, as standing at the foot end of the bed. •...
- Page 15 Changing the Air Cell Rest Time • Press the rest time button (4) to scroll through the five available options: 30 minutes. 60 minutes. 120 minutes (Default). 180 minutes. 240 minutes. • A single beep confirms activation along with the lit option LED’s. INFLATE TIME 240 min 180 min...
- Page 16 Interface Lock The interface lock prevents any unwanted changes to the control unit settings. • Press and hold the alarm mute button (5) for four seconds. • Confirmed by the padlock LED (9) and a double beep. • When the interface is locked, only the alarm mute button is operational. •...
-
Page 17: Alarms And Alerts
Alarms and Alerts The Toto Touch control unit has three integrated alarms and one information alert to ensure patient safety and efficacy. Alarms and Alerts Alarm Condition Indicated by an audible alarm and: Air Leak Alarm The pressure in the system... - Page 18 If the problem persists, contact Frontier Therapeutics Ltd Tel. +44 (0)330 460 6030 for assistance. • Mains power failure. Do not open the control unit. Opening the unit could cause personal injury or equipment damage. NB. The Toto Touch control unit self calibrates on start up.
-
Page 19: Cpr Emergency Deflation System
CPR Emergency Deflation System The Toto system features a quick release CPR deflation valve which allows for rapid deflation for emergency procedures. In the event of an emergency, firmly pull and release the yellow tab. To re-inflate the system, replace the CPR tag ensuring both sealing connectors are firmly attached and restart the Toto Touch control unit. - Page 20 Inspection and Care The Toto lateral turning system cover, platform assembly, air cells, CPR deflation valve and tubing set and control unit each have a unique GS1 compliant barcode which should be retained and used in the event of a warranty claim. NEVER remove these labels.
-
Page 21: Nature And Frequency Of Preventative Maintenance
Nature and Frequency of Preventative Maintenance Inspection and Care of the Toto Touch Control Unit The Toto Touch control unit is designed to be reliable and long lasting, with few parts requiring maintenance. A routine service is required when the service light illuminates. Please refer to the Toto Service, Maintenance and Repair Manual for further information. -
Page 22: Cleaning Air Filters
5. Remove and clean the filter with clean water and allow to dry thoroughly. 6. Replace the cleaned filter and refit the air filter cover on the control unit. 7. The control unit is now ready for use. For further information please refer to the Toto Service, Maintenance and Repair Manual. -
Page 23: Warranty
Do not store in damp conditions. Warranty The Toto system warranty is valid for two years from the time of shipping. In the event of a defect or fault, please contact Frontier Therapeutics Ltd Customer Services on Tel: +44 (0)330 460 6030 or email: info@frontier-group.co.uk immediately. -
Page 24: Technical Specification
Compliance The Toto system conforms to MDD 93/42/EEC and MDR 2017/745 and the following standards: BS EN ISO 9001:2015 Quality Management Systems. BS EN 13485:2016 Medical Devices. Quality Management Systems. Requirements for Regulatory Purposes. BS EN 14971:2012 Medical Devices. Application of Risk Management to Medical Devices. BS EN ISO 15223-1:2016 Medical Devices. - Page 25 Toto Touch Technical Specifications Power input – UK & EU AC 220-240VAC 50Hz, 0.2A Fuse rating T1AL250V Compressor SAA-1 Air distributor Timing motor working as a rotary valve Control system Digital control system Power consumption 14 Watt (typical) / 20 Watt (maximum)
