Summary of Contents for Vello LED Smart Par1941

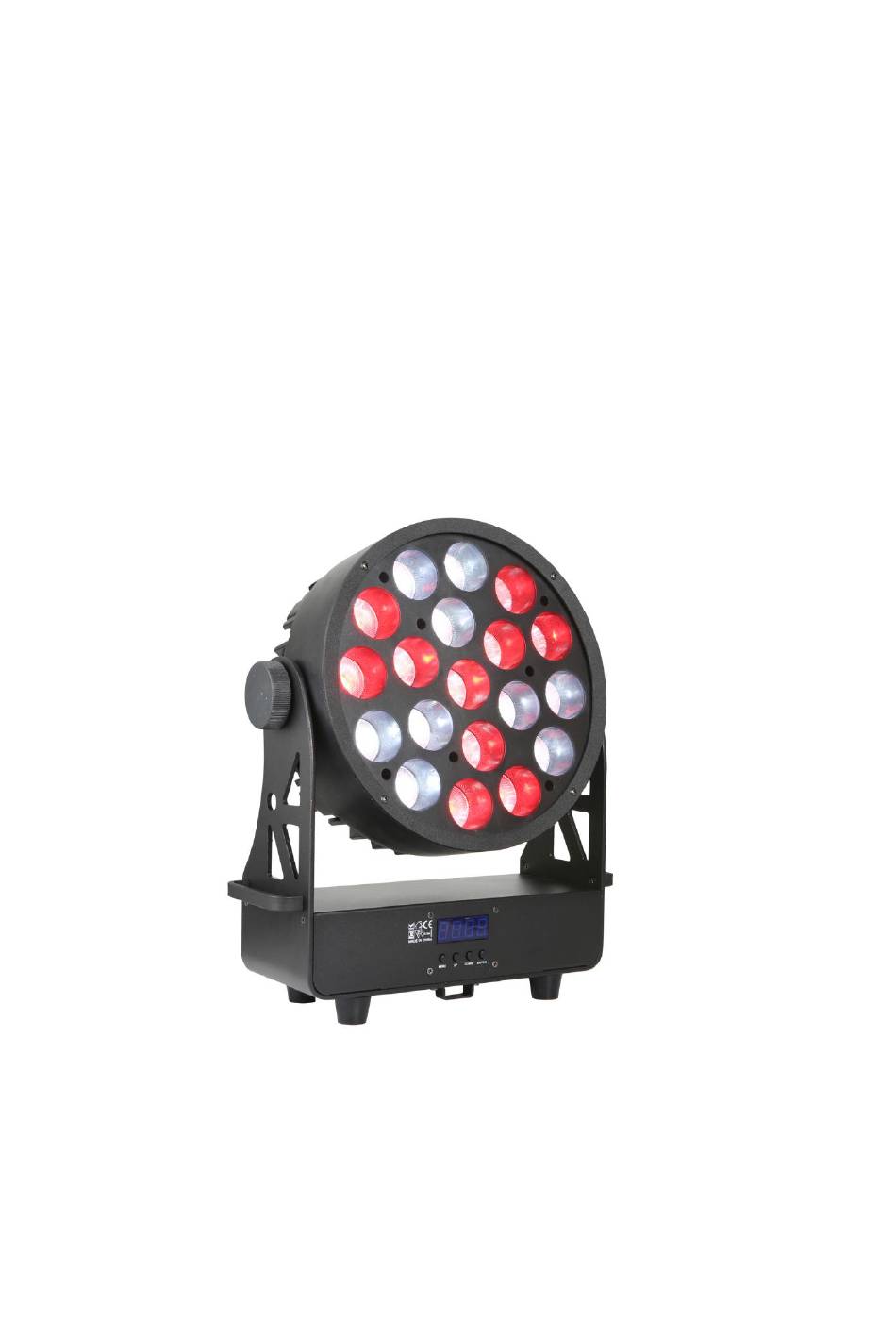

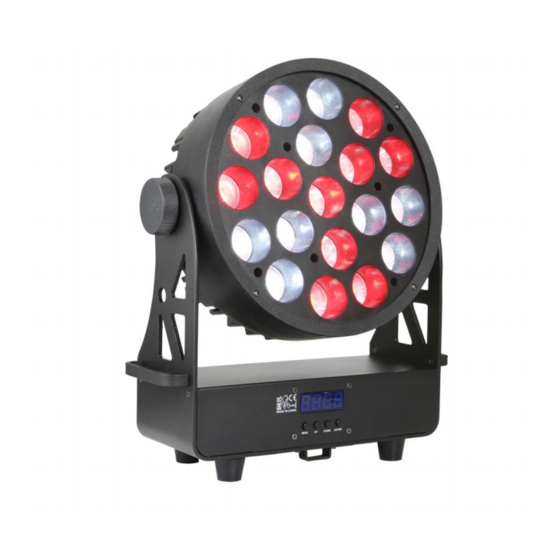

- Page 1 Instruction Manual PROFESSIONAL SHOW LIGHT LED Smart Par1941 ------------------------------ 2017 Ver08.28-----------------------------------...
- Page 2 FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING VELLO SMART PAR1941 WASH. SAVE IT FOR FUTURE REFERENCE. Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
- Page 3 ⚫ During long periods of non-use, disconnect the unit’s main power. ⚫ Always mount this unit in safe and stable matter. ⚫ Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point they exit from the unit.
- Page 4 the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.
- Page 5 Manu details below: Main Menu Value Functions 001-512 DMX address setting 8/16 channels mode selection 00-99 Color selective 000-255 Red intensity 000-255 Green intensity 000-255 Blue intensity 000-255 White intensity Sound Dimmer curve 1 Dimmer curve 2 Dimmer curve 3 DMX CHANNEL MODE Reduced Mode Standard Mode...
- Page 6 172-173 Bastard Amber 168-171 Deep Orange 162-167 Pale Gold 157-161 Apricot 151-156 Bright Blue 149-150 Primary Green 147-148 Special lavender Pale Lavender Deep Golden Amber 142-144 Medium Blue 138-141 Bright Pink Mauve 134-135 Dark Green 131-133 Leaf Green 129-130 Dark Blue Light Blue Steel Blue Med Blue Green...
- Page 7 White 5000° K White 3700° K White 7000° K Magenta Yellow Cyan Blue Green 000-009 No function 000-255 Auto 000-255 Red color intensity 000-255 Green color intensity 000-255 Blue color intensity 000-255 White color intensity 000-255 LED 1 Red color intensity 000-255 LED 1 Green color intensity 000-255...
- Page 8 Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe down the outside casing. 2. Clean the external optics with glass cleaner and a soft cloth every 20 days. 3.
