APOLLO
AC Dual-Output EV charger with Media Board
ELECTRIC VEHICLE CHARGER
INSTALLATION AND INSTRUCTION MANUAL
APOLLO-V0001-31.03.2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APOLLO and is the answer not in the manual?

Questions and answers

Summary of Contents for Hydra APOLLO

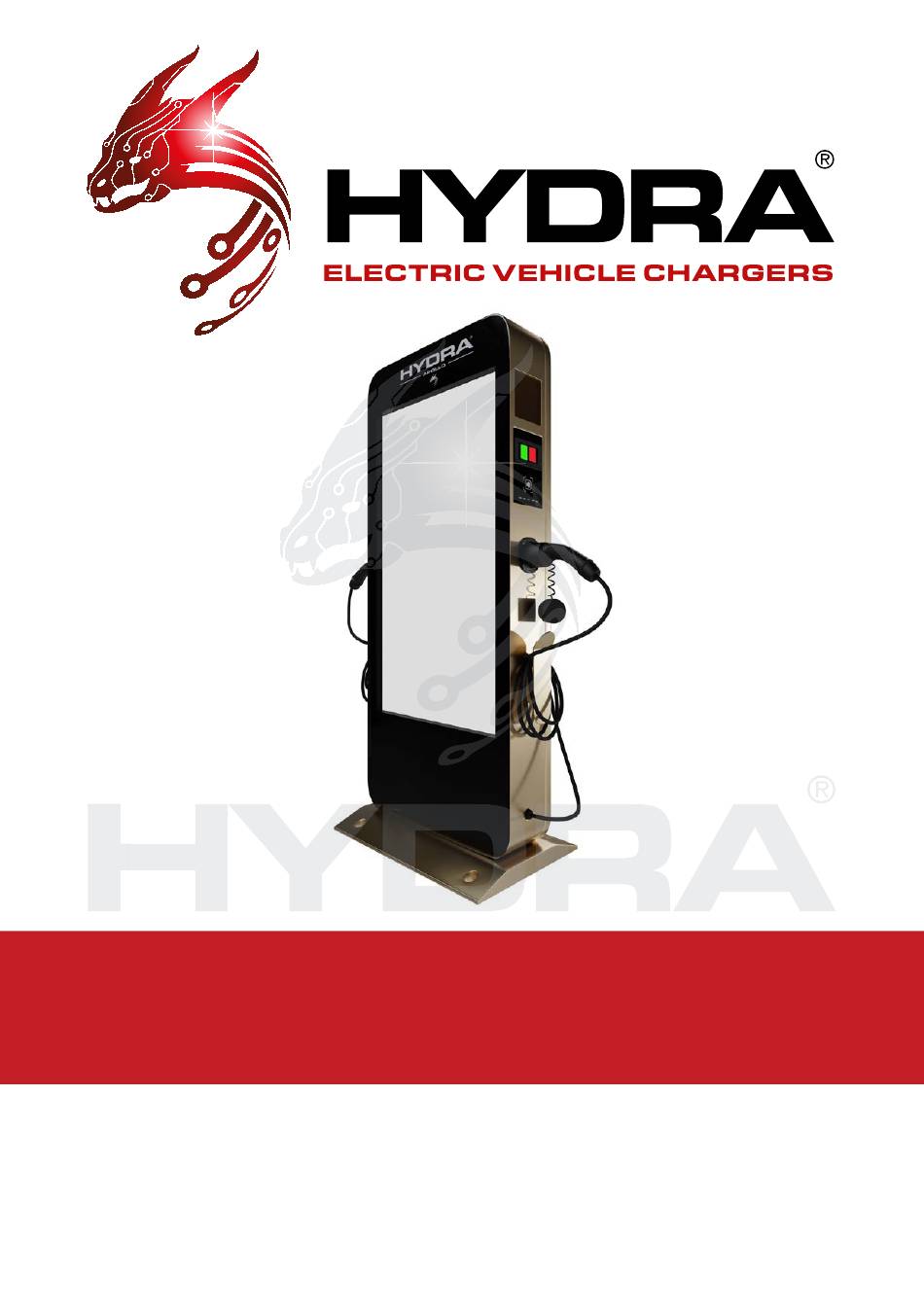

  • Page 1 APOLLO AC Dual-Output EV charger with Media Board ELECTRIC VEHICLE CHARGER INSTALLATION AND INSTRUCTION MANUAL APOLLO-V0001-31.03.2022...
  • Page 2: Table Of Contents

    CONTENTS SAFETY ....................................3 Safety Identification ...............................3 INTRODUCTION..................................6 Serial Number Identification ............................6 Appearance ..................................7 Technical Specifications ..............................8 Product Features ................................10 SYSTEM ARCHITECTURE ..............................11 Electric ....................................11 System Communications .............................11 INSTALLATION ..................................12 Procedure ..................................12 Network connectivity requirements ..........................13 Tool preparation ................................14 Internal structure ................................15 Site Space Requirements ............................16 Installation Instructions ...............................17 Electrical Requirements ...............................18...
  • Page 3: Safety

    SAFETY SAFETY ANNOUNCEMENTS Before operating the EV charger, read the instructions and precautions carefully to reduce the risk of accidents. The “caution, warning, hazard” notices in the product and product manual do not represent all safety concerns to be observed and are only intended to supplement the various operational safety precautions. In carrying out the company’s product and equipment operations, you must comply with relevant industry safety norms and strictly abide by these instructions to provide the appropriate equipment precautions and special safety instructions...
  • Page 4 SAFETY ELECTRICAL SAFETY HIGH VOLTAGE Some components of the power system operate with high voltage. Direct or indirect contact with these components through non-insulated protective material poses a fatal hazard. The installation of AC power supply equipment must comply with safety regulations, and personnel carrying out the installation of AC equipment must be qualified in high voltage AC-power operation.
  • Page 5 SAFETY SHORT CIRCUITS It is strictly prohibited to short-circuit the power supply system to the positive and negative poles or to short the non-ground pole to ground during operation. Short circuits can cause equipment to burn and pose a personal safety hazard. In addition, the polarity of the cables and interface terminals must be strictly checked when carrying out live work.
  • Page 6: Introduction

    AC006- POLYCARBONATE REINFORCED ABS AC PILE PAC- ADVERTISING AC PILE The HYDRA APOLLO has a single/dual connector output of 7/22/43kw function. Dual outlets can be configured at the same time or in combination with Type1 J1772, Type2 and Mennekes connectors. The system can be installed outdoors (but for safety reasons, if the water level reaches the charger connector, it should not be used in rainy or snowy conditions).
  • Page 7: Appearance

    INTRODUCTION APPEARANCE Car Parks / Public Charging Station Material Metal housing Dimensions (mm) 600(L)x820(W)x1720(H) excluding hangers, etc Installation type Free-standing Cable layout Bottom Weight 53kg Cable length ≥4.2m(External Line) Charging socket Type1 or Type2 or Type1 & Type2 Fan (if fitted) Touch Screen RFID Card Reader ➊...
  • Page 8: Technical Specifications

    INTRODUCTION TECHNICAL SPECIFICATIONS Dimensions 600(L) x 820(W) x 1720(H) mm Weight 185KGS (including cable) COMPONENT Cable length ≥4.2m SPECIFICATIONS Shell material Alloy Screen 5” LCD touch screen TN-S 240V AC (single phase) Input voltage 400V AC (three phase) ±20% Input frequency 50hz/60hz 7kW (single phase) Rated power...
  • Page 9 INTRODUCTION TECHNICAL SPECIFICATIONS (CONTINUED) Indoor/Outdoor Operating temperature -20°C ~ +70°C Operating humidity 5% to 95% Elevation <2000m WORKING Protection level IP54 ENVIRONMENT Cooling method Ambient air cooling Ground detection ≤30mA Sound level ≤50db (normal input/output power at ambient 25°C) RoHS Meets the R5 requirements of the RoHS directive ✆...
  • Page 10: Product Features

    INTRODUCTION PRODUCT FEATURES The HYDRA APOLLO AC Charger has a modern design and user-friendly interface, mainly for public commercial use. The modular design increases charger utilisation and ease of operation and maintenance. SAFETY FEATURES Hardware protection features: Overcurrent protection Overvoltage protection...
  • Page 11: System Architecture

    SYSTEM ARCHITECTURE ELECTRIC Transformer - Switch - Charger - Car TN-C-S 10kV/400V 10kV INTERNAL SYSTEM COMMUNICATIONS OCPP cloud Internet OCPP OCPP proprietary controller protocol RS-232 ISO15118 SECC& EVSE CANH controller EVCC CHAdeMO/GBT CANL ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
  • Page 12: Installation

    INSTALLATION PROCEDURE SAFETY INSTRUCTIONS The operating voltage and current inside the charging system are high, and the following regulations should be observed at all times to ensure personal safety: 1. Charging systems must only be installed by personnel who have been trained in, and have sufficient knowledge of, the charging system.
  • Page 13: Network Connectivity Requirements

    INSTALLATION NETWORK CONNECTIVITY REQUIREMENTS The recommended way to connect to the network is to access 4G wireless communication or a Wi-Fi module integrated in the charger. A SIM card meeting local networking requirements is required. Make sure the local signal strength is strong and stable; otherwise a signal amplifier must be installed. If there is no local 3G/4G communication signal, a standard wired internet connection is available.
  • Page 14: Tool Preparation

    INSTALLATION TOOL PREPARATION STANDARD TOOLS NAME DESCRIPTION Multimeter Checking the electrical connections and electrical parameters Electric impact drill Drilling Impact drill bit (Ø 14mm) Drilling Tape measure (5m) Measurement Level ruler Measurement Crosshead screwdriver Unpacking Pliers Unpacking Wire Stripper Removing the insulation sheath / jacket Terminal pressure line pliers Pressing the terminals Bevel cutting pliers...
  • Page 15: Internal Structure

    INSTALLATION INTERNAL STRUCTURE Fans Door Antenna Control Board Temperature Control Board Power Supply Power Supply Power Supply Switch Fans Power Line Outlet Emergency Stop Touch Screen RFID Card Reader LED status indicator OCPP Charge lead output MID relay x 2 Auxiliary Power Supply MID Meter x 2 Contactor x 2...
  • Page 16: Site Space Requirements

    INSTALLATION SITE SPACE REQUIREMENTS Adequate installation space should be reserved to ensure safe and reliable operation, ventilation and maintenance of the equipment. Installation requires 1900 x 1200 mm of space, calculated as follows: Product size: 900mm(L) X 600mm(W). Front reserved spacing ≥500mm to ensure the front door open/close operation is normal and all related operations are unhindered.
  • Page 17 INSTALLATION FOUNDATION INSTRUCTIONS A dedicated foundation is not necessary when the equipment is installed indoors or in higher and drier sites, but the ground level plan error per square meter must not exceed ±1.5mm, and the ground strength level of the installation position must not be less than C30.
  • Page 18: Installation Instructions

    INSTALLATION CABINET INSTALLATION INSTRUCTIONS TRANSFER LOADING AND UNLOADING Lifting and moving the charger must be carried out by trade professionals using a dedicated load-bearing forklift/crane or other professional load-bearing transfer device. Do not drop or hit the device. Move the equipment to a pre-made concrete base and lift the charger into place with a lifting device. INSTALLATION: Carefully and slowly lower the charger into place.
  • Page 19: Electrical Requirements

    INSTALLATION ELECTRICAL REQUIREMENTS Cable type: Three-phase, five-wire (TN-C-S/TN-S) confirming the need for shielding as required by local laws or norms If there is a shield, both ends of the shield are connected to the PE secure ground. Cable diameter requirements are determined by the contractor or electrical engineer, based on power, distance and industry standards, or the following recommendations: ZR-YJV-multi-core-sheath power cable.
  • Page 20: Connect The Power Cable

    INSTALLATION CONNECT THE POWER CABLE Note: Turn off switches and pull out all fuses before connecting electrically CONNECT THE GROUND CABLE The charging system uses a common grounding method, using a ground cable to connect the ground copper row of the charging cabinet with the main ground row. CONNECT THE AC INPUT 1.
  • Page 21: Commissioning

    COMMISSIONING CHECK BEFORE COMMISSIONING Before starting commissioning work, the following conditions need to be prepared and validated: All preparation, installation, connections, etc. have been completed. The charger input power supply has been connected and the charger power-up capacity is already available. If there is no 3G/4G signal, the network needs to be connected via a wired network.
  • Page 22: Power On Standby Flowchart

    COMMISSIONING SWITCH CHART POWER ON STANDBY FLOWCHART Boot up Power On Self Test When connected to the internet OCPP connected ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
  • Page 23: Charging Operation

    COMMISSIONING CHARGING OPERATION Charging can be carried out in two ways: card-free charging (code scanning, app) and card charging (IC card, POS machine) (optional). Click on the Charger information to obtain the charger output capacity and operating status information. Note that the charger cannot charge a vehicle if there is an alert showing on the charger.
  • Page 24: Non-Operational Mode Flowchart

    COMMISSIONING NON-OPERATIONAL MODE FLOWCHART CLICK ‘CONFIRM’ TO COMPLETE SETUP Click on this icon Click this button to change the mode ‘ON’ = Business use Set successfully and automatically The current mode ‘Non-Business’ return to the BASIC SET menu Click ‘Confirm’ to complete the change ✆...
  • Page 25: Emergency Operation

    COMMISSIONING EMERGENCY OPERATION Refer to this section only if an exception has occurred or the charger has been mishandled. Emergency stop: In the event of an emergency, quickly remove the transparent protective cover (if present) and press the red Emergency Stop button to cut off the output power supply. Do not use the Emergency Stop button for normal shutdown.
  • Page 26: Setup

    COMMISSIONING SETUP CHANGE PASSWORD Input old password Password changed successfully Displays New Password Input new password Re-enter the password to confirm Click ‘Confirm’ to complete the change Cancel the password change ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
  • Page 27: Using A Static Ip Address

    COMMISSIONING SWITCH TO ETHERNET MODE: AUTOMATIC MODE The current mode: Automatic Loading ... Setting successfully Click ‘Connect’ Ethernet icon USING STATIC IP ADDRESS MODE Use static IP addresses mode Loading ... Setting successfully Enter the IP address Ethernet icon Click ‘Connect’ SWITCH TO WIFI MODE IF THE WIFI LIST IS EMPTY, PLEASE REFRESH THE WIFI NETWORK LIST FIRST Refresh the WIFI list first...
  • Page 28: Set Dns

    COMMISSIONING SWITCH TO 4G MODE The current mode: Ethernet Click ‘OK’ Setting successfully Click ‘4G’ to switch to 4G mode 4G icon SET DNS Click ‘Use the following IP address:’ Input DNS: Click ‘Connect’ CHANGE THE URL Click on the input box Input new URL Click ‘OK’...
  • Page 29: Platform Conectivity

    For connection to platform operations, your on-site installer should be able to assist or alternatively contact Hydra EVC Ltd. Hydra charger support connects customers through OCPP protocol with the existing operating platform. Please contact the Chargecore Sales or Service Engineer.
  • Page 30: Aftersales

    AFTER-SALES MAINTENANCE AFTER-SALES SERVICE Parts are covered by a three-year warranty. During this period any defective part will be replaced. One-to-one technical engineer support is available. DISCLAIMER Product equipment must be used under certain conditions. Should the following circumstances lead to an accident or damage, we will not be held responsible.
  • Page 31 AFTER-SALES MAINTENANCE MAINTENANCE (CONTINUED) SEMI-ANNUALLY Check ground bolt torque and tighten if required. ANNUALLY Check all internal components. ON-SITE MAINTENANCE This device is an internet of Things-type charger with pre-charge self-test, daily regular self-test, online monitoring of electrical parts and other intelligent functions. If working, simply perform routine maintenance, no overhaul maintenance is required.
  • Page 32: Procedures

    PROCEDURES DURING INSTALLATION, REPAIR AND REPLACEMENT OF SPARE PARTS Live work is strictly prohibited. Unauthorised dismantling is strictly prohibited. Follow safety procedures when operating the equipment. Access to the power supply line should be followed in the PE ground -> zero-line -> phase line order. All operations must comply strictly with relevant safety standards.
  • Page 33: Appendix

    APPENDIX SCREEN ICON KEY Logo The connector is not inserted Power on Progress bar Plugged in Charging mode selection: SoC, Charged % per unit Charging (animation) Charge completed Loading (animation) Charging has been booked OCPP connected Fault during charging OCPP connected Charging outlet not available Wired network Billing charged upon charging...
  • Page 34: Fault Diagnosis

    APPENDIX FAULT DIAGNOSTICS (CAUSE AND RESOLUTION) Display status Potential cause Recommended solution The display is black and Charger’s AC input is not Check that the charger input power supply is ok. AC cannot be illuminated powered. three-phase input voltage should be 240v per phase by touch and line voltage 400v.
  • Page 35: Electrical Diagram

    APPENDIX ELECTRICAL DIAGRAM *6A(EUR)/6B(US) plug shape is different, the plug name and definition are consistent and the wiring is identical ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
  • Page 36: Restriction Of Hazardous Substances

    APPENDIX RESTRICTION OF HAZARDOUS SUBSTANCES ELEMENT IDENTIFICATION TABLES (ROHS) PART TOXIC AND HARMFUL SUBSTANCES OR ELEMENTS Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium chromium biphenyl diphenyl ethers CR6+ PBDE Cabinet, box and • • • • • copper row Charging module •...
  • Page 37: Authentication

    APPENDIX AUTHENTICATION SECC CERTIFICATION ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
  • Page 38 APPENDIX AUTHENTICATION CE CERTIFICATION ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
  • Page 39 ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
  • Page 40 HYDRA EVC Ltd Telephone: 01268 205 121 Email: sales@hydraev.co.uk Unit 11, Totman Close, Rayleigh, Essex SS6 7UZ ECHO-V0001-31.03.2022...
