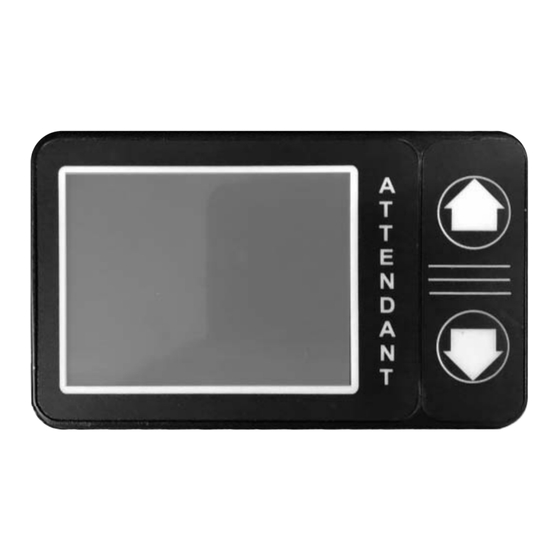

M290 REMOTE
ATTENDANT CONTROL
DEALER: This manual contains important safety and operational instructions specific to the
Motion Concepts M290 Remote Attendant Control box. This Manual MUST be given to the
End User of the product.
USER: Before using this product, please read through the instructions carefully and save
for future reference.
TRD0529 REV A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Motion Concepts M290
- Page 1 ATTENDANT CONTROL DEALER: This manual contains important safety and operational instructions specific to the Motion Concepts M290 Remote Attendant Control box. This Manual MUST be given to the End User of the product. USER: Before using this product, please read through the instructions carefully and save for future reference.
- Page 2 This manual may not be reproduced or reprinted either partly or completely without previous written consent from Motion Concepts or its statutory representatives. This owner’s manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make any necessary as they become necessary. Any changes made to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
- Page 3 User Manual. The symbols below are used throughout all Motion Concepts’ manuals to identify warnings, cautions and important notes. It is very important for you to read and understand them completely.
- Page 4 Up/Down button (arrows) to operate the selected motor function. PROGRAM MODE: In Program Mode, the M290 Remote allows Qualified Service Technicians the flexibility to set-up and reconfigure the Seating System to better meet the specific needs of the end user when necessary.
- Page 5 - 5 - In Standard Mode the M290 Remote operates as an attendant control box using the Left/Right arrows on the touch screen display to cycle through the available motor functions on the power positioning system (PPS), and the Up/Down buttons (arrows) to operate the selected motor function.
- Page 6 Note: Access to the identified Program/Set-up Options in the M290 remote is password protected, and restricted to Qualified Technical Service personnel only. Note: the M290 software version is also indicated briefly on the display screen when the remote attendant control is intially powered on.
- Page 7 Your power positioning system should never exceed the recommended safety limits. These Safety Limits are controlled by a Tipsy Angle Sensor that is mounted in a fixed position on our Motion Concepts Power Positioning Systems. The angle at which the limits are set is critical to the safe operation of the power positioning system (refer to the recommended Safety Limts/Angles provided below).
- Page 8 700 Ensminger Rd. Suite 112 Tonawanda, NY, USA 14150 716-447-0050 888-433-6818 Canada 84 Citation Dr. Units 1-7 Concord, Ontario, Canada L4K 1C9 905-695-0134 866-748-7943 www.motionconcepts.com...
