Instruction Sheet
Model NS Series Nut Splitters
www.tksimplex.com
Part Sheet Number
Revision Number
Date Code Range
Document Date
TD159
A
All Date Codes
0615
Important Receiving Instructions
Visually inspect all components for shipping damage. If any shipping damage is found, notify carrier at once. Shipping
damage is NOT covered by warranty. The carrier is responsible for all repair or replacement costs resulting from damage
in shipment.
CAUTION:
Simplex nut splitters are designed specifically for metal nuts which match sizes shown in the specifications chart
(maximum allowable hardness of nuts to be split is HRc44).
For materials and sizes not specified, contact Simplex Technical Services.
WARNING: To prevent personal injury, always wear eye protection whenever operating hydraulic nut splitter.
WARNING: To avoid injuries and possible damage to the nut splitter, do not use the nut splitter on glass, plastic or any
other material which would shatter.
WARNING: To prevent personal injury, do not place fingers on or near the cutting area while nut splitter is operating.
CAUTION: To avoid personal injury and damage to the nut splitter parts :
* Do not cut chain. Do not cut bolts .
* Do not use nut splitter to rotate nuts.
* Do not move nut splitter during cutting operation.
* Do not heat up nuts while nut splitter is in position.
Operation / Installation
Connect the nut splitter coupler to the hose coupler and pump. Firmly tighten couplers by hand to prevent restricted oil
flow.
Close the pump release valve. To remove air trapped in the hydraulic system operate the pump. With cutter head pointing
down, advance and retract the cutter blade several times.

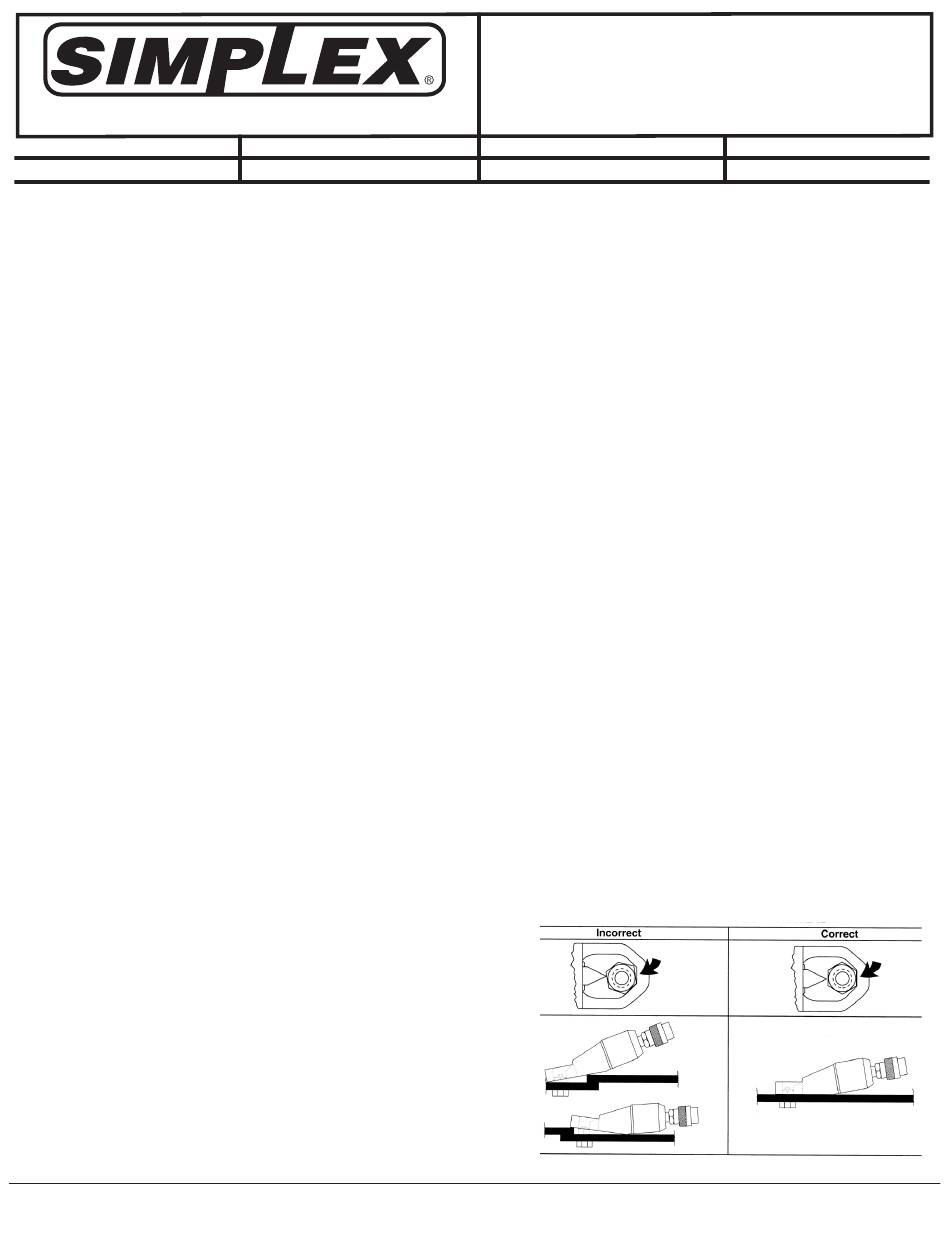

Place the nut splitter over the nut. The flat surface of the nut splitter must rest against one of the nut flats .
CAUTION:
Improper placement of the nut splitter on the nut may cause the
head to fail.
NOTE: Apply a suitable cutting fluid to stainless steel and hardened
steel nuts before splitting to reduce cutter blade wear and breakage.
!
!
To Maintain Your Warranty
Have your products inspected and repaired by an Authorized Simplex Service Center
Visit www.tksimplex.com to locate the nearest one or call 1-800-323-9114 US or outside US 1-630-590-6990
