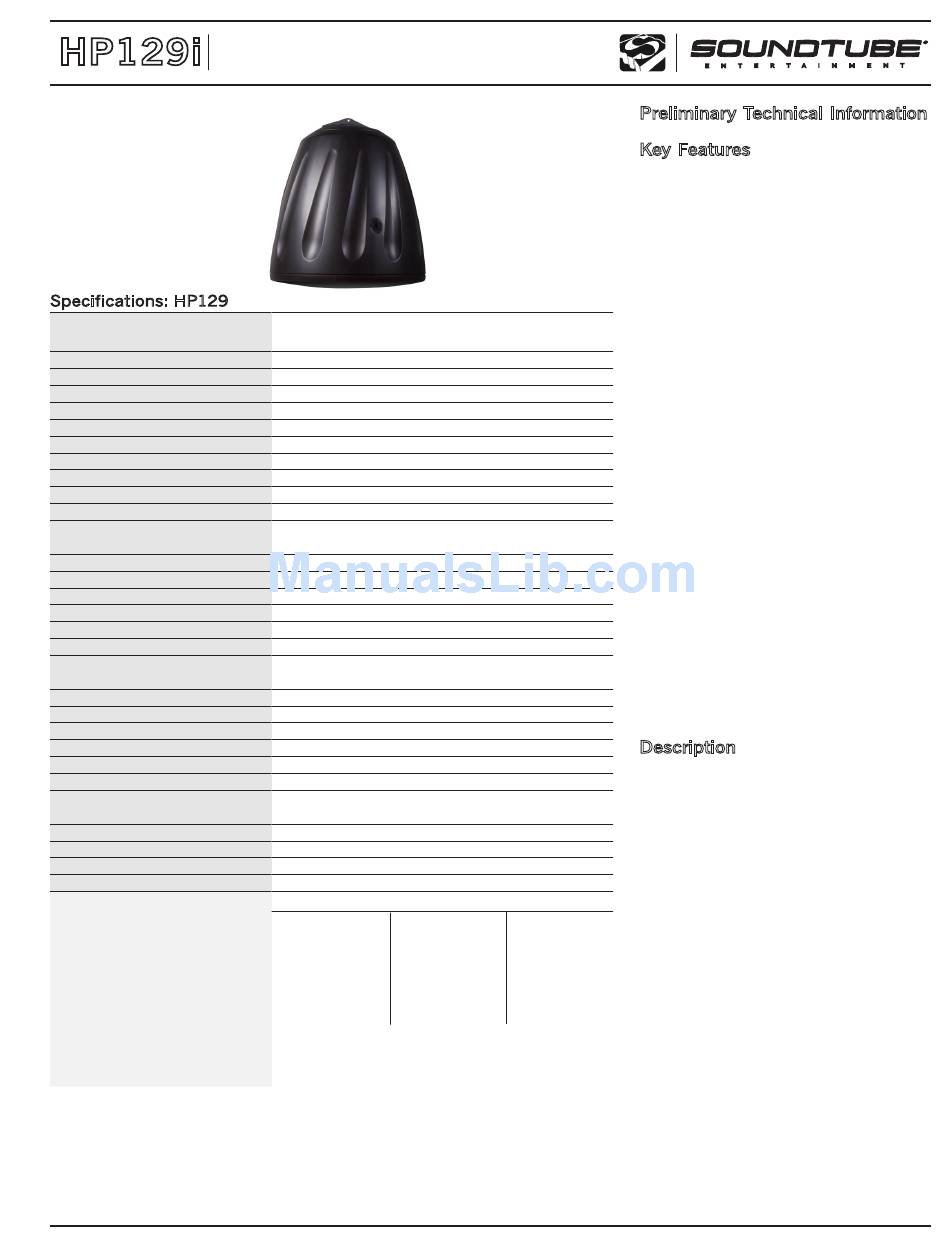

SoundTube High Power Speaker HP129i Specifications

HP129i
High Power Speaker
Technical Information for System Engineers
Specifications: HP129
System Type
Impedance (nominal) 1
Sensitivity dB @ 2.83V/1M
Sensitivity dB @ 1W/1M
2
Frequency Response (- 3 dB)
Frequency Response (-10 dB)
Max. Program Power
4
Max. Continuous Power RMS
Max. Power SPL @ 1 M 6
Tap Selector
Transducer - Low Frequency Driver
Transducer - High Frequency
Driver
Low Frequency Voice Coil
Crossover Frequency
Network Type: Low Pass
Network Type: High Pass
Enclosure Material
Grille
Inputs
Colors
Height (SM = Height)
Diameter (SM = Width)
Weight
Shipping Weight
Accessories
Included
Optional
Packaging
Regulatory - UL
Regulatory - CE
Impedance listed per IEC 60268-5
1
1w1m sensitivity determined using nominal
2
impedance
Frequency response measured in half or
3
full space as dictated by speaker mounting
configuration
Max program power is 3 dB above max
4
continuous power
Continuous power rating, EIA-426-B test
5
Max output based on max continuous power
6
Max useable SPL based on testing
7
by NWAA Labs
© 2008 SoundTube Entertainment. All rights reserved. PN-TS-CMEZ REV 06.16.08
12" 2-way high-power ported (150 Watt transformer for
70.0/100/25 Volt or 8 ohm direct)
8 ohms
97.0 dB
97.0 dB
98 Hz - 22 kHz
3
60 Hz - 22 kHz
3
300 w
5 150 w
119.0 dB
5-Position rotary switch with 8 ohm direct
305 mm (12 in) Treated fiber cone, treated cloth surround
1 x 35 mm (1.375 in) Mylar compression driver with
waveguide
34.0 mm / 1.34 in
2.2 kHz
24 dB per octave, 4th order
24 dB per octave, 4th order
Injection molded ABS baffle, glass fiber reinforced
Iridite-plated steel with powder-coat finish
4 Pin, 5 mm Euroblock for individual or daisy chain
connection
Black or white
17.8 in / 452.1 mm
18.0 in / 457.2 mm
28.0 lb / 12.7 kg
35.0 lb / 15.9 kg
Hanging hardware, Euroblock connector & terminal weather
boot
Surface mount bracket (AC-RS-SM129)
1 per box
Pending
Approved
Transformer Taps
70.7 V Output 100 V Output
150 w 119.0 dB 150 w 119.0 dB
75 w 116.0 dB 75 w 116.0 dB
38 w 113.0 dB 38 w 113.0 dB
19 w 110.0 dB
Preliminary Technical Information
Key Features
• High-SPL, high-efficiency system for
the sound reinforcement and PA markets.
• BroadBeamHP® coverage pattern pro-
viding smooth response and maximum
SPL across the audio spectrum.
• One 305 mm (12 in) treated fiber cone
with a treated cloth surround and one 35
mm (1.38 in) Mylar compression driver
with waveguide.
• Reduced amplification costs and maxi-
mum efficiency (97 dB sensitivity), with 8
Ohm impedance.
• Weatherized components indoor/out-
door applications and a ported enclosure
for added bass response (down to 60 Hz,
- 10 dB).
• Easy-access 5-position tap switch for
25/70.7/100 Volt and 8 Ohm settings
allows for easy ordering, stocking and
installation.
• Included accessories: hanging hard-
ware, Euroblock connector, terminal
weather boot.
• Optional accessories: surface-mount
bracket (AC-RS-SM129).
• High quality black or white painted
finish. Custom colors available.
Description
The HP129i is a 12" coaxial 2-way
hanging speaker with a surface-mount
option and a proprietary BroadBeamHP®
waveguide. Engineered to deliver true
high-SPL performance, the HP129i
incorporates a 12" treated fiber cone
and one 35 mm (1.38 in) Mylar compres-
sion driver with a professional-grade
electro-acoustic subassembly. The result
20 V Output
is a pendent-mount speaker with maxi-
19 w 110.0 dB
mum efficiency (97 dB 1W/1M) and an
9.5 w 107.0 dB
extended frequency response from 60 Hz
4.8 w 104.0 dB
– 22 kHz (-10 dB). For lasting and rigid
2.4 w 101.0 dB
performance, the enclosure is made from
injection-molded, glass-filled ABS.
Mounting hardware is included and
features hanging and safety cables, Euro-
block connector and terminal weather
boot. For easy ordering, stocking and
installation, every speaker is equipped
with a 5-position tap switch for 25, 70.7
& 100 Volt applications with voice coil/8
