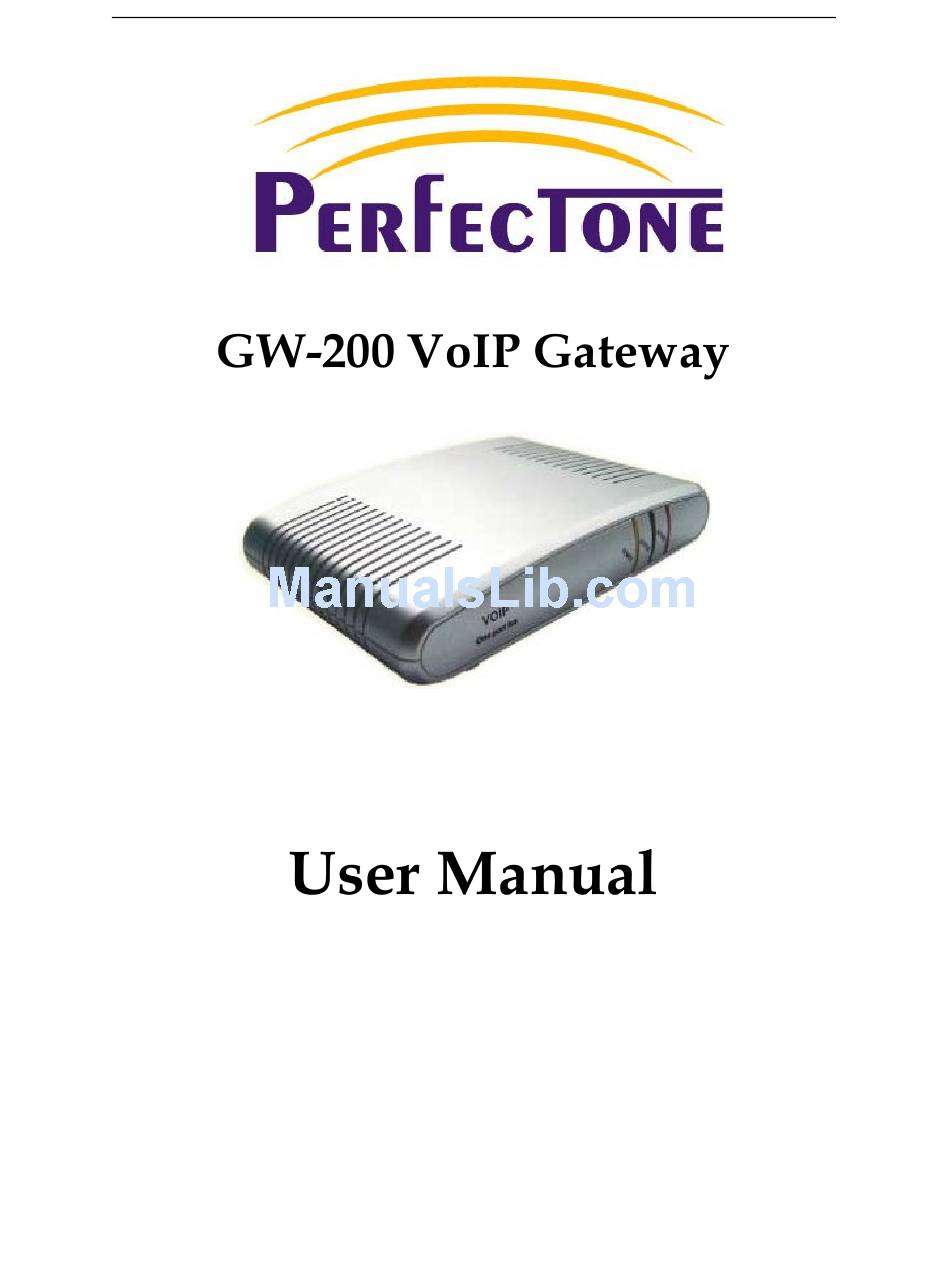

Page 1 GW-200 User Manual...
Page 2: Table Of Contents
GW-200 User Manual Breif Introductin of GW-200 VoIP Gatwway…………………………………………….3 Features…………………………………………………………………………………….4 Standard and Protocol…………………………………………………………………….4 Operating requirements……………………………………………………………………5 Electric requirements………………………………………………………………………5 Size…………………………………………………………………………………………..5 Installation………………………………………………………………………………… ..6 Configuration………………………………………………………………………………..7 Configure by Web brower………………………………………………………………….7 Telnet Configuration………………………………………………………………………21 Place a Call………………………………………………………………………………..38...
Page 3: Breif Introductin Of Gw-200 Voip Gatwway
IP address; to enter safe mode to retrieve the firmware and to set the IP type and IP address. To start, please connect your GW-200 VoIP Gateway with the LAN, a phone and the power supply properly. (see the following picture)The GW-200 will boot up.
Page 4: Features
1234 192*168*1*100, then press the “IP/SET” key on GW-200 and hang up the phone. Gateway will reboot again. Now the phone’s IP address is 192.168.1.100, if you want to check it, please refer to the item 1.
Page 5: Operating Requirements
GW-200 User Manual TCP/IP: Internet transfer and Control Protocol RTP: Real-time Transport Protocol RTCP Real-time Control Protocol VAD/CNG : save bandwidth DHCP Dynamic Host Configuration Protocol PPPoE Point to Point Protocol over Ethernet DNS Domain Name Server Telnet Internet' s remote login protocol...
Page 6: Installation
GW-200 User Manual Installation: Connect handset to base: insert handset cord into handset cord jack at the left side of the base. Connect Gateway to Internet: plug the RJ-45 Ethernet cable into the Ethernet Jack. Plug the other end of the cable into HUB.
Page 7: Configuration
GW-200 User Manual Configuration To configure GW-200, you can use web browser and Telnet commands. Configure by Web browser After you’ve got the local IP address of the gateway from the voice prompt, On a PC connecting with the gateway or at the same segment of the gateway, double click icon to open the IE browser.
Page 8 GW-200 User Manual Network Setting iptype: Set how gateway gets relevant network parameters by selecting corresponding item from drop down list. static ip: Select this item to authorize users set IP address, subnet ¡ £ ¢ ¤ ¦ ¥ ¨ § © ¢ ! " ¤...
Page 9 Select this item to enable DHCP mode. With this system, your LAN or router automatically assigns all the required network parameters to any device connected to it when the device log on. GW-200 Gateway is shipped from the factory with DHCP on. So, if you’re LAN or router is configured to use DHCP addressing, the gateway’s LAN parameters will...
Page 10 DNS server here. mac: MAC address is the physical address supplied by the Ethernet NIC. GW-200 gateway is shipped from the factory with a unique algorism MAC address printed on the back of the base. Protocol Setting Fig 3.3 Protocol Setting...
Page 11 register ttl : The gateway will send a keep-alive registration message gatekeeper every “register ttl” seconds. The value range is 10-65535. Default is 60. jitter size : Set buffer size of RTP package. The value range is 0-32. service type: This option is used to accommodate the miscellaneous requirements of the system providers.
Page 12 IPN: Use IPN’s system Yiyang: Use Yiyang’s system Thinker: Use Thinker’s system Suntek: Use Suntek’s system service addr, service id: Please put the URI (domain name/IP address) of the server into “service addr”. If “use service” is checked, please put the URI of gatekeeper into “service addr”...
Page 13 GW-200 User Manual domain name of the servers ( These web server helps to find out the public phone) into “nat such addr”, www.whatismyip.com. nat ttl: When gateway sit behind a NAT device, it will send packets to server every “nat ttl” seconds to keep the port mapping on the NAT device alive.
Page 14 can’t be the same as “register port”. local type: This parameter refers to how gateway authenticate itself to the gatekeeper. The meaning of each item is as follow: phone number: Use phone number as E.164 and ID to login the account: Use phone number as E.164 and designated ID filled in account field as ID to login GK.
Page 15 GW-200 User Manual Fig 3.4 Phone Setting use dialplan: Set whether use dial plan or use dial number by selecting the corresponding item in drop down list. disable: Do not use dial plan or dial number by selecting this item.
Page 16 GW-200 User Manual Beiing 10; Shanghai 21. idd code: With enable or dialnum selected in use dialplan drop down list, set country code according to E.164 dial rule. For example, China 86; U.S.A .1. idd prefix: With enable or dialnum selected in use dialplan drop down list, set international call prefix according to E.164 dial rule, such...
Page 17 GW-200 User Manual Dualmode prefix: This setting no need to set at moment. ring type: This setting no need to set at moment. Use digitmap: Enable/disable digit map by checking/unchecking the box. Call waiting: Enable/disable call waiting by checking/unchecking the box.
Page 18 GW-200 User Manual vad: Enable/disable VAD (voice activity detection). agc: Check for enable the Auto Gain Coctrol. aec: Check for enable Auto Echo Cancellation. codec1: Set the priority 1of the audio compression algorithm. The options are g729 g7231 g711u g711a and gsm.
Page 19 Put IP address or domain name obtained by ISP of FTP server supplying upgrade program into this field. nts ip: No needed to set for the Gateway(GW-200). Fig 3.6 Other Setting...
Page 20 GW-200 User Manual use daylight: No needed to set for the Gateway(GW-200). timezone: No needed to set for the Gateway(GW-200). When debug set as 0[disable], if input ordinary password (default one is 1234), then following page will pop up after clicking parameters can be modified.
Page 21: Telnet Configuration
On the PC choose Start>Run, and then type telnet 192.168.1.100 into Run field in popuping Run dialog. Or input telnet 192.168.1.100 in the DOS window. Then the following information will be displayed. GW-200 V1.40 settings Password : Then please type password. With debug is set as 0[disable], if type ordinary...
Page 22 If you type super password, then you will see: Password : ******** P:\> Above information indicates that gateway is under setting mode, and then you can set the GW-200 gateway by using the telnet commands. GW-200 Gateway Telnet Commands Explanation GW-200 gateway Telnet Commands Command...
Page 23 Usage: Display basic parameters of the GW200 gateway Relevant usage: None Detailed description: Display basic running parameters of the GW-200 geatway. Input ordinary password without debug being set as 0[disable], or input super password with debug set as 0[disable], then following parameters of gatway will be displayed: GW-200 V1.40 .014 settings...
Page 24 1234 debug 1[output] upgradeaddr [empty] sntpip 0.0.0.0 timezone 55[(GMT+08:00)Beijing,Hong Kong,Urumqi] Input ordinary password with debug set as 0[disable], following information will be seen: GW-200 V1.40 settings nataddr www.showmyip.com natttl 30 signalport 6800 rtptos 0 localtype 0[phonenumber] dialnumber 17911 iddprefix [empty]...
Page 25 With this system, your LAN or router automatically assigns all the required network parameters to any device connected to it when the device log on. GW-200 gateway is shipped from the factory with DHCP on. So, if your LAN or router is configured to use subnetmask 255.255.255.0...
Page 26 GW-200 User Manual DHCP addressing, automatically be configured as soon as it is connected to the LAN or router and powered up; 2: use PPPoE mode. Those ADSL and Cable Modem users please select this item for it is a protocol especially designed for them.
Page 27 GW-200 User Manual with gateway. set dns XXX.XXX.XXX.XXX With iptype set as 0, use this command to set IP address of DNS server. set dns2 XXX.XXX.XXX.XXX With iptype set as 0, use this command to set IP of backup DNS server.
Page 28 GW-200 User Manual thinker system; 22: use suntek system; 28: use txtc system. set serviceaddr XXXX Set IP address or domain name of gatekeeper. set serviceid XXXXX Set service ID according to required by service system. set nattraversal X Set NAT traversal or not. X ranged from 0 through 7: 0: do not use.
Page 29 Set NAT TTL XX is an integer between 10 and 65535 sec. default value is 20 sec. set phonenumber XXXXXXXX Set a phone number of GW-200 gateway. Value xxxxx must be an Arabic numeral and no longer than 16 characters. set account XXXXXX While calling card is set, set account of chosen card;...
Page 30 GW-200 User Manual This port is H.245 port using TCP protocol. XXXX is range from 1024 through 65535. set registerttl X Set register TTL. X is range from 10 through 65535 Sec. default value is 60 Sec. set rtptos X Set TOS segment of IP head package in RTP digital follow.
Page 31 GW-200 User Manual and pin; 5: use SHA1 authentication account and pin. set dtmf X Set DTMF relay type. X is ranged form 0 through 3: 0:control string 1:inband audio 2: signal keypad 3:rfc 2833. set dtmf payload X When dtmf X select 3(rfc 2833).This parameter can be used indicating type of RTP payload type.
Page 32 GW-200 User Manual Set the country code when set dialplan value set as 1 or 2. For example, the country code of China is 86; the country code of USA is 1, etc. Parameter xxxx must be an Arabic numeral and no longer than 4 characters.
Page 33 GW-200 User Manual set ringtype X This setting no need to set at moment. set digitmap X Set whether to use digitmap. X ranged from 0 to 1: 0: do not use digitmap; 1: use digitmap. set fwdnumber XXXXXXX Set receiving forwarded calls phone number. XXXX must be an...
Page 34 GW-200 User Manual without replying. set audioframes X Set audio frames in RTP package. X is Arabic numerals between 0 and 7. set 6.3k X With G.7231, set PA168X IP phone to use 6.3K rate or not. X is ranged from 0 through 1: 0: use 6.3K rate; 1: use 5.3K rate.
Page 35 0 through 4: 0: g729; 1:g7231; 2: g711u; 3: g711a; 4: gsm. set password XXXX Set password of the GW-200 Gateway. XXX must be ASCII characters. set superpassword XXXX Set super password of the GW-200 Gateway . XXX must be ASCII characters. X is range X is range X is range...
Page 36 XXX.XXX.XXX.XXX Set IP address or domain name of FTP server supplying upgraded program of GW-200. set nt XXX.XXX.XXX.XXX No needed to set for the Gateway(GW-200). set daylight X No needed to set for the Gateway(GW-200). set timezone XX No needed to set for the Gateway(GW-200).
Page 37 Relevant usage: None Command write Syntax description: No keyword and parameter Usage: Save the configuration and restart the GW-200 gateway. Command ping Syntax description: ping IP address Usage: ping IP address of other NAT device Relevant usage: In telnet window, input ping xx.xxx.xx.xx an IP address and return, then the result will be displayed.
Page 38: Place A Call
So if nothing is displayed after too long time, it means that ftp is fail. Note All the Telnet commands of GW-200 gateway should be written in low case and the password is case sensitive.
Page 39 When the call is finish, put back the handset. Place a call with Fix IP Address If GW-200 Gateway which with the Fix IP address and without used the Gatekeeper service, you can place a call to which also with Fix IP and without used the Gatekeeper service.
