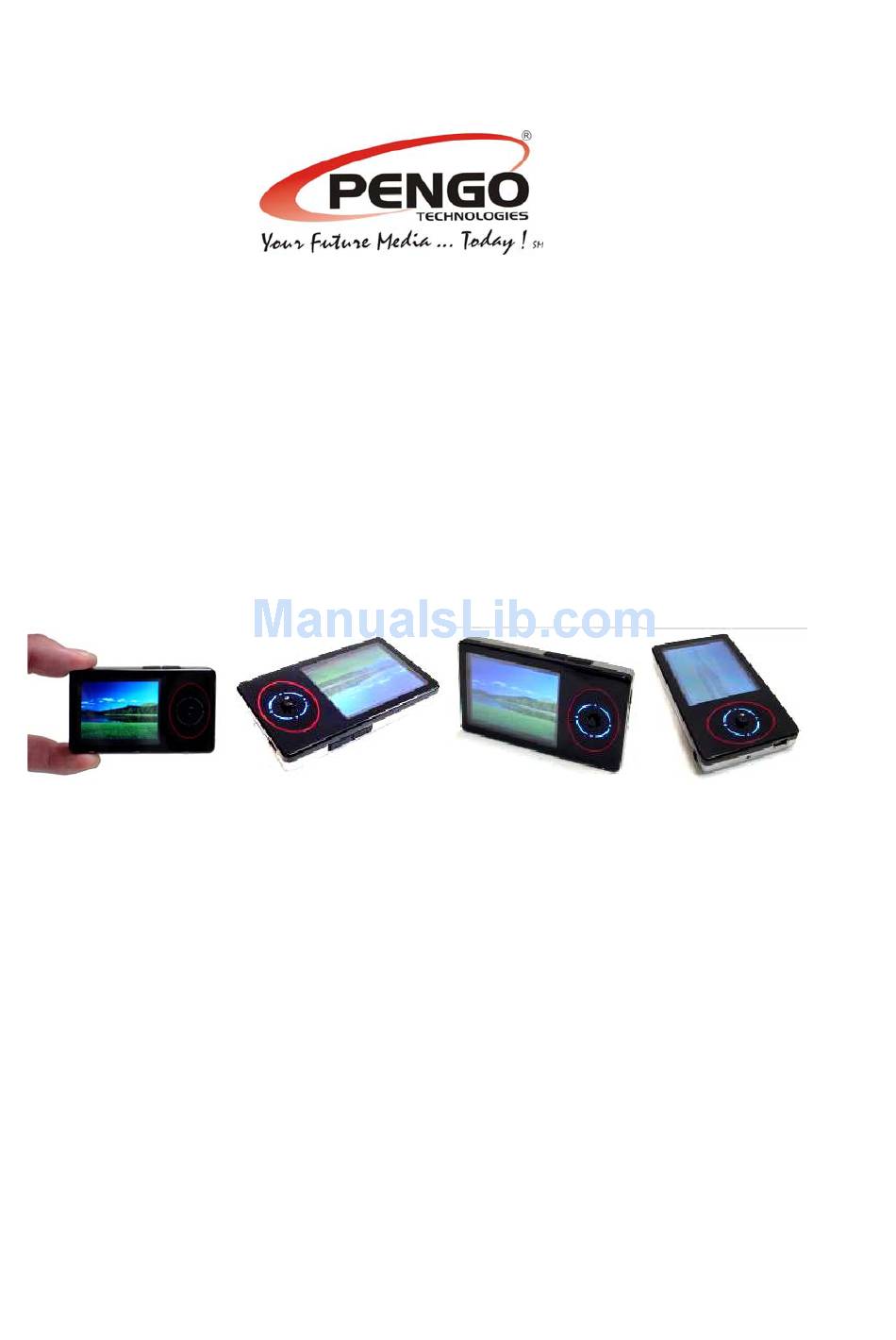

Digital Media Player
MP3 Player / Software MP4 Video Player / Picture Browser / Voice
Recorder / E-Book / FM Radio / Flash Memory Drive
User's Manual
084478062012
(For Model #06201, UPC Code
)
Release 1.0 (March 2007)
The Product and materials mentioned in this manual are subject to change without prior notice.
Page 1 of 24
Advertisement
Table of Contents
Summary of Contents for Pengo 6201
- Page 1 Recorder / E-Book / FM Radio / Flash Memory Drive User’s Manual 084478062012 (For Model #06201, UPC Code Release 1.0 (March 2007) The Product and materials mentioned in this manual are subject to change without prior notice. Page 1 of 24...
-
Page 2: Table Of Contents
Contents Precautions……………………………………………………………………………………….. Characteristics……………………………………………………………………………………. About the Player………………………………………………………………………………….. Screen Descriptions………………………………………………………………………………... Basic Operation…………………………………………………………………………………… System Menu……………………………………………………………………………………… Settings Menu…….……………………………………………………………………………… Listen to Music…………………………………………………………………………………… Voice REC………………………………………………………………………………………... Resources Manager………………………………………………………………………………. Picture Browse/FM….…………………………………………………………………………… E-Book…………………………………………………………………………………………… Game Function (Optional)……………………………………………………………………….. USB Disk…………………………………………………………………………………………. Transfer and Play Video File……………………………………………………………………… Upgrade Player Driver...…………………………………………………………………………. Troubleshooting………………………………………………………………………………….. Specifications…………………………………………………………………………………….. Page 2 of 24... - Page 3 Precautions This manual contains important safety measurements and proper operation information. Please read all the information carefully before using the device in order to avoid any unexpected accidents. Do not expose the player to extreme conditions (High Temperature, Humidity, or dust). Do not expose the player to a temperature over 40°...
- Page 4 Characteristics • 2-inch 262K full-color TFT display • Multi music formats: MP3, WMA and WAV, and real audio frequency display • MPEG-4 video format play, full-screen play display • High-definition JPEG picture browser function • Digital recorder • Energy-saving settings, adjustable brightness control, customizable power off timer •...
-
Page 5: About The Player
About the Player Key Explanation: ON/OFF: On/Off/Pause switch Next/Fast Forward function key (► ) Previous/Fast Reverse function key (◄) Play/Mode key (OK) Volume decrease (VOL -) Volume increase (VOL+) Earphone Page 5 of 24... -
Page 6: Screen Descriptions
Screen Description Music Play REC Mode Page 6 of 24... - Page 7 Screen Description Video Play Picture Browser/E-Book/Resource Manager Page 7 of 24...
-
Page 8: Basic Operation
Basic Operation Power On/Off Power On: Push the power switch to the ON position, long press display the Boot interface and enter the working mode before the Normal Power Off. Power Off: a. In Play state: short press b. In Play state: long press c. -
Page 9: System Menu
System Menu Main Interface After entering the Main Interface, select your desired option among [Music ]/[Video ]/ [FM ]/ [Photo]/[Text]/[Record]/[Navigation]/[Game]/[Setting] circularly by pushing left or right; short press the MENU key to enter the option menu, long press the [MENU] key to exit the submenu and return to the Main Interface Setup In the Main Interface, push left or right to select the [Settings] option, short press the MENU key... -
Page 10: Settings Menu
Settings Menu Display Setup ①Backlight time has six options - 5 sec., 10 sec., 15 sec., 20 sec., 30 sec., and always on. ②Lum has five options - +1, +2, +3, +4 and +5, the higher level, the more bright. ③Backlight mode has two options - Normal or Electricity-saving mode. -
Page 11: Listen To Music
Listen to Music Play/Stop/Pause In the Music Play menu, connect the earphones to the player, select the desired song file by pushing left or right keys, short press the MENU key to begin playing; short press the MENU key to pause, operate it circularly. While playing music, the interface has a real audio frequency display, e.g., for LRC files, behind the frequency is the Synchronous Lyric. - Page 12 Listen to Music 1. Repeat Mode a. Once Stops after playing all the songs in each directory. b. Repeat 1 Repeats playing a single song. c. Folder once Play all the songs in the folder. d. Folder repeat Repeatedly plays all songs in a folder. e.
-
Page 13: Voice Rec
Voice REC Voice REC In Main Interface, enter the Record state; press the A-B/REC key to start recording, press the A-B/REC key to pause recording, long press the A-B/REC key to save the recorded file and enter the next Recording preparation state. Long press the [MENU] key to save the recording and exit the REC mode. -
Page 14: Other Modes
Other Modes Resources Manager (Navigation) Resources manager is one of the function characteristics. It allows you to see the “Inside” file type, structure and contents more clearly for convenient management and searching of file contents. Delete File In Resources Manager (Navigation) mode, you can select music or video files to be deleted; press the A-B/RCA key to display the [Delete] Dialog box, select “Yes”... -
Page 15: E-Book
Manu: Press MENU Key to confirm, press left or right to change the frequency manually, long press the [MENU] key to exit. Auto: Press MENU to enter, the player will automatically search, after searching the player will display, pres CH XX, press left or right to select the station. Mem: Press the MENU key to enter, press + or _ to select the stations, press MENU to confirm and store, the frequency displayed on the screen will replace the frequency that was stored before. -
Page 16: Usb Disk
USB Disk USB Display Mode The player has a high-speed USB2.0 port with a transmission speed of 5M/S. This player is a standard USB disk and supports the following systems: Windows98 (Driver installation is necessary), over Windows2K (it’s unnecessary to install the driver), Mac OS 10.3 and over, Linux Redhat 8.0 and over. - Page 17 Convert and Play Video File This player can play converted AVI Video formats. Most WMV, RM, AVI, VOB or DAT Video files can be converted into AVI video format using the video converter software on the Driver Disc. 1. Click and run the “AV Converter.exe” program, select your desired video/audio file and AVI video file routine to be generated, shown as follows: 2.
- Page 18 3. The successfully converted AVI video file can be played in your MP4 player. Enter the Video Play menu, select the corresponding file, short press the [MODE] key to play desired video, long press to exit (the Video Play interface refers to the Screen Description). Page 18 of 24...
-
Page 19: Upgrade Player Driver
Upgrade Player Driver The player can upgrade or restore the damaged player driver using the tool software in the Driver Disk. 1. For the initial upgrading on your computer, you will need to insert the driver disk into the CD-ROM of the computer, connect the MP4 player with the computer, this procedure requires you to press and hold the Left key until the Installation Interface program appears on the screen. - Page 20 5. Connect the player to your PC using a USB cable (press and hold the Left key before the On-line operation), click [Burnt Firmware] until the Auto Upgrading is achieved. Page 20 of 24...
- Page 21 Note: A firmware upgrade is to improve and optimize the performance of the player. The normal work of the player would not be affected even if the firmware isn’t upgraded. The wrong operation of upgrading firmware would cause the device not to work normally! The firmware upgrade software of this player should not be applied to any other series/model of player.
-
Page 22: Troubleshooting
Troubleshooting If the player can not be played normally, please check the following: Troubles It cannot be turned on The player is blocked It cannot be played It cannot upload/download the file or the disk can not be found in computer I cannot record anything Words on the display are deformed... -
Page 23: Specifications
Product Specifications Items Dimensions Weight TFT colored display Language support Data transmission speed Supportable file format Supportable video format AVI, RM, VOB, DAT, RMVB etc. (should be Max. output power Storage media Power supply Usable time of battery Working temperature Supporting operating Specifications... - Page 24 PENGO TECHNOLOGIES, INC. (Limited Warranty — U.S. Only) The limited warranty set forth below is given by Pengo Technologies, Inc. (“Pengo”) with respect to the Pengo MP3/MP4/USB Flash Drive Product Line (the “product”) that you have purchased, when purchased and used in the United States.
