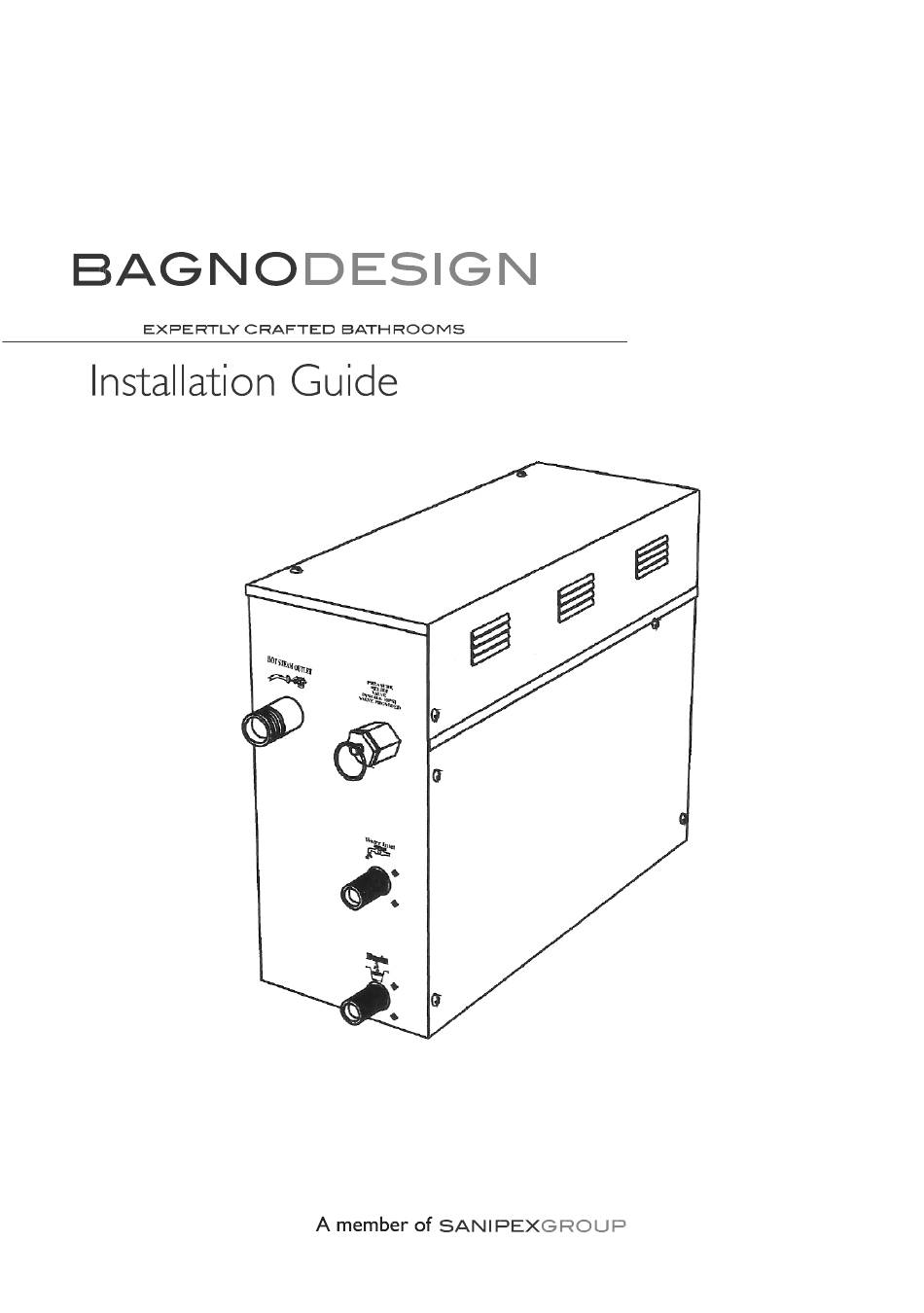

- Page 1 BDD-SPA-GEN3-1-A BAGNOSPA STEAM GENERATOR 3KW 220V50HZ WITH DIGITAL CONTROL PANEL, BLUETOOTH MUSIC BOX, 2X SPEAKERS, WIFI BOX AND 4 RGB LIGHTS www.sanipexgroup.com...
-
Page 2: Table Of Contents
GEN3-1 Cataloge Prologue------------------------------------------------------------------------------1 Users instruction---------------------------------------------------------------------1 The selection of the place of the steam equipment installation-------------------1 The typical illustration of the steam equipment installation-----------------------2 Installation of the tube---------------------------------------------------------------3 Drawing of the steam generator----------------------------------------------------5 Electric requirements----------------------------------------------------------------6 Power line assemble illustration-----------------------------------------------------8 Wiring Diagram 380-415V(3PH)----------------------------------------------------9 Wiring Diagram 208V(3PH) --------------------------------------------------------10 Wiring Diagram 220-240V(1PH/2PH)----------------------------------------------11 Installation of the top light----------------------------------------------------------12... -
Page 3: Prologue
GEN3-1 Prologue Welcome to use GEN3-1 series stream generator,this series contains a steam furnace and a controller. You can adjust the temperature of the sauna room and set the working time of the steam as you wish. And the system contains a overheat/dry- burnt protection system... -
Page 4: Drawing Of The Steam Generator
GEN3-1 Stable and horizontal.The steam generator has a hanging groove for immobility on wall. Make sure the machine is steady and horizontally installed. On both sides and the top of the steam generator need to reserve at least 12 inches space. The place where the machine is installed must be easily cleaned up and convenient for the disassembly of the machine. - Page 5 Installation of pipeline: Warning: The installation of all the pipes should be operated by qualified plumbers with corresponding operation certificate in accordanceance with national requirements: 1. Use joints when connecting pipes. 2. Use brass pipes or copper hoses only. 3. Do not use black and galvanized or PVC pipes. Water supply pipe (1/2'') 1.
- Page 6 GEN3-1 Important: 1. Please consult your distributors of building materials like acryl, fiber glass or other anti-heat sheet about the installation position of steam nozzle. 3. In the entire steam room, it is required that steam can not leak out. The pipes, its accessories and the holes in the wall should be air proof by applying air proof glue so that no steam will enter the holes in the wall.
- Page 7 GEN3-1 Blueprint for the steam engine...
-
Page 8: Electric Requirements
GEN3-1 Attention: To facilitate maintenance, keep the steam engine clean. If the information provided is limited, do not operate on the pipeline and electric equipment arbitrarily as shown in the figure for proportion. Caution: To avoid damage to the equipment, do not connect strong electric current directly to the components Electrical requirements: Electricity supply circuitry:... - Page 9 GEN3-1 Assembly graph for power wire Attention : To avoid the damage to the equipment, do not connect strong electric current to the component directly. Warning: This graph is for explanation only. For actual installation, refer to national and local electricity consumption codes by professional electricians.
-
Page 10: Wiring Diagram 380-415V(3Ph)
GEN3-1 Wiring Diagram 380-415V (3PH), 208V (3PH), 220-240V (1PH/2PH) -
Page 11: Installation Of The Top Light
GEN3-1 Installation of the top light CAUTION: Light is available in 12V/220V/230V outputs. Before connect to the light, please consult with manufacturer to know what voltage the light is, so as to avoid generator damage or cause danger. If the light output is 12V, the power of the light should not be more than 35W,othwise, transformer will be burned and cause danger. - Page 12 GEN3-1 Choose your type of machine Measure the length, width and height (foot) of the current steam shower or bathtub room. Example; L:7xW:5xH:8 = 280 Cubic Feet You would need Model s-900 (it is that simple) However, if you shower materials are; A:Natural Stone(Granite or Marble etc.) B:Exterior walls C:Celia Heights exceeding 8 FT.
- Page 13 GEN3-1 Configuration of steam generator Exclosure Water drain valve Terminal block Subsidiary water tank Insulation bracket Fuse Earth wire connector Circuit board Main water tank Steam Outlet Relay Heating Element Pressure relief valve 105OC Hi-limit Water level sensor Transformer Water fill valve 105°C Hi-limit...
- Page 14 GEN3-1 Common troubles trouble shooting methods To facilitate your use and maintenance of sauna room, the following common troubles trouble shooting methods are listed for identification. Causes of troubles Trouble-shooting methods Troubles 1. The fuse is burned. The machine does 1.
- Page 15 GEN3-1 The list above is for reference only. In actual checking and repairing, based on Important: the national and local codes, ask professional service personnel to operate. Technical parameter TYPE GEN3-1 4.5KW 7.5KW 10.5KW 12KW Power Output 15KW 18KW Potency Error ±10% ±10% ±10%...
- Page 16 www.sanipexgroup.com IND-SPA-GEN3-1-A-12-21...
