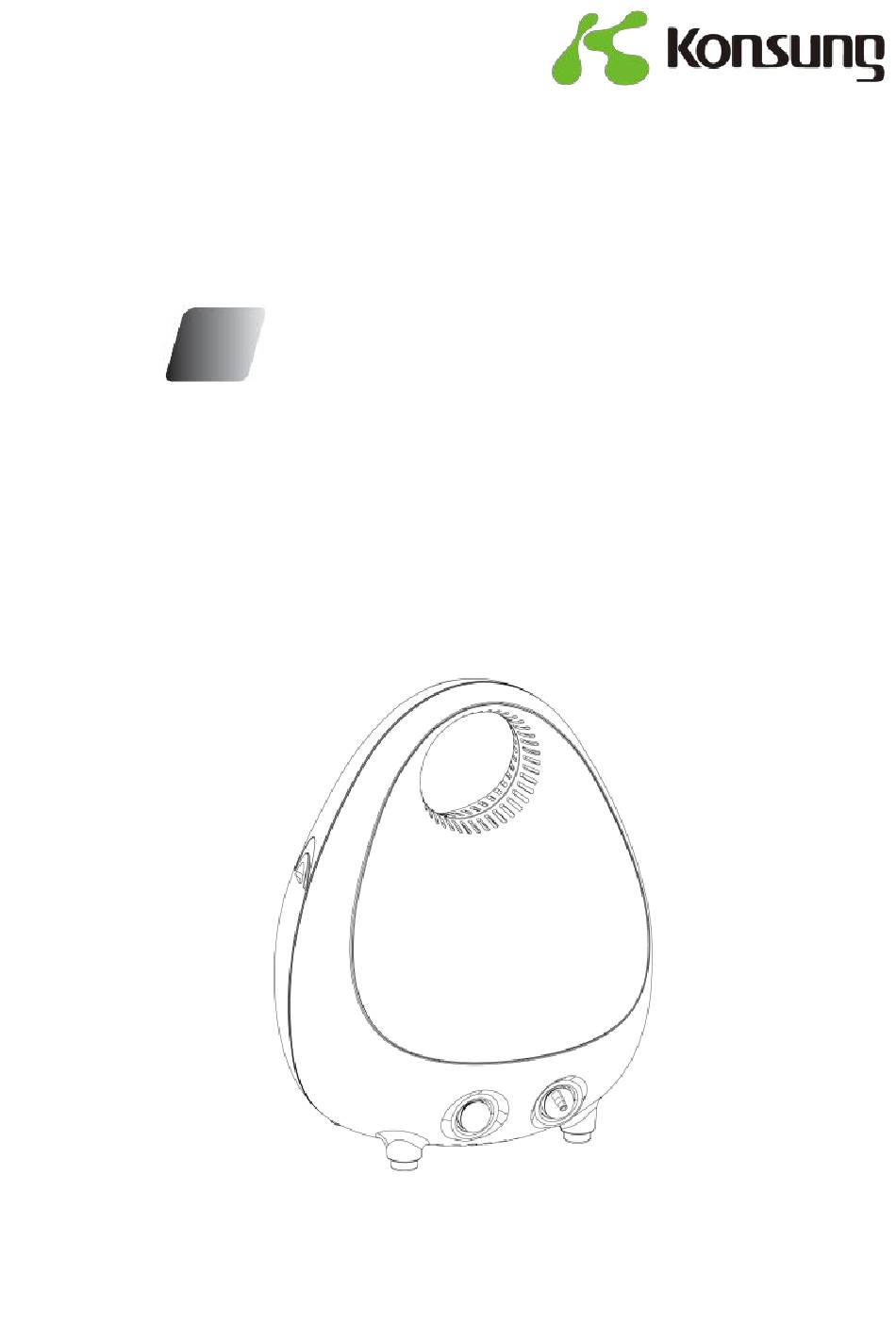

- Page 1 Read this manual carefully before use. Manufacture date: see the label Product life: 5 years ir Compressing Nebulizer Model: 608D User's manual Jiangsu Konsung Bio-Medical Science and Technology Co., Ltd...
- Page 2 It is reminded that the product shall be used strictly complying with this manual. User’s operation failing to comply with this manual may result in malfunction or accident for which Konsung cannot be held liable. Konsung owns the copyrights of this manual. Without prior...
- Page 3 Responsibility of the Manufacturer Konsung only considers itself responsible for any effect on safety, reliability and performance of the equipment if: Assembly operations, extensions, re-adjustments, modifications or repairs are carried out by persons authorized by Konsung, and The electrical installation of the relevant room complies with national standards, and The instrument is used in accordance with the instructions for use.
-
Page 4: Table Of Contents
Table of Contents 1 Product Introduction............1 1.1 Intended use and Contraindication ......1 1.2 Product specification..........1 1.3 Structure and working principle........3 1.4 Product features ............5 1.5 Equipment symbol and description......7 2 Safety Precautions............8 3 Operating and Maintenance ........... 11 3.1 Unpacking and Inspection........11 3.2 Preparations............ -
Page 5: Product Introduction
1 Product Introduction 1.1 Intended use and Contraindication Intended use: The 608D air compressor nebulizer is intended to aerosolize medications for inhalation by the patient for respiratory disorders. Contraindications: This nebulizer cannot be used for respiratory anesthesia and ventilator systems. - Page 6 11. Equivalent volume particle size distribution curve (measured when the solution composition is pure water, the ambient temperature is 23°C±2°C, relative humidity ≤80%) Note: V means the cumulative volume distribution, and N means the cumulative volume distribution particle size 12. Noise ≤58dB(A) 13.
-
Page 7: Structure And Working Principle
NOTE: Avoid violent vibration, collision and fall in transportation. Keep the unit up, and avoid rain and gently transport. Store this product in a well-ventilated and non-corrosive gas room. If the storage temperature is below 5°C, apply the device only when the temperature meets normal operating conditions. - Page 8 Nebulizing assembly Medication cup cap Mouthpiece Nebulizing Kit Mask Medication cup Air tube Key components: Main Structure Material Filter system Felt Compressor Cast aluminum alloys Electrical system Power cord, switch, fuse Nebulizing system Polypropylene Housing ABS resin Working principle The compressed air generated with the pump inside the main unit, when pumping out from the nozzle, can suck up the medication with the negative pressure between the nozzle and the air tube.
-
Page 9: Product Features
Working principle block diagram: Power supply Compressor Nebulizing assembly Output Electrical schematic: Electrical maintenance should be operated by professionals. 1.4 Product features In normal use, the atomized air flow is 3L/min to 9L/min (flow rate is not adjustable). The corresponding pressure is 60kPa to 150kPa. - Page 10 It is recommended that the user should use a minimum solution carrying capacity of 2mL. The maximum solution carrying capacity should not exceed the maximum scale of medication cup to avoid overflow. In the case of the maximum solution carrying capacity, the maximum temperature in the medication cup is 50°C during normal use.
-
Page 11: Equipment Symbol And Description
1.5 Equipment symbol and description Symbol Description Symbol Description Note! Consult the Do not expose accompanying to open flames documents Fragile-handle Caution Against Wet with care Class II This side up equipment ON (power switched Alternating current OFF(power switched Date of off) manufacture Type B applied part... -
Page 12: Safety Precautions
2 Safety Precautions WARNING Inspect the device and parts before using them each time, and check that there are no problems. Turn off the nebulizer if not use it. Unplug the plug cord from the power outlet if long time no use of nebulizer. Do not pull out the power cord when removing the plug. - Page 13 13 Only use the accessories specified by Konsung. Do not use damaged nebulizer. 14 This device is approved for human use only. 15 Operate the device only as intended. Do not use the device for any other purposes. 16 Do not use the device at temperatures greater than +40°C.
- Page 14 qualified nebulizing kit manufactured by qualified manufacturers. Keep the device out of the reach of unsupervised infants, children or mental patient. Do not carry or leave the nebulizing kit with medication in the medication cup. Turn off the nebulizer and unplug the AC adapter from the electrical outlet after using the device or before cleaning.
-
Page 15: Operating And Maintenance
3 Operating and Maintenance 3.1 Unpacking and Inspection Users, before installing and commissioning, shall first check whether the appearance of the product is good, and whether the variety and number of attachments is in line with the list of accessories attached to the specifications. If there is any defect, please contact the supplier or manufacturer timely. - Page 16 Turn the power switch to the off (O) position. Plug the AC power supply to power outlet. NOTE: Cannot use suspension liquid or high concentration medication. For type, dose, and regime of medication follow the instructions of your physician Pour the correct amount of prescribed medication into the medication cup and do not exceed the maximum mark.
-
Page 17: Nebulizing
Using holder Use the holder when temporarily placing medication cup. Nebulizing Turn the power switch to the on ( ) position. As the main unit starts, connect the air tube to the connector of the main unit and the medication cup respectively. - Page 18 After treatment, turn the power switch to the off (O) position. Disconnect the nebulizing kit from the air tube. Check the air tube. No condensation or moisture should remain in the air tube. Disconnect the air tube. Unplug the adapter from the power outlet. NOTE: In nebulization, keep the mouthpiece in mouth and close your mouth.
-
Page 19: Maintenance After Use
3.4 Maintenance after use The provided nebulizing kit is single use accessory, do not re-use. It does not require cleaning, disinfection and sterilization before use. Users can purchase masks or mouthpieces manufactured by qualified manufacturers. User can perform corresponding cleaning according to the instructions of the user's manual. Clean the main unit Clean the casing of the main unit frequently by using a clean and soft cloth moistened with water or mild... - Page 20 Disinfect the main unit Disinfection may cause damage to the nebulizer. We recommend that you disinfect the nebulizer only when necessary. Clean the nebulizer before disinfecting it. Recommended disinfectants are Ethanol 75%, isopropanol 70%. WARNING Never use EtO or formaldehyde for disinfection. Replace filter sheet If the air filter sheet has changed color or has been used on average for more than 500 hours, replace it with a new one.
-
Page 21: Troubleshooting Guide
4 Troubleshooting Guide Symptoms Causes Solutions The AC adapter is Turn the power switch off. not plugged into Plug the AC adapter into an an electrical electrical outlet. Turn the The main unit is outlet. device on. not operating when the power Replace the power fuse or switch is on. -
Page 22: Warranty And Service
condensation with a finger to get rid of inside the air tube. water. Filter sheet is not Excessive noise Install a filter sheet. installed If there are any other questions, please contact the manufacturer or supplier, or turn to professionals for maintenance. Non-professional maintenance personnel or personnel who have not been trained and authorized by our company are strictly forbidden to disassemble the nebulizer compressor for... -
Page 23: Contact Information
2 The non-controllable factor or the artificial damage is not applicable to maintenance scope. 3 The service term is subject to Konsung. 5.2 Contact information If any questions in equipment operation, please contact the manufacturer or local agency. -
Page 24: Emc
6 EMC This product has passed the electromagnetic compatibility test conducted by testing center. Please install and use this product according to the following electromagnetic compatibility information. Portable and mobile radio frequency communication equipment may affect the medical electrical equipment. Do not use this product near the places with strong electromagnetic interference sources, such as walkie-talkies, CT, MRI and other equipment. -
Page 25: Electromagnetic Immunity
Emission test Compliance Electromagnetic environment The nebulizer uses RF energy only for its internal function. RF emissions Therefore, its RF emissions are Group 1 CISPR 11 very low and are not likely to cause any interference in nearby electronic equipment. RF emissions Class B CISPR 11... - Page 26 ±2kV for ±2kV for Mains power power power quality should be Electrical fast supply lines supply lines that of a typical transient/burst ±1 kV for ±1 kV for commercial or input/output input/output hospital lines lines environment. Mains power ±1kV for line ±1kV for line quality should be Surge...
-
Page 27: Electromagnetic Immunity: For Non-Life Support Equipment And Systems
typical location in a typical commercial or hospital environment. Note 1: U is the AC mains voltage prior to application of the test level. 6.3 Electromagnetic Immunity: For non-life support equipment and systems The device is intended for use in the electromagnetic environment specified below. - Page 28 80MHz-2.5GHz transmitter. Recommended 61000-4-3 Separation Distances d=1.2 d=1.2 80MHz-800MHz d=2.3 800MHz-2.5GHz Where: P—is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer d is the recommended separation distance in meters (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site...
-
Page 29: Recommended Separation Distances
reflection from structures, objects and people. * Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. -
Page 30: Parts List
the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. Note 1: From 80MHz to 800MHz, the higher frequency range applies. Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. - Page 31 Jiangsu Konsung Bio-Medical Science And Technology Co., Ltd. Address: NO.8, Shengchang West Road, Danyang Development Zone, Jiangsu Province, 212300, P.R. China Tel:86-511-86375968 WhatsApp: 0086-18952012596 mail: info@konsung.com Website: www.konsungmedical.com Website: www.konsung.com...
