Summary of Contents for APM 3DLinkPro

  • Page 2: Table Of Contents

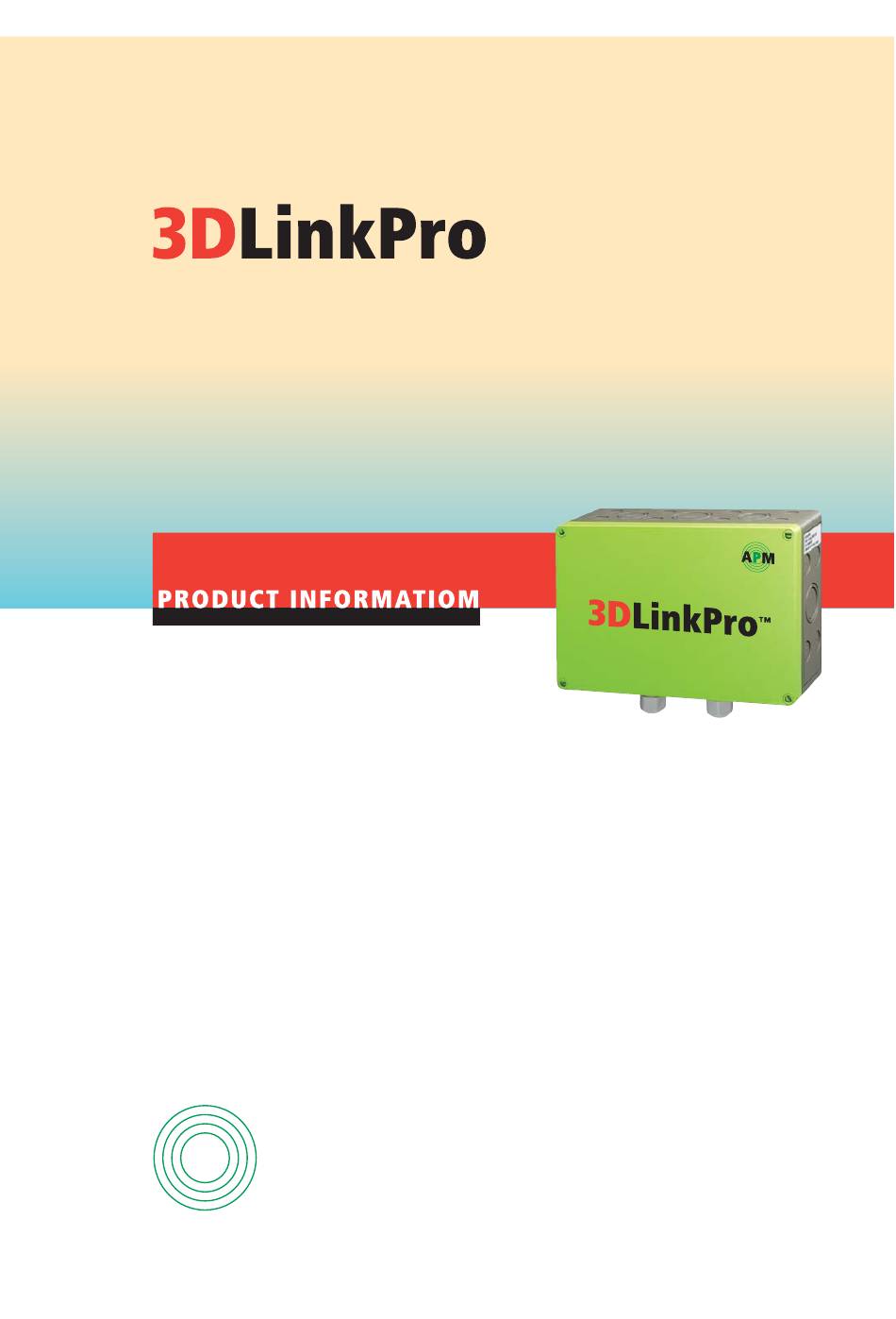

    APM 3DLinkPro Product Information Manual © 2007 APM Automation Solutions Ltd. All rights reserved. Information in this document is subject to change without notice. APM Automation Solutions Ltd., APM 3DLevelScanner and APM 3DLinkPro are trademarks of APM Automation Solutions Ltd.

  • Page 3: Product Description

    Product Description Principle Function The APM 3DLinkPro is used for easy bi-directional transfer of data between the APM 3DLevelScanner and a remote computer/system Such data can be 4…20 mA signals, HART commands or proprietary data for different purposes such as software upgrades.
  • Page 4 "APM 3DLevelScanner S" to the more accurate "APM 3DLevelScanner M". When using the APM 3DLinkPro it is only a matter of deciding to upgrade – the process itself only requires a click of a button and the unit has been upgraded.

  • Page 5: Type Overview

    The product is designed for wall mounting. By means of the supplied adjusting plugs, the instrument can be easily and quickly attached to any wall or ceiling surface. Connecting to voltage supply APM 3DLinkPro Product Information Manual © 2007 APM Automation Solutions Ltd. All rights reserved.

  • Page 6: Preparing For Connection - Note On Safety Instructions

    If the APM 3DLinkPro is being installed after the APM 3DLevelScanner unit has been installed or along with it and next to it then the voltage line to the APM 3DLevelScanner can be used to "feed" the APM 3DLinkPro as they have exactly the same limitation...

  • Page 7: Connecting Cable

    3DLevelScnner. 2. Remove the cable from the 3DLeveScanner through the gland 3. Insert the cable through the left gland of the APM 3DLinkPro 4. Connect the wires to sockets "3" and "4" according to the wiring diagram, above.

  • Page 8: Connecting The Outputs Of The Apm 3Dlinkpro Back To The Apm 3Dlevelscanner

    3DLinkPro back to the APM 3DLevelScanner Connect two wires to sockets "7" and "8” for the power supply of the APM 3DLevelScanner and two wires to sockets "9" and "10" for the 4…20mA/HART communication of the APM 3DLevelScanner according to the diagram below.

  • Page 9: Operation Overview

    Getting connected and Parameter adjustment with 3DLevel Manger The APM 3DLinkPro does not need to be adjusted. The APM 3DLevelScanner can be adjusted using the APM 3DLinkPro by a windows PC running APM 3DLevel Manager software connected to a local GSM unit.

  • Page 10: Disconnecting

    1. Choose the COM port of the computer to which the GSM is connected 2. Check the box "Use Modem" 3. Enter the number of the SIM card in the APM 3DLinkPro (the GSM box connected to the electronic card) 4. Press "Connect" button 5.

  • Page 11: Technical Data

    Ambient, storage and transport temperature: -30 … +80 °C (-22 … +176 °F) Protection IP66 Electromechanical Data Cable entry/plug: 2 x cable entry M20x1.5 (cable- 5…9mm) ∅ Dimensions 250X180X90 mm APM 3DLinkPro Product Information Manual © 2007 APM Automation Solutions Ltd. All rights reserved.

  • Page 12: Product Code

    Product Code • GSM-A-0907-AP – Remote APM 3DLinkPro (connected to the APM 3DLevelScanner) • GSM-A-0907-AP-C – APM 3DLinkPro local unit (connected to the PC) APM 3DLinkPro Product Information Manual © 2007 APM Automation Solutions Ltd. All rights reserved.
