Ningbo R2DH2080-01 Installation & Operation Manual

2-door refrigerator and freezer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

2-door Refrigerator and Freezer

Installation &Operation Manual

PLEASE READ THIS MANUAL BEFORE USING THE PRODUCT AND

Ningbo Wanquan Electrical appliance Company

195#,Beixing road, Mazhu town,Yuyao county,

Ningbo city ,Zhejiang province, China.

SHIPPING DAMAGE

General . . . . . . . . . . . . . . . . . . . . . . . . 3

Apparent Loss or Damage . . . . . . . . . .3

KEEP IT FOR FUTURE REFERENCE

Table of Contents

Concealed Loss or Damage . . . . . . . . . 3

Location . . . . . . . . . . . . . . . . . . . . . . . . .3

PREPARATION OF CABINET FOR

OPERATION

1 / 15

Table of Contents

Need help?

Do you have a question about the R2DH2080-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ningbo R2DH2080-01

Page 1 2-door Refrigerator and Freezer Installation &Operation Manual PLEASE READ THIS MANUAL BEFORE USING THE PRODUCT AND KEEP IT FOR FUTURE REFERENCE Ningbo Wanquan Electrical appliance Company 195#,Beixing road, Mazhu town,Yuyao county, Ningbo city ,Zhejiang province, China. Table of Contents Concealed Loss or Damage ..3 SHIPPING DAMAGE Location .
Page 2: Table Of Contents
Removing Cabinet from Skid ..4 START UP / OPERATION Leveling Cabinet ....4 Electrical Supply ....8 Shelf lnstallation .
Page 3: Removing Cabinet From Skid
These merchandisers are designed for indoor operation with a recommended operating room ambient temperature of 75° F (24° C)/55% rh. Their performance is affected by store air currents when the doors are open. Do NOT allow air conditioning, electric fans, or open doors and windows to create air currents around these merchandisers nor should they be exposed to direct sunlight or other heat sources.
Page 4: Door Seal
L i g h t b o x S e r i a l p l a t e S h e l v e s Do o r Re s r s p a c e r F r o n t g r i l l Ad j u s t a b l e f o o t b o l t 2.3 Door seal (closing mechanisms).

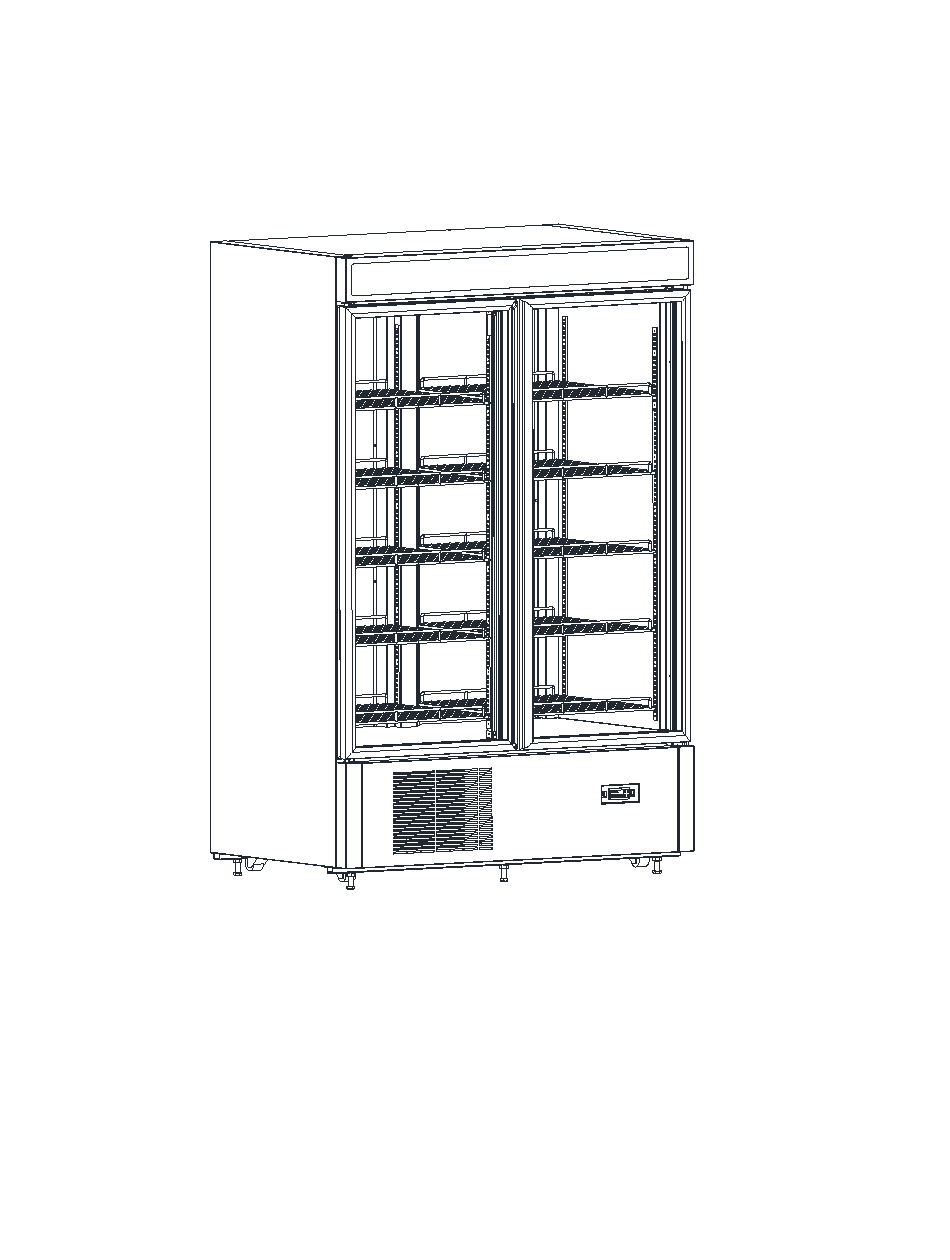

Page 5 52.8" [ 1340] 31.9" [ 809] Specification R2DH2080-01 F2DH2080-01 Model Classification Refrigerator Freezer 52 8/64 x 31 9/64 x 84 7/64 52 8/64 x 31 9/64 x 84 7/64 Overall size (W x D x H, (1340 x 809 x 2151 mm)
Page 6: Case Specification
Capacity(cuft) 44.2 44.2 Product Temperature，F ≤38 ≤0 Doors Qty of shelf Refrigerant R290, 4.23oz R290, 4.94oz Compressor (hp) 1/4 hp 3/4 hp Cooling Type Forced air Defrost Off cycle Electric heater Insulation Polyurethane) / Cyclopentane + CFC Free Temperature control type Auto Power supply 115V,60Hz,1phase...
Page 7: Refrigeration Circuit Schematic
It is recommended that a separate circuit be run for each cabinet to prevent the possibility of another appliance blowing a fuse, causing subsequent loss of product. Control setting, please see the appendices at the last page. The pre-set parameters in factory as below: 5.2 Controller parameter R2DH2080-01 F2DH2080-01 No. Parameter unit Value Value -2.2...
Page 8: Lighting
℉ ℉ hour minute minute minute minute minute 5.3 Lighting Interior light and light box are controlled by a manually operated switch. The switch is located near the controller. 5.4 Defrost Water Evaporation External drain plumbing is not required. Behind the case, there is a plastic soft pipe directing defrost water from the evaporator coil to water tray on condensing unit.
Page 9: Evaporator Housing
scrub with a solution of warm water and detergent. Care should be taken to keep solution away from wiring and electrical components. Check for loose items before replacing panel. 6.3 Evaporator Housing thermostat “OFF” position disconnects the condensing unit only. The evaporator fan motor will be energized until the unit is disconnected from the main power source.
Page 10 6.4.1 Electrical Schematic for Freezer F2DH2080-01 Electrical schematic with controller XR06CX Load Switch Blown01 Blown03 Blown05 115V 60Hz Fuse Blue02 Blown23 Light Switch Door Switch1 Relay2 Relay1 Door Switch2 9 10 11 12 Compressor Dixell-XR06CX LED1 LED2 Evaporator Fan M2/3 Condenser Fan Relay1 Relay2...
Page 11 Load Switch Blown01 Blown03 Blown05 115V 60Hz Fuse Blue02 Blown23 Light Switch Door Switch1 Relay2 Relay1 Door Switch2 Carel Electronic Controller IR33 Compressor LED1 LED2 Condenser Fan Relay2 Relay1 6.4.2 Electrical Schematic for Refrigerator R2DH2080-01 11 / 15...
Page 12 Load Switch Blown01 Blown03 Blown05 115V 60Hz Fuse Blue02 Light Switch Relay Dixell-XR04CX LED1 LED2 Compressor Evaporator Fan Condenser Fan M2/3/4 Relay 12 / 15...
Page 13: Warranty
7. Warranty This warranty is made to the original user at the original installation site and is not transferable. Wanquan merchandisers are warranted to be free from defect in material and workmanship under normal use and service for a period of one (1) year from the date of original installation (not to exceed fifteen (15) months from the date of shipment for the factory).
Page 14 2. For any repair or replacements made without the written consent of Wanquan, or when the equipment is installed or operated in a manner contrary to the printed instructions covering installation and service which accompanied such equipment; 3. For any damages, delays, or losses, direct or consequential which may arise in connection with such equipment or part thereof;...
Page 15 9. The appliance shall be disconnected from its power source during cleaning or maintenance and when replacing parts. 10. The A-weighted emission sound pressure level is below 70Db(A). 11. Max. loading of shelves: 195.3kg/m²，the deformation ＜1.04cm/m. 12. Inspections and maintenance are required once a year. 13.
