Summary of Contents for Jorvet J0453

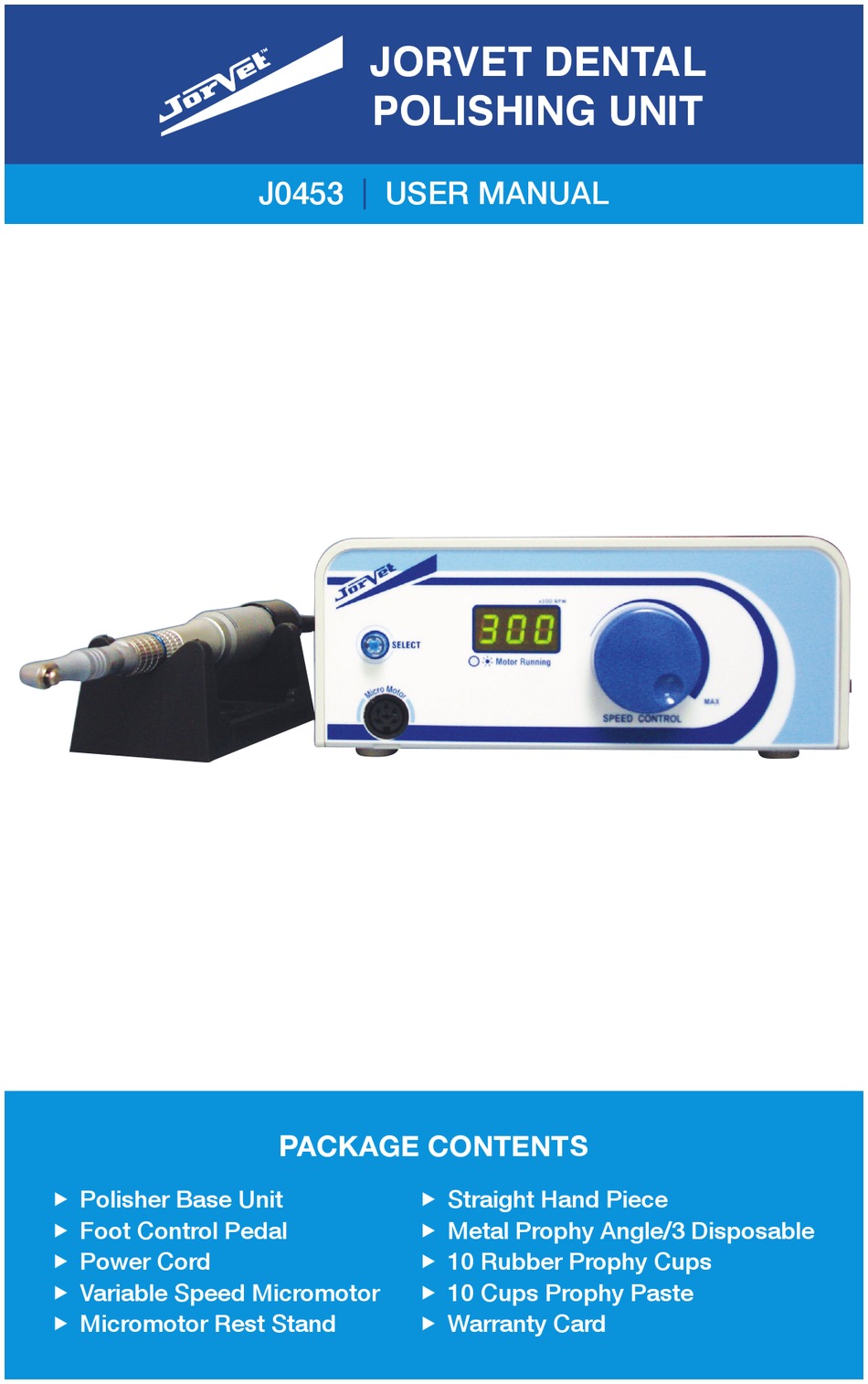

- Page 1 JORVET DENTAL POLISHING UNIT J0453 USER MANUAL PACKAGE CONTENTS Polisher Base Unit Straight Hand Piece Foot Control Pedal Metal Prophy Angle/3 Disposable Power Cord 10 Rubber Prophy Cups Variable Speed Micromotor 10 Cups Prophy Paste Micromotor Rest Stand Warranty Card...
-
Page 3: Table Of Contents
Technical Specs Optional Accessories Thank you for using our JorVet J0453 Pro Scale Polisher/Variable Speed Micromotor. We want you to get the most out of the machine and to have your experience in using it proceed with ease. Detailed instructions are provided on how to correctly use it and how to take full advantage of all operations and functions. - Page 4 OVERVIEW Before using the Polisher Unit, please carefully read this User Manual. The manual contains installation procedures and operational tips. Important Notes! AC power cord must be grounded with this equipment. This unit should be powered from a separate wall outlet with grounding point. Attention! Avoid use of this machine around Pacemakers.
-
Page 5: Note Before Using
KEEP AWAY FROM WATER THIS SIDE UP Before Starting The Unit Check the JorVet J0453 and make sure both Power and Digital Display are off when the switch is off. Plug the unit into a grounded outlet. Connect the micromotor. -
Page 6: Control Panel Functions
CONTROL PANEL FUNCTIONS CONTROL PANEL FUNCTIONS FRONT Select Button LED Display - x100rpm Turns unit On/Off Indicates motor running and speed Micromotor Outlet Speed Control Connects to micromotor cord Increases/Decreases speed BACK Forward/Reverse Switch AC Input Micromotor forward or reverse function Connects to electric cord Foot Pedal Outlet Fuse Box... -
Page 7: First Time Set-Up
FIRST TIME SET-UP Connect The power cord to the unit. Plug the cord into an electrical outlet. The foot pedal switch to the back of the unit into the receptacle. Place the pedal on the floor. The micromotor to the back of the unit into receptacle on the far left-hand side of the unit. -
Page 8: To Polish After Cleaning/Scaling
TO POLISH AFTER CLEANING AND SCALING Flip On/Off toggle switch Push the power switch so that the LED is lit. Check that your foot is connected. Make sure the cord does not twist where it connects to the foot pedal. Twisting of the electrical cord may cause the foot pedal to stick on open. -
Page 9: Polishing Tips
POLISHING TIPS The concept of polishing has changed over the years. It is now suggested that only the area with heavy plaque or stain accumulation be polished. These are called plaque retentive areas. Other areas that do not accumulate plaque can be affected deleteriously by unnecessary heavy polishing. -
Page 10: Regular Maintenance
When moving the main unit, handle with care. Before leaving the room, make sure the AC power is turned off. TECHNICAL SPECS The J0453 unit is designed and manufactured to meet the most demanding environment. Specifications are listed below. Classifications... -
Page 11: Optional Accessories
OPTIONAL ACCESSORIES The following dental items are also available from Jorgensen Laboratories. DESCRIPTION J0452D4 Portable Water Tank J0452D5 Polishing Paste - 100 Cups J0452D3 Metal Prophy Angle J0452D6 Rubber Prophy Cups - 100 J0452D7 Diamond Cutting Disc J0452D8M Diamond Dental Burrs - 7 J0452D9 Contra Angle J0452D10... - Page 12 Professional Veterinary Equipment Supplier Jorgensen Laboratories, Inc. | Loveland, CO 80538 800.525.5614 | fax 970.663.5042 | www.jorvet.com | info@jorvet.com...
