  • Page 1 Remote control Box...
  • Page 2: Table Of Contents

    Contents 1.0 Introduction…………………………………………………………..3 1.1 Features……………………………………………………….…...3 2.0 Device Overview……………………………….……………..……3 2.1 Hardware Application …………………………………...….4 3.0 Product Guides…………………………….…………………..……5 3.1 Wi-Fi search mode……….…………….…………….……….5 3.1.1 IOS user…………………………………………..……………….6 3.1.2 Android user………………..……..……………………………7 3.2 Account Activate mode………….…………….……………9 3.3 Normal mode………………….…………….…………………11 4.0 Instruction information………………………..………………13 4.1 Disable device……………………………………….…………13 4.2 Key-in………………………………………………………….…..14 4.3 Key out…………………………………………………………….16 4.4 Free play………………………………………………………….17 4.5 Clean current record……………………………………….19...
  • Page 3: Introduction

    1.0 Introduction This product is connected between the coin selector and the vending machine. It’s easy to install instead of modifying system and program , the remote control box has some function which can recode all bargain, paying by app of phone, and adjust point from machine include claw machine, washing machine, dryer, electric massage chair...
  • Page 4: Hardware Application

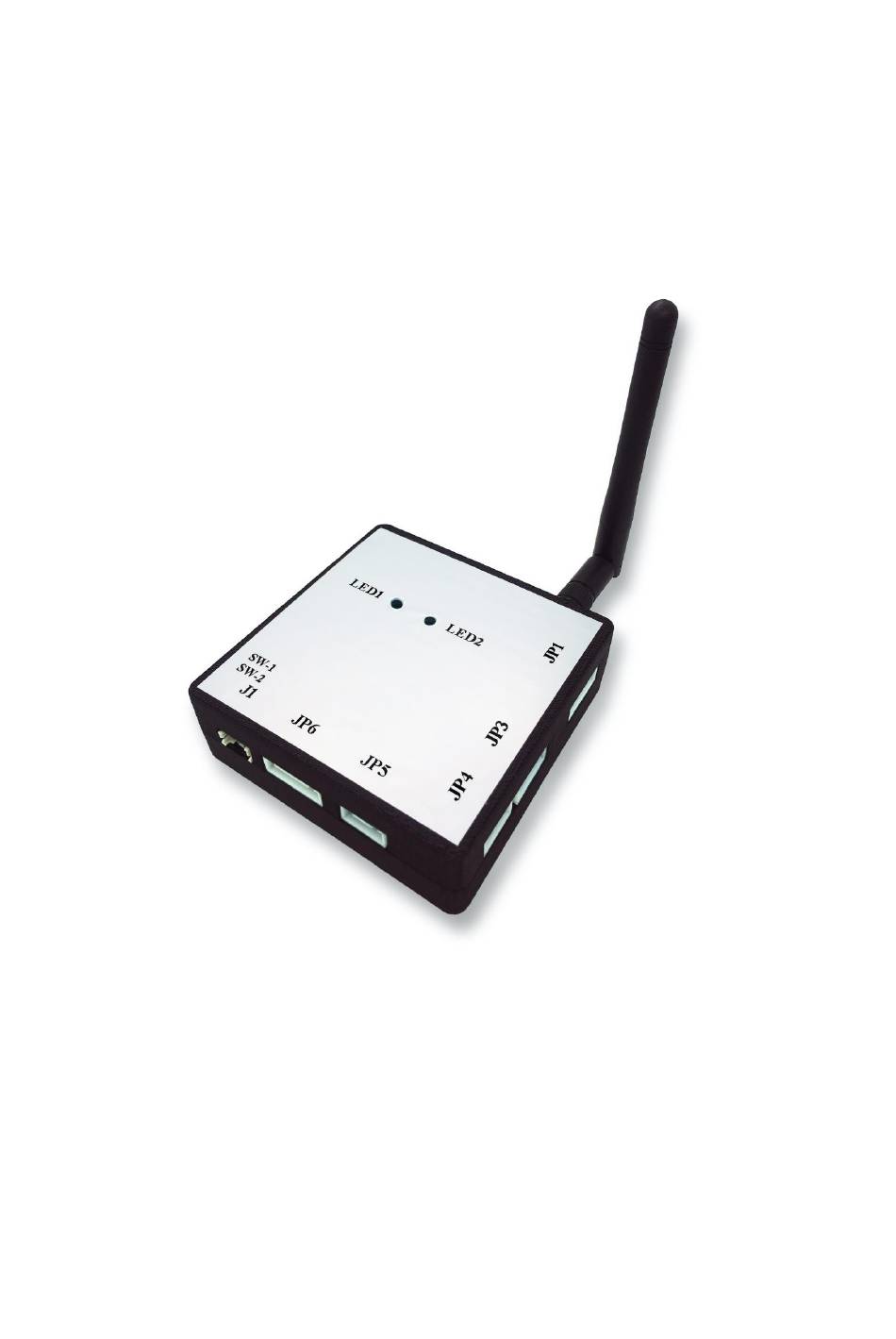

    2.1 Hardware Application 2.1.0 Switch: Setup mode. 2.1.1 JP1 port l: It connects with gamble device counter. 2.1.2 JP3 port : It connect with Hopper 2.1.3 JP4 port: It connects power and coin/bill signal output.
  • Page 5: Product Guides

    2.1.4 JP5 port: It connects with coin selector. 2.1.5 JP6 port: It connects with bill validator. 3.0 Product Guides Remote control box has three modes: 1. WIFI search mode. 2. Device activate mode. 3. Normal mode. First time setup, please follow. Setup flow: WIFI search mode->...
  • Page 6: Ios User

    Step2. Turn on (press) switch 1 Step3. Turn Power. (LED Blue flash fast) Step4. Connect your smartphone to the WIFI spot you want the device to use. (Step for both Android and IOS users) 3.1.1 IOS users: Go to the App store and type keyword “IoT Maker”. Download the IOT Smartconfig APP as picture Launch the Smartconfig APP, it will automatically detect the WIFI spot your cellphone is using and key in the WIFI password.
  • Page 7: Android User

    Wait 10~20 second after submit, setting successful as blow. Continue step 6. 3.1.2 Android users: Go to the App store and type keyword “smartconfig”. Download the Smartconfig APP as below. Press the APP for 5 seconds and select App info. Go to App permission and turn on location as below.
  • Page 8 smartphone. Key in password and confirm. Wait 10~30 secs; when the setting is successful, it will give a message of a successful connection. Step6. When the unit has successfully connected to the WIFI; the LED Blue will alternately flash. Step7. Disconnect the power cable. Note: if first time setting, please follow the next steps:...
  • Page 9: Account Activate Mode

    3.2 Device activate mode: Step1. While the unit is not connected to power, press switch 2 on the device to ON. Step2. Connect the power cable. (LED Blue will flash fast) Step3. Please open your web browser and log in to: http://211.75.174.168/etopvme Step4.
  • Page 10 Step6. Please select Then click , key in your device number and select Confirm While the unit is being registered, the website will show the following: WIFI box LED Blue alternately flash after activate successful or fail and status show activate as below. ...
  • Page 11: Normal Mode

     A failed connection will show the following message: Please retry from step 6. Step7. Plug the power cable one more time. Note: if first time setting, please continue with the next steps. 3.3 Normal mode Step1. Switch 1 and Switch 2 on the unit turn to OFF. Step2.
  • Page 12 Click “Edit”. Key in your values. Coin value: How much per pulse as coin selector. Banknote value: How much per pulse as bill validator. Key in pulse type and width. First selection: NO/NC Second selection: L/H Third selection: H/L Click to save data after fill in value.
  • Page 13: Instruction Information

    4.0 Instruction information There are 5 Instruction to remote control box  Disable device  Key-in  Key out  Free play  Clean current recode 4.1. Disable device: Step1. While the unit is not connected to power, please turn on switch 2. Step2.
  • Page 14: Key-In

    And select “click”. Click on the “Disable device” option. Please confirm the device name and click “Save”. 4.2. Key in: Function gives point to machine. It is only useful for gamble machine. Step1. Connect counter to JP1. Step2. Action in normal mode Step3.Please log in to: http://211.75.174.168/etopvme Step4.
  • Page 15 Please click “Operation management”. And click “Click”. Click “Key in” Select key in amount and save...
  • Page 16: Key Out

    4.3. Key out: Clean counter point in gamble machine. Step1. Connect counter to JP1. Step2. Action in normal mode Step3.Please log in to: http://211.75.174.168/etopvme Step4. Please Key in account and password and login. Please click “Operation management”. And click “Click”.
  • Page 17: Free Play

    Click “Key Out” Confirm name and click “Save” 4.4. Free play: Give point to machine. Step1. Connect counter to JP4. Step2. Action in normal mode Step3.Please log in to: http://211.75.174.168/etopvme Step4. Please Key in account and password and login. Please click “Operation management”.
  • Page 18 And click “Click”. Click “Free play” Select free play amount and click “Save”.
  • Page 19: Clean Current Record

    4.5. Clean current records: Step1. Action in normal mode Step2.Please log in to: http://211.75.174.168/etopvme Step3. Please Key in account and password and login. Please click “Operation management”. And click “Click”.
  • Page 20 Click “Clean current records” Confirm the unit name and click “Save”.
  • Page 21: Troubleshooting

    5.0 Troubleshooting LED Red: power status. LED Blue: signal status.
