KAMEHA KA073 User Manual

· IMPORTANT SAFETY INSTRUCTIONS
Please read below safety instructions carefully before installation and
operation:
1. Please pay attention to all the warnings and hints on this device.
2. Do not expose this unit to rain, moisture and liquid.
3. Do not hot plug when it is working.
4. Use DC12V power supply only. Make sure specification
matched if using adapters not supplied by factor y.
· INTRODUCTION

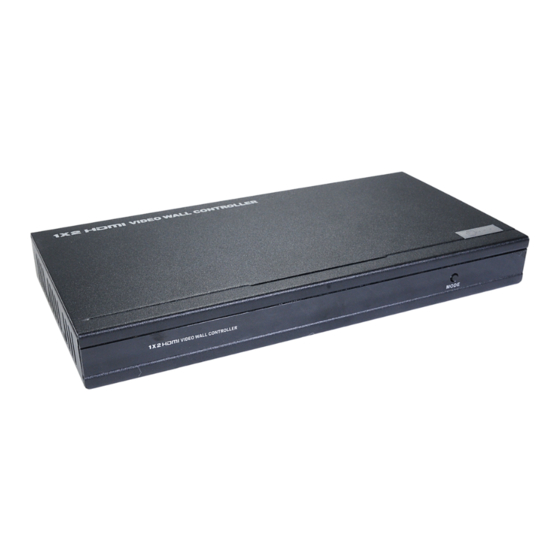

This video wall controller is a perfect solution for 1x2 large video wall,
supports 1xHDMI source input and 2xHDMI outputs to two monitors.
It supports HDCP-compliant HDMI signal source up to full HD
1080p@60Hz. It s ideal for video wall display applications in clubs, '
exhibitions, building lobbies and other similar venues.
· FEATURES
1. With 2 HDMI outputs,divides the input video into two parts
and extend to two same size displays.
2. Resolution supported is up to 1080p@60Hz.
3. Support video wall screen mode and clone screen mode.
4. With 3.5mm audio output port, access to audio equipment easily.
5. Wall-mountable design, easy for installation.
6. Switch output modes with mode button.
7. Plug and play.
· PACKAGE CONTENTS
video wall controller power adapter
unit ×1pcs （12V2A）×1pcs
user manual ×1pcs
· INSTALLATION REQUIREMENTS
1. Source device:
Source device with HDMI output, such as set-top boxes, computers,
video recorders,etc.
2. Display device:
Display device with HDMI input, such as television, projector,
HD display,etc.
3. Cable:
HDMI cables

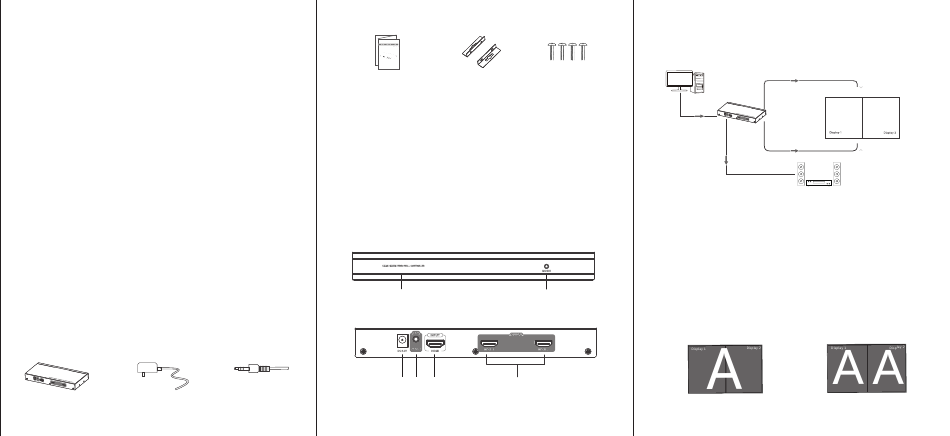

· PANEL DESCRIPTION
1. Front panel：
①
① Power indicator
2. Back panel：
① ②
① DC input（DC12V）
3.5mm jack audio
② Audio output
cables ×1pcs
Wall-mount kit x2pcs Screws*4pcs
②
② Mode button
③ ④
③ HDMI signal input
④ HDMI signal outputs
· CONNECTION AND OPERATION
1. Connection
HDMI output
PC
Video wall controller
HDMI Input
HDMI output
Audio output
2. Connection instruction
1 ) Connect the HDMI output port on the video source device to the
HDMI input port on the video wall controller via HDMI cable.
2 ) Connect the audio output port to an audio player through an
audio cable.
3 ) Connect power supplies of all devices, and video wall
controller works.
3. Display Modes
Video Wall Screen Mode
Left-Right 1×2 Configuration
A
Clone Screen Mode
Left-Right 1×2 Configuration
