LEGACY HOME C1910167 Assembly Instructions Manual

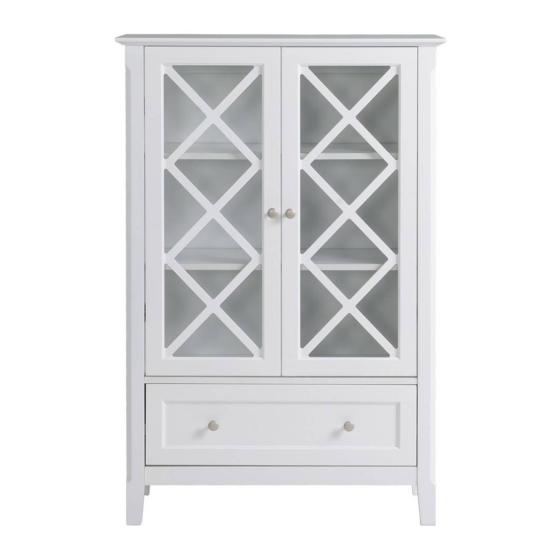

2-door/1-drawer cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
L
H
EGACY
OME
F
D
URNISHINGS &
ECOR
Assembly Instructions
Instrucciones de Ensamblaje
120mns
SAVE THESE INSTRUCTIONS
GUARDE ESTAS INSTRUCCIONES
Do Not Return!
No Vuelvas!
Email or call customer service for help first.
Envie correo electrónico o llame al servicio para
obtener ayuda primero.
1-214-758-1098/Toll free: 1-883-907-1099
Monday-Friday 9am - 4pm CST
customer@legacyhfd.com
2-Door/1-Drawer Cabinet
Gabinete de 2 puertas / 1 cajón
C1910167/C2010010

Advertisement

loading
Need help?

Need help?

Do you have a question about the C1910167 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGACY HOME C1910167

Summary of Contents for LEGACY HOME C1910167

  • Page 1 120mns 2-Door/1-Drawer Cabinet Gabinete de 2 puertas / 1 cajón SAVE THESE INSTRUCTIONS GUARDE ESTAS INSTRUCCIONES C1910167/C2010010 Email or call customer service for help first. Envie correo electrónico o llame al servicio para Do Not Return! obtener ayuda primero. No Vuelvas!
  • Page 2 EGACY URNISHINGS & ECOR Helpful advice Consejos útiles 1. Follow the assembly instructions carefully. 1. Siga a tentamente las instrucciones de montaje. 2. Check to ensure all parts, fasteners and hardware 2. Asegúrese de que la caja contiene todas las piezas, are present.
  • Page 3 EGACY URNISHINGS & ECOR rdwar Hardware/Lista de materiales ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY Ø7.8×30mm Perno madera Φ7.8×30 mm Wood dowel Φ7.8×20 mm Wood dowel Ø7.8×20mm Perno madera M6×30 mm Tornillo hexagonal M6×30 mm Bolt Shelf support Perno Sticker Pegatina Φ3×12 mm Screw Φ3×12 mm Tornillo...
  • Page 4 EGACY URNISHINGS & ECOR Hardware/Lista de materiales ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY Bisagra Hinge Φ4×14 mm Screw Φ4×14 mm Tornillo Expansión de plástico Wall anchor Handle Tirador M4×30 mm Bolt M4×30 mm Tornillo Φ4×50 mm Screw Φ4×50 mm Tornillo Door stop Tope de puerta M4×18 mm Bolt M4×18 mm Tornillo...
  • Page 5 EGACY URNISHINGS & ECOR Hardware/Lista de materiales ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY Drawer connector Conector de plástico Φ4.7×12.5 mm Screw Φ4.7×12.5 mm Tornillo Φ3.5×12 mm Tornillo Φ3.5×12 mm Screw Φ3.8×35 mm Screw Φ3.8×35 mm Tornillo Wrench Llave Allen Note/Rema que/Nota El uso del tornillo incorrecto puede Using the wrong screw will cause provocar daños al producto.
  • Page 6 EGACY URNISHINGS & ECOR WARNING This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture ADVERTENCIA Este producto puede exponerlo a sustancias quím icas, incluyendo el formaldehído, el cual es conocido en el estado de California como causante de cáncer, defectos de nacimiento u otros daños reproductivos.
  • Page 7 EGACY URNISHINGS & ECOR Necessary tools/Herramientas necesarias Glue not enclosed (We recommend to apply some glue into holes before inserting wood dowels.) Colle non fournie (Nous vous recommandons d’appliquer quelques gouttes de colle dans les trous avant Glue not included ( We recommend to apply some glue into holes before inserting wood dowels .) d’y introduire les chevilles de bois.) Cola, no incluida (Le recomendamos colocarunas gotas de cola en los ori cios antes de insertar las clavijas de madera.) madera.)
  • Page 8 EGACY URNISHINGS & ECOR Attention: In order to help your assembly, do not lock the screw tightly until you have assembled all the other parts. Atención: Con el fin de facilitar su montaje, no apretar el tornillo firmemente hasta que haya ensamblad o todas las otras partes.
  • Page 9 EGACY URNISHINGS & ECOR Step 3/Paso 3 Insert 6 wood dowels (A) into the holes on the edge of back rail (8). Inserte 6 Pernos maderas (A) en la Barra posterior (8). A x 6 Step 4/Paso 4 Insert 2 wood dowels (A) into gable left (2). Attach glide (Q) to gable left (2) with 3 screws (R). Inserte 2 Pernos maderas (A) en la Tablero izquierdo (2) Fije un Planeador (Q) con 3 Tornillos (R).
  • Page 10 EGACY URNISHINGS & ECOR Step 5/Paso 5 Insert 4 wood dowels (B) into xed shelf (5). Inserte 4 Pernos maderas (B) en el Estante jo (5). B x 4 Step 6/Paso 6 Connect xed shelf (5), bottom (6) and gable left (2) with 4 bolts (C), then tighten with wrench (W). Attach back rail (8) to gable left (2) .
  • Page 11 EGACY URNISHINGS & ECOR Step 7/Paso 7 Insert 2 wood dowels (A) into gable right (3). Attach glide (Q) to gable right (3) with 3 screws (R). Inserte 2 Pernos maderas (A) en la Tablero derecho (3) Fije un Planeador (Q) con 3 Tornillos (R). A x 2 Q x 1 R x 3...
  • Page 12 EGACY URNISHINGS & ECOR Step 9/Paso 9 Hammer 1 door stop (M) into the holes on the top (1). Inserte el Tope de puerta (M) en el Panel superior (1). M x 1 Step 10/Paso 10 Insert top (1) into stand assembly with 4 bolts (P), then tighten with wrench (W). Conecte el Panel superior (1) al ensamblaje con 4 Tornillos hexagonales (P), cerrarlos bien con la Llave Allen (W).
  • Page 13 EGACY URNISHINGS & ECOR Step 11/Paso 11 Insert back panel (9) into the assembly with 24 screws (F). Conecte el Tablero posterior (9) al ensamblaje con 24 Tornillos (F). ° F x 24 Step 12 /Paso 12 Insert 2 hinges (G) into door panel (10) with 4 screws (H). Align 1 handle (J) with the hole on the door panel (10), secure with 1 screw (K).
  • Page 14 EGACY URNISHINGS & ECOR Step 13/Paso 13 Insert hinges (G) on the door panel (10) into the stand assembly, then secure with 16 screws (H). Fije las Bisagras (G) en el ensamblaje con 16 Tornillos (H). H x 16 Step 14 /Paso 14 Insert 8 shelf supports (D) into the holes on the gables (2) (3), then put 2 adjustable shelves (4) into the assembly.
  • Page 15 EGACY URNISHINGS & ECOR Step 15/Paso 15 Attach glide (R) to drawer side left (11) with 2 screws (D). Attach glide (R) to drawer side right (12) with 2 screws (D). Fije los Planeadores en el Tablero izquierdo de cajón (11) e Tablero derecho de cajón (12) con 4 Tornillos (R). Q x 2 R x 4 Step 16 /Paso 16...
  • Page 16 EGACY URNISHINGS & ECOR Step 17/Paso 17 Align 2 handles (J) with the holes on the drawer front (16), secure with 2 bolts (N). Slide drawer bottom (15) into the drawer. Inserte 2 Tiradores (J) en el Tablero frontal de cajón (16) con 2 Tornillos (N), Inserte el Tablero inferior de cajón (15) en el ensamblaje.
  • Page 17 EGACY URNISHINGS & ECOR Step 19/Paso 19 Put the drawer into the cabinet. Inserte el cajón.
  • Page 18 EGACY URNISHINGS & ECOR Step 20/Paso 20 Insert 2 wall anchors (I) into the holes on the wall. Insert 2 screws (L) into back rail (8) to secure the cabinet to the wall. Perfore 2 agujeros en la pared, Golpee 2 Expansiones de plástico (I) en los agujeros de la pared, bloquee la Barra posterior (8) al pared con 2 Tornillos (L).
  • Page 19 EGACY URNISHINGS & ECOR Step 21/Paso 21 Cover visible screw holes on back rail (8) with 2 stickers (E). Utilice 2 Pegatinas (E) para cubrar los agujeros de la Barra posterior (8). E x 2...
  • Page 20 EGACY URNISHINGS & ECOR Maximum weight capacities/Capacidades de carga máxima 22.7 kg 50 lbs. 13.6 kg 30 lbs. 13.6 kg 30 lbs. 13.6 kg 30 lbs. 5 kg 11 lbs. WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items.

  • Page 21: Year Warranty

    EGACY URNISHINGS & ECOR 1 YEAR WARRANTY BASIC WARRANTY: Homestar® furniture is warranted by Homestar Corporation (Homestar) to the original purchaser for a period of one year from the date of purchase, subject to the following conditions and limitations. 1. Install and operate this item in accordance with the Installation and 6.
