Summary of Contents for GASLOCK Indy-Cator

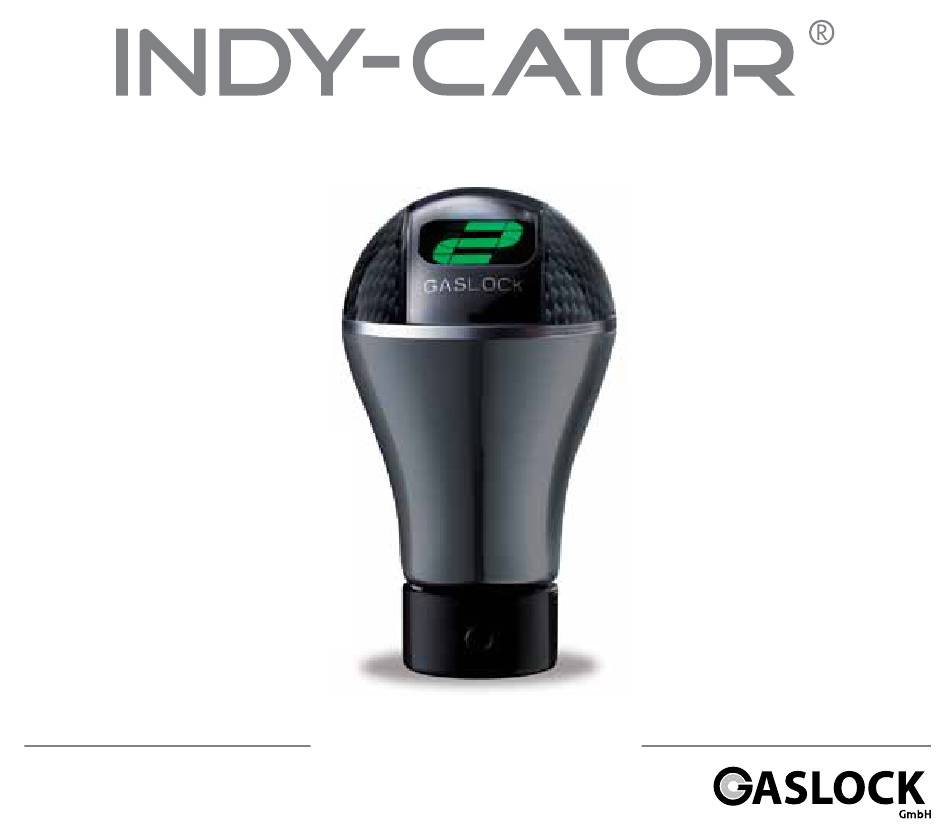

- Page 1 Digital Gear Display Operating Instructions...
-
Page 2: Table Of Contents
Table of Contents Page 3 ............ About INDY-CATOR Page 4 ............ Package content Page 5 ............ Gear lever knob installation Page 6 ............ Programming Page 8 ............ Troubleshooting... -
Page 3: About Indy-Cator
About INDY-CATOR First, we would like to explain to you the function If the transmissions are not displayed correctly of the digital gear display: for some reason, please repeat programming It works according to the principle of forming the with the motor/gear at operational temperature. -
Page 4: Package Content
Package content Gear lever knob with retention ring (1x) Data cable (1x) Reference box with power supply lines (1x) Hexagon socket wrench (1x ) Grub screws – long and short (2x, one each) Cable terminal clamps (2x) Cable ties (1x) Fig. -
Page 5: Gear Lever Knob Installation
Gear lever knob installation 1.1.1 Connect the plus line from the ignition and Disassembly of the original gear lever knob and ground line to the power supply lines of the gear boot: Install LCD gear lever knob and gear reference box (red to 12 Volt from the ignition, boot (the data cable at the gear lever knob must black to ground). -
Page 6: Programming
Programming (Programmes individual gear lever positions of the reference box once. Display now indicates a trans- your car – for gear recognition and display) verse bar: 2.1.1 2.3.1 The vehicle should be placed on a surface that Fastening the reference box: is as level as possible before programming. - Page 7 (if the vehicle only has 4 gears – ignore display and leave it in 4th gear) Your Indy-Cator gear display is now programmed > please switch to sixth gear (if the vehicle and ready for operation. Please switch off the does not have any 6th gear –...
-
Page 8: Troubleshooting
Troubleshooting If re-programming is required, press the button of the reference box until „C“ is displayed and start again as described on page 6. If the previously selected colour is to be retained, please confirm it with the button without moving the reference box again. Display only shows running ring Gears not programmed Programme gears...
