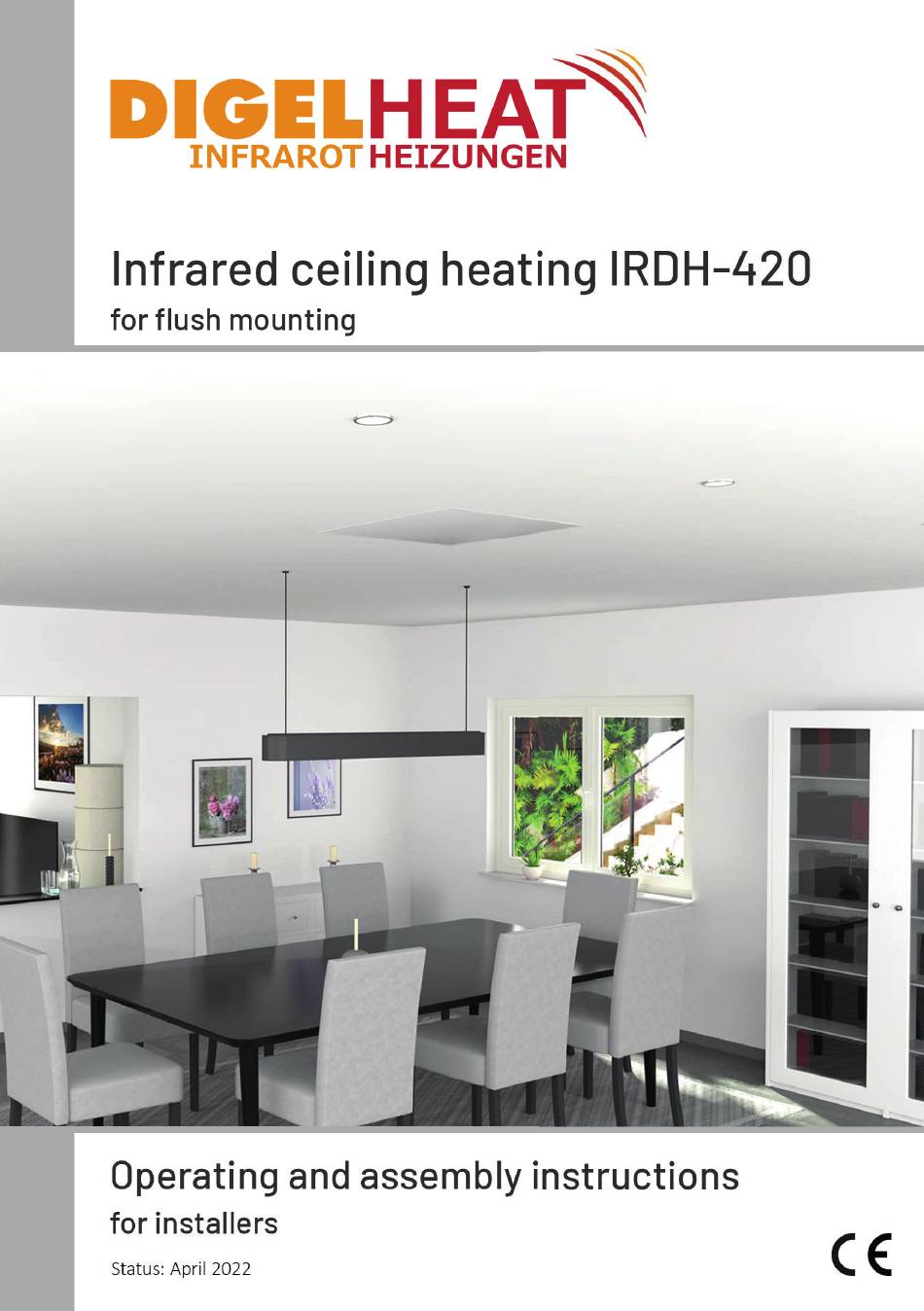

Summary of Contents for DIGEL HEAT IRDH-420
- Page 2 In addition, DIGEL HEAT reserves the right to revise this publication at any time without notice to any party.
-
Page 3: Special Note
Special note The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 1.2 Symbols, type of danger Symbol Type of danger Violation Burn (burn, scald) 1.3 Signal words SIGNAL WORD Meaning Instructions which, if not followed, will result in serious injury or death. Instructions which, if not followed, will result in serious injury or death. Notes which, if not followed, may result in moderate or minor injury.
- Page 5 1.6 Units of measurement Unless otherwise stated, all dimensions are in centimeters. 2. Safety 2.1 Intended use The device is designed for heating cold zones in living and working areas, as well as in cashier areas or offi ces. The device is intended for use in domestic and commercial environments that need to be heated.
-
Page 6: Device Description
CAUTION Burning • Only operate the device under supervision. • Operate the device via remote or automatic switch-on by upstream components, e.g. room temperature controller, timer. CAUTION Burning If the surface of the heater shows signs of damage, you must no longer operate the device. CAUTION: Do not cover the device! 2.3 General notes •... - Page 7 4. Mounting There are two different mounting types depending on the application and structural conditions. WARNUNG Injury Before mounting, please check the stability of the mounting base and then select the screws (not included). Please check the thermal stability of the building structure (this must be >60°C) and then select the distance and mounting method of the heating element.
- Page 8 3. Slide the heating element into the mounting frame until the protruding tabs are locked in place. Please pay attention to the locking of the tabs. Bitte achten Sie darauf, dass die Lasche min. 2,3 mm vom Heizelement absteht!
-
Page 9: Cleaning, Care And Maintenance
5. Settings Material damage Check the device carefully for damage before use! Observe the type plate. The specifi ed voltage must match the mains voltage. During initial start-up, there may be a temporary development of odors. 6. Cleaning, care and maintenance •... -
Page 10: Technical Data
8. Technical data Parameter Unit Designation Product name DIGEL HEAT Infrared heaters Designation Infrared heating Model identification IRDH-420 Fuel type Electric Type of control of the heat Electronic control of the heat supply with supply DIGEL-HEAT control units or comparable control units which are compliant with the current Ecodesign Directive (EU 2015/1188). -
Page 11: Customer Service And Warranty
Customer service and warranty Accessibility Should a malfunction ever occur with one of our products, we will of course be at your side with help and advice. Digel Sticktech GmbH u. Co. KG Hermann-Burkhardt-Str. 7 72793 Pfullingen Tel. 07121 - 97 - 676 80 Fax. - Page 12 may not make any claims under this warranty for indirect or consequential damage caused by the device, in particular for compensation for damage occurring outside the device. Legal claims of the customer against us or against third parties remain unaffected. Warranty period For devices used in private households, the warranty period is 60 months;...
-
Page 13: Environment And Recycling
Environment and recycling Disposal of transport and sales packaging material To ensure that your device arrives undamaged, we have packed it carefully. Please help to protect the environment and dispose of the packaging material of the device properly. Together with wholesalers and specialist trades / retailers in Germany, we are participating in an effective take-back and disposal concept for the environmentally friendly reprocessing of packaging.
