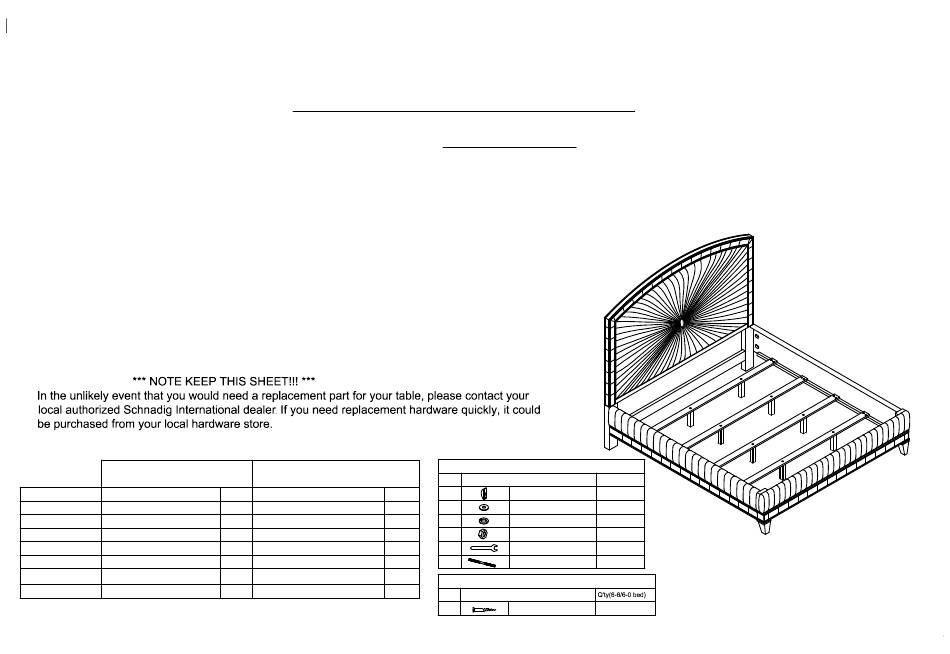

MYSTIQUE B033 Quick Manual

ASSEMBLY INSTRUCTIONS
TWO PEOPLE AND PHILP'S SCREW DRIVE RREQUIRED
UNPACK ALL PARTS AND CHECK THEM AGAINST PARTS LIST ON THIS INSTRUCTION SHEET BEFORE DISCARDING PACKING AND CARTONING!!
1) Connect the side rail and headboard/footboard by bolt (F).
2) Assemble the side rail and headboard/footboard using the curved washer (A),
flat washer (B), lock washer (C), and nut (D) tighten by wrench (E), as shown in Diagram A.
3) Assemble the support leg on the slat, as shown in Diagram B.
4) Mount the assembled support slats (done in step 3) onto the cleat of side rails with screws (G).
Use a Phillips Head Screwdriver to tighten screws, as shown in Diagram C.
B033-350H/350F/300R
6-6 BED
Part Description Part No.
B033-350H
Headboard (1)
Footboard (2) B033-350F
B033-300R
Side rail (3)
Slat (4)
B033-350F-3067
Support leg(5)
B033-350F-30305
RTA Hardware(6) B033-350F-3001
RTA Hardware(7) B033-300R-3001
B033-350H-350F-300R-400R
B033-350H/350F/400R
6-0 BED
QTY Part No. QTY
B033-350H
1 1
B033-350F
1 1
B033-400R
2 2
B033-350F-3067
4 4
B033-350F-30305
8 8
B033-350F-3001
1 1
B033-400R-3001
1 1
MYSTIQUE
RTA Hardware(7)
NO. Hardware List Q'ty
Curved Washer(5/16"Dia) 8
A
Flat Washer(5/16"Dia) 8
B
Lock Washer 8
C
Nut
8
D
Wrench 1
E
8
F Bolt
RTA Hardware(6)
NO. Hardware List
Screw(4.2x32) 16
G
1 of 2
Created on:2015 -2-4
