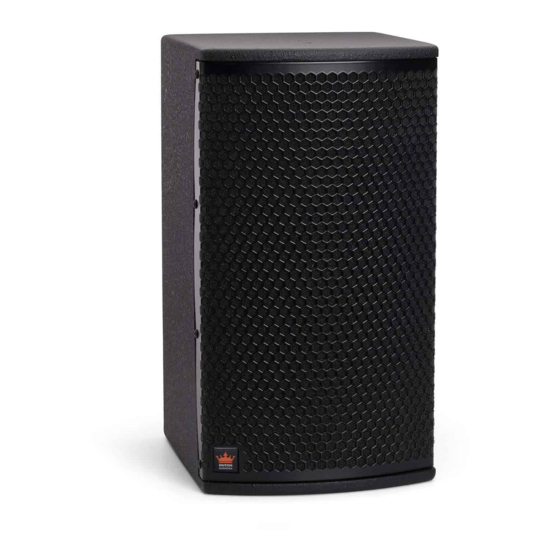

XS-12i
2-Way Install Monitor
XS-12i is a versatile, high-performance full range 2-way passive
wedged monitor conceived for professional environments where
portable sound reinforcement is required, delivering a superior audio
reproduction in a convinient format.
XS-12i HF assembly couples a 3˝ compression driver into common
XS Series birch plywood axisymmetric horn with DUTCH ACOUSTICS's
proprietary design and a premium European, dedicated-design passive
crossover filter provides a smooth, natural transition intro the MLF 12˝
woofer and summing up into a full-range superior audio playback along
the whole usable frequency range.
Like all DUTCH ACOUSTICS models, XS-12i is built with 15 and 18 mm
birch plywood, Aquaforce waterproof paint coating and a high quality
steel grille, creating a rugged, durable and stylish loudspeaker.
The 60° wedged cabinet allows not only to be used as FOH main
system in small venues, bars and AV applications and as a stage
monitor but to seamlessly fit into any wall mount fixed installation.
XS-12i integrates a bottom Pole Mount 35 mm socket to be configured
on LF Series subwoofers for install applications in venues and clubs.
INSTALLATION ACCESSORIES
XS-12i is fitted with threaded M8 inserts for hung permanent
installations and (optional) dedicated U-Brackets and Wall-Mount
accessories are available for seamless integration in any space.
Examples showing
installation options for XS-12i
Quick Start Guide
1
Advertisement
Table of Contents
Summary of Contents for DUTCH XS-12i
- Page 1 Like all DUTCH ACOUSTICS models, XS-12i is built with 15 and 18 mm birch plywood, Aquaforce waterproof paint coating and a high quality steel grille, creating a rugged, durable and stylish loudspeaker.
- Page 2 Installation U-Bracket (UB-XS12i-H) Accessories Wall-Mount Accessory (WM-01) IEC filtered pink noise with a 6dB crest factor, 2 hours. Frequency range values for recommended factory presets. TECHNICAL DRAWINGS XS-12i INPUT NL-4 PINOUT LINK Full Range Signal Parallel Signal Designed, engineered and...
- Page 3 • DUTCH ACOUSTICS declines any responsibility from misuse that may result in malfunction or damage of the equipment. WARRANTY • All DUTCH ACOUSTICS products are guaranteed against any manufacturing defect for a period of 5 years from date of purchase for acoustical parts and 2 years from date of purchase for electronic devices.
- Page 4 DUTCH ACOUSTICS is always in pursuit of better performance, greater reliability and design features. Technical specifications and minor finish details may vary without notice in order to improve our products.
